Gateway to the Nucleus

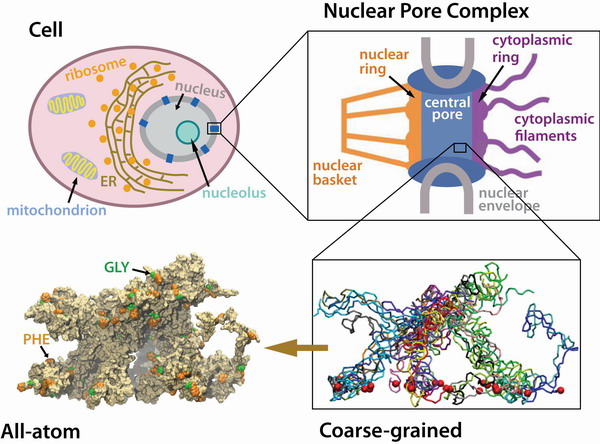

Nuclear Pore Complex Schematic cross-section of the nuclear pore complex showing major components

The nucleus of the cell is centrally important to an organism. It serves to store and organize genetic information, the atomic blueprint for the organism, while separating and protecting this very important information from the host of other cellular components. While the nucleus requires this protective isolation, it also needs to communicate with the rest of the cell, exchanging proteins and RNA, for a variety of nuclear and cytoplasmic processes which act in concert. The nuclear pore complex (NPC), perhaps the largest protein complex in the cell, is responsible for the protected exchange of components between the nucleus and cytoplasm and for preventing the transport of material not destined to cross the nuclear envelope.

Much is known about the behemoth complex from a variety of experimental techniques, but its vast size has made pointed study quite difficult. The NPC has a mass of ~125 megaDaltons (MDa) in vertebrates ([JCB 110:883]) and 66 MDa in yeast ([JCB 123:771]). It has an octagonally symmetric cylindrical structure around the axis of transport and a planar pseudo-symmetry through the nuclear envelope. The yeast NPC has been well characterized and is thought to contain an upper limit of 30 distinct types of proteins (termed nucleoporins, or nups) ([JCB 148:635]). The number is low and rather surprising considering that the ribosome, another macromolecular protein complex, contains 75 different types of proteins and weighs only 4 MDa. The body of the vertebrate NPC is approximately 145 nm in diameter and 80 nm length across the nuclear envelope. The yeast NPC is smaller at approximately 96 nm in diameter and 35 nm in length ([Genome Biology 2:reviews0007]). The NPC is truly large, especially when compared to other proteins or protein complexes in the cell. For comparison, a tetramer of aquaporin proteins measures only 6.5 nm across!

Nucleocytoplasmic Transport

Importin-β Importin-β (red) with cargo SREBP-2 fragment (blue) bound. Dual α-helical repeats (HEAT repeats), which comprise the structure of importin-β, are numbered.

The immense size of the NPC makes it difficult to study the system in detail both experimentally and computationally. However, a variety of experiments have elucidated many properties of the NPC and the transport process itself. They have described the macroscopic structure of the NPC as well as other features which provide the foundation for computational efforts to tackle the mechanism of nucleocytoplasmic transport.

Transport Cycle. In order to pass through the NPC, a large molecule (cargo) must associate with another protein called a transport receptor. These transport receptors then act as chaperones which shuttle cargo through the NPC. Recognition by the transport receptor takes place via a specific sequence of amino acids in the cargo protein. Besides cargo and transport receptors, the third ingredient necessary for nuclear transport is the signaling protein Ran, which hydrolyzes GTP. Ran is responsible for regulating the interaction of transport receptor and cargo ([Curr Biol 8:R368], [JBC 273:22857]), and RanGDP/RanGTP concentration gradients across the nuclear envelope drive nuclear import and export. Once a transport receptor identifies and binds its cargo, the transport complex may be imported or exported through the NPC. The mechanism by which the NPC selectively allows the transit of import or export complexes, while restricting the passage of inert species is poorly understood. However, nups with repeating amino acid sequences involving phenyalanine (F) and glycine (G) have been thoroughly implicated in the process.

FG-Nups. The NPC requires the presence of nups with FG sequence repeats. Many transport receptors, such as importin-β ([JBC 277:50597], [Cell 102:99], [JCB 162:391]) and NTF2 ([EMBO 21:2843], [JBC 275:5874], [JMB 293:579], [JMB 263:517]), have been shown to have hydrophobic binding sites on their surface for these "FG-Nups". Furthermore, the systematic deletion of the FG-repeat regions from FG-Nups in yeast NPCs has been shown to be lethal to yeast cells ([Nature Cell Biol 6:197]). The deletion of the FG-repeat region from one nup, nup116p, caused cell death on it own. FG-Nups have also been shown to form filaments ([J Cell Sci 107:631]) and colocalize with the filaments on both sides of the NPC. This evidence is consistent with the FG-Nups forming the filaments of the NPC, to which transport complexes may dock in the initial and final stages of transport. Finally, the FG-Nups have been shown to be highly disordered and contain almost no secondary structure ([PNAS 100:2450]). Localization of nups in the yeast NPC ([JCB 148:635]) shows that many of the FG-Nups occupy the central pore region of the NPC, through which the transport complexes pass. All this evidence points toward intimate interactions which must take place between FG-Nups and transport receptors to make transport successful.

The Selective Barrier. The gating mechanism of NPC selective transport remains elusive. Due to the disordered nature of FG-nups, a detailed understanding of the selective barrier is hard to be achived. Various models, such as the virtual-gate ([Trends Cell Biol 13:622]), the selective phase ([EMBO 20:1320]), and the reduction-of-dimensionality ([Traffic 6:421]) model, have been proposed to explain the NPC selective barrier and thus the transport. While FG-nups are beleived to form the selective barrier, the exact form of the barrier is still unkown.

Click the picture below for a movie (mpeg, 2.6M) showing peptides of amino acid sequence GLFG binding to the surface of importin-β.

GLFG-Importin-β binding

Discovering New Transport Receptor Interactions

In order to understand the mechanism of nucleocytoplasmic transport, one must understand the manner in which the NPC interacts with transport receptors. To examine these interactions, we have performed simulations of transport receptors in a solution containing short chains of FG-Nups. We have examined both the transport receptors importin-β and NTF2. During the course of any single simulation, FG-Nups were found to diffuse through the solution and bind to the surface of the transport receptor. Some of these interactions are likely to play a role in the in vivo recognition of the transport receptor by the NPC, and allowing it passage into or out of the nucleus.

To determine which of the several binding events occurring in a simulation are relevant, we also aligned several sequences of the transport receptor, with each set of aligned residues receiving a score based on conservation, evolutionary distance (see our tutorial on sequence alignment [pdf]), and hydrophobicity. Highly scoring residues were regarded as "hot spots" for the binding of FG-Nups on the surface of the transport receptor (see importin-β figure on the right).

Importin-β FG-Nup (yellow) binding to the surface of importin-β at a conserved binding "hot spot" (red) between HEAT repeats 6/7

Importin-β. We simulated a crystal structure ([Science 302:1571]) of the transport receptor importin-β with cargo, fully solvated and ionized, in the presence of FG-Nups, and performed a sequence alignment using eight importin-β species. Using this combination of molecular dynamics simulations and sequence alignment, we were able to confirm the existence of 3 out of 4 binding spots which were known previously from experiments ([JBC 277:50597], [Cell 102:99], [JCB 162:391]). Furthermore, we were able to identify six novel binding spots for FG-Nups which were previously unknown. (One of these spots was identified independently by experimentalists ([JMB 349:515]).) The simulations provide the first atomic-scale look at these novel binding spots for FG-Nups, and suggest that the extent of binding on the surface of importin-β is much larger than previously realized. The additional binding spots on the surface of importin-β suggest that the molecule has a more extensive ability to interact with the NPC than previously expected and also implies that other transport receptors similar in size harbor an equally large number of binding spots.

Importin-β schematic

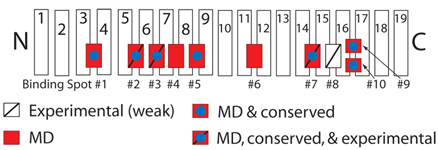

Schematic picture of importin-β showing binding spots for FG-Nups on its surface.
Those spots discovered experimentally are labeled with a slash, while those uncovered in our simulations are red.

NTF2 FG-Nup (yellow) binding to NTF2 at the spot where Ran binds upon import

NTF2. The transport receptor NTF2 is a vital in maintaining the proper balance of components across the nuclear envelope to drive nuclear import and export. The protein Ran is an enzyme which catalyzes the hydrolysis of GTP. The energy released upon hydrolysis is used to disassemble transport complexes which have been exported to the cytoplasm. Alternatively, the binding of RanGTP to transport receptors may initiate transport complex formation (for those to be exported) or initiate disassembly (for those which have been imported). Maintaining the proper balance of Ran across the nuclear envelope is crucial for nuclear transport. The reimporting of RanGDP to the nucleus, where it is charged to become RanGTP, is the job of NTF2.

We performed two sets of simulations on NTF2. One set involved NTF2 with RanGDP bound ([JMB 277(3):635]), as the transport complex would appear upon import into the nucleus. The other set involved the simulation of NTF2 alone ([EMBO 21(12):2843]), as the dimer would appear upon export. We simulated both complexes in a solution of short chains of FG-Nups for a total of over 250 ns to determine how and where the chains interacted with the NTF2 surface, and aligned the sequences of 15 distinct NTF2 species to support the simulation findings. Using the technique, we were able to verify the existence of four binding spots on the NTF2 surface already discovered via previous X-ray ([EMBO 21(12):2843]), mutational ([JMB 293(3):579], [J. Cell Biol. 151(2):321], [JBC 276(42):38820]), NMR ([JMB 333(3):587]), and computational data ([JMB 344(2):303]). We also discovered two novel binding spots, not yet discovered by experiment. All six binding spots broadly form a stripe across the surface of NTF2, as indicated in the figure below. The regularity and proximity of binding spots play a role in the identification of the NTF2 by NPC FG-Nups. Furthermore, the novel binding spots appear on a structurally variable part of the NTF2 surface, suggesting that these spots, along with the Ran binding spot, may play a role in tuning the transport of NTF2 for import or export.

NTF2 schematic
Schematic picture of NTF2 showing the six binding spots for FG-Nups on its surface.
Each NTF2 dimer is shown in a different shad of grey.

The existence of numerous binding spots on the surface of any transport receptor can serve to distinguish it from other proteins which reside around the nuclear envelope or it may enable the NPC to more finely tune the transport of cargo. Upon examination of a third transport receptor, Cse1p, the case becomes convincing for numerous binding spots on the transport receptor surface as a necessity for nuclear transport.

Cse1p binding; Two FG-Nups (yellow) binding to the surface of Cse1p at a conserved binding spot (red) between HEAT repeats 12/13/14

Cse1p. Cse1p is a yeast transport receptor which functions as the Kap60p exporter. (Cse1p is known as CAS in vertebrates and Kap60p is importin-α) ([], [], [], []). The transport receptor recycles Kap60p back to the cytoplasm after it assists in nuclear import as an adaptor for Kap95p (importin-β). The crystal structure of Cse1p is available in complex with Kap60p and RanGTP ([]) and in cargo-free form ([]). Like importin-β, Cse1p is a right-handed superhelical protein. It is composed of 20 HEAT repeats. Kap60p is comprised primarily of 10 Armadillo (ARM) repeats.

We performed four molecular dynamics simulations on the Cse1p:Kap60p:RanGTP export complex, similar to those performed on importin-β and NTF2, to study interactions between FG-nup peptides and the surface of the transport complex. The simulations revealed 14 binding spots for FG-repeat peptides on the surface of Cse1p and five binding spots on the surface of Kap60p. They are particularly valuable in this case because little study has been devoted to detailing the interactions of FG-Nups with Cse1p compared to the large body of evidence uncovered for importin-β and NTF2. We found binding of FG-Nups to be concentrated between HEAT repeats 10-16, with eight of the 14 binding spots appearing in that region and one or more binding spots for each crevice between repeats. Binding of FG-nup peptides to Kap60p, on the other hand, appears to be much less extensive and sparser than on the Cse1p surface at only five spots on the Kap60p surface, indicating a much lesser concentration in binding spots than seen on the Cse1p surface. The similarities in FG-Nup binding between Cse1p and the transport receptors importin-β and NTF2 and the differences in binding of Kap60p, an inert macromolecule that cannot traverse the nuclear pore alone, provide a unique insight into how the nuclear pore likely recognizes a transport receptor (and cargo) destined for nuclear import, while preventing the transport of other molecules.

Comparing the binding spots on the surfaces of the three transport receptors with that of Kap60p, reveals a striking difference, not simply in the number of binding spots, but most notably in their orientation on the surfaces of each protein. The relatively small amount of Kap60p binding spots yields a lower average binding spot density across the entire protein surface than across that of Cse1p, for example. Furthermore, the Kap60p binding spots are also spread widely across the protein's surface from ARM repeats 1-9, with no more than two binding spots clustered at short distances. The location of Cse1p binding spots, on the other hand, appears in three broader clusters across the surface, the most populated one near the beginning of the C-terminal half of the molecule: eight of the 14 Cse1p binding spots are located in this cluster between HEAT repeats 10-16. The binding spots in this cluster are separated from their neighboring binding spots by regular distances of ~16 Å (± 4 Å). Importin-β and NTF2 exhibit similar sets of concentrated binding spots on their surfaces.

The multitude of binding spots separated by regular and short distances on the surfaces of the Cse1p, importin-β, and NTF2 compared to that of Kap60p suggests that the NPC uses both binding spot number and proximity to determine whether a macromolecule (complex) is fit for transport. In distinguishing between legitimate transport receptors and inert molecules not destined to traverse the nuclear envelope alone, the NPC must utilize a mechanism which is capable of protecting against the random occurrence of a binding spot on the surface of an inert molecule that is capable of binding FG-nups. Indeed, any inert macromolecule may possess one or several hydrophobic depressions on its surface not explicitly for nuclear transport but which are capable of FG-nup binding nonetheless. The binding of a single FG-repeat, or even a small few, to the surface of a molecule is unlikely to render successful nuclear transport. The NPC may protect against these "random" binding spots by requiring a transport receptor to have several binding spots in close proximity on its surface. With numerous and close binding spots on a transport receptor's surface, the NPC may be able to bind multiple FG-repeats to the transport receptor simultaneously, ensuring a strong enough composite binding energy to enable nuclear transport. Furthermore, the regular spacing between binding spots may be coordinated with the regular spacing between FG- repeats within individual FG-nups. Both spacings may be tuned to allow the binding of FG-repeats to binding spots, while also allowing the energetically favorable adherence of FG-nup linker regions to the transport receptor surface. This regular and numerous binding of FG-nups may effectively serve as a robust means for the NPC to identify transport complexes among a host of inert molecules that may possess hydrophobic patches on their surfaces.

Click the picture below for a movie (mpeg, 4.5M) showing the location of FG-Nup binding spots on the sufaces of Cse1p and Kap60p.

Cse1p binding spots

Exploring the Structure of the Selective Barrier.

The NPC controls passage into and out of the nucleus through an amazing filter. Like an ordinary filter the NPC permits passage of small particles (biomolecules), but not of large particles (e.g., proteins). However, certain large particles, namely the transport receptors, can pass the NPC. For this purpose the NPC employes long "finger" proteins anchored on the NPC perimeter. The transport receptors apparently can intermittently widen the filter pores while other proteins cannot. To observe how this is achieved is difficult since the finger proteins are highly disordered. Molecular dynamics simulations may offer an answer, though, as they have been very successful in describing in structural and dynamic detail another disordered cellular system, lipid membranes. Accordingly, we have applied the molecular dynamics approach to study the transport-related structures and processes inside the NPC through the same methods earlier applied to lipid membrane processes, namely coarse-grained and atom level simulations. The key question we tried to answer was: what kind of structure do assemblies of finger proteins form and how do they relate to selective transport in the NPC.

Initial array
The initial array. Left: top view of the array. Only tetherring points are shown. Right: side view of the array. Each segment is depicted in a different color. Neighboring periodic cells are not shown.

Modeling the collective behavior of FG-nups. In our simulations we brought finger proteins together, namely FG-nups. These proteins are characterized through FG repeats. For isolated FG-nups we found that the proteins coil-up into a globular shape with most FG repeats hidden inside the globule to protect these hydrophobic groups from water. We then brought the FG-nups together at a density that corresponds to the FG-repeat density in the NPC central channel. For this purpose we tethered an array of stretched-out FG-nups (wild-type and mutant yeast nsp1) segments to a planar surface as shown in the figure and the movie. By combing coarse-grained (CG) and all-atom (AA) simulations, we were able to study over a time scale of microseconds how the stretched-out and initially separated FG-nups formed rapidly bundles of 2-6 proteins while collapsing into a brush-like system shown below. The bristles of the brush are bundles of FG-nups and have two key properties as shown below: (i) on their surface they are dotted with spots of FG pairs, that interact favorably with transport receptors (see above); (ii) the bristles are also interconnected, namely where finger proteins change from one bundle to another bundle, which they do with some frequency (see the figures and movies below). It appears then that the bristles of the nuclear pore filter form an energetically favorable environment (through their many FG-spots) for transport receptors and that the latter can tear a finger protein readily away from a bundle to form a wider space for passage. While segments individually simulated were seen to form globule-like dynamic structures, arrays of them formed bundle-based brush-like structures with a height much larger than the Rg of individually simulated segments.

periodic brush
An array of stretched out FG-nups coiled and shortened into a dynamic bundle-based brush-like structure. Movie 1 (mpg 8.7M) shows the formation process in more detail. Movie 2 (mpg 4.6M) and movie 3 (mpg 4.7M) show further detail of the resulting brush-like structure.

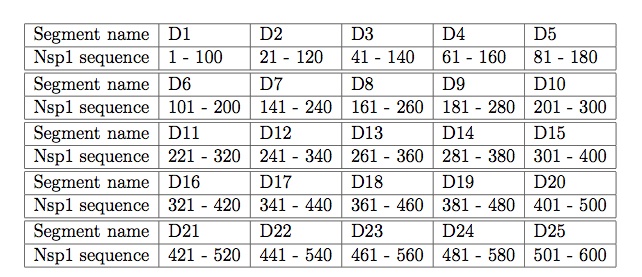

For our simulations the FG-repeat domain of nsp1 (1-600) was divided into 25 100 amino acid (aa) long segments (D1-D25, Table 1). The resulting 25 segments were then attached individually to a planar surface, forming a 5 X 5 array, to sample computationally a representative volume of the nsp1-filled NPC central channel. The tethering points were positioned so that the final, i.e., collapsed, system, adopted an FG-repeat density similar to that in NPC channels. Two 4 microseconds of coarse-grained (CG) simulations were then performed on the array system, each followed by a 10 ns all-atom (AA) simulation. While the CG simulations extend the timescale of our simulations to microseconds, allowing nsp1 segments to self-aggregate, the AA simulations refined the obtained CG structures. For comparison and inspired by experimental work ([Science 314:815]), an array was simulated with mutant FG-nups in which most PHEs of the wild-type were replaced by SERs. This simulation followed the same procedure, i.e., involved a combination of a 4 microsecond CG simulation and a subsequent 10 ns AA simulation. For further comparison, six representative FG-nup segments, also tethered to a planar surface, were studied individually by performing a one microsecond CG MD and subsequently a 30 ns AA simulation.

In case of individual FG-nups, the initially fully extended segments coiled and shortened very quickly into globule-like structures, with a radius of gyration (Rg) ranging from 13.7 Å to 20.0 Å for the six simulations. For both wild-type and mutant array simulations, the segments collapsed from their fully extended state, reaching a dynamic equilibrium very quickly. But instead of forming globule-like structures, the array in each simulation reached a dynamic bundle-based brush-like structure with a brush height much larger than the Rg value obtained in the individual segment simulations. The wild-type array reached a brush height of 77.1 Å for one simulation and 88.8 Å for the other simulation. The mutant array reached an even higher brush-like structure, with a height of 114.4 Å . Surface representations of both wild-type brush-like structures show many FG-repeats exposed on the brush-surface, offering a favorable environment for transport receptors.

periodic brush
One of the wild-type brush-like structures at the end of its 4 us CG simulation. Neighboring periodic cells are also shown.
Each segment is depicted in a different color and the constrained N-termini (tethering points) are represented by red spheres.

Surface representation One wild-type brush-like structure at the end of its AA simulation is shown in surface representation. FG-repeats are shown in green and orange.

To further identify how FG-repeats and the mutated SG-repeats were distributed in the final brush-like structures, the pair distribution function g(r) for the FG/SG-repeats was calculated by averaging over the last 2 ns of each array AA simulation. Although the two wild-type simulations reached quite different final conformations, the g(r) for both of them exhibit a similar FG-FG distance distribution at the first peak of g(r) located at r ~ 6Å . Further more, sampling the FG-FG distance with a cutoff of 8 A, the edge of the first peak, revealed that 41.5% of the FG-repeats were involved in close contact in one wild-type simulation and 37.5% in the other. In other words, more than half of the FG-repeats don't have any other FG-repeat neighboring within a distance of 8 Å . These FG-repeats should be free to bind to transport receptors. On the other hand, the g(r) of segments with (mutated) SG-repeats looks quite different from the wild-type ones. Instead of forming a main first peak, the corresponding g(r) is seen to split into three lower peaks. Further calculation showed that 31.1% SG-repeats were in close contact, i.e., less than in the wild-type case. Given that the mutant brush was also ~20 Å higher than the wild-type brushes, the FG-repeats seem to play a role in affecting the overall appearance of the brush-like structure, but apparently they do not dominate the formation of the brushes.

Pair distribution function Pair distribution function of the FG/SG-repeats of all three array simulations averaged over the last 2 ns of their AA simulations.

Two different mechanisms suggested among others for NPC gating, are the selective-phase model ([EMBO 20:1320]) and the virtual-gate model ([Trends Cell Biol 13:622]). The main difference between these models is the degree to which FG-FG binding is involved in forming the gating barrier in the NPC. Our simulations suggest that more than half of the FG-repeats of NPC finger proteins are actually exposed on the bundle surface and are not involved in contact with any other FG-repeats within 8 Å . Moreover, the simulation also suggest that the finger proteins adopt a brush-like structure. In this regard our results support the virtual-gate model. AFM experiments also suggest a similar brush-like behavior of a human FG-nup, namely Nup153 ([PNAS 103:9512], [Science 318:640]). The many exposed FG-repeats seen on the bundle surface are also consistent with the reduction-of-dimensionality model ([Traffic 6:421]), which proposes that transport receptors pass through the NPC by sliding along the FG-surface.

Our results are summarized in the figure below. Several movies demonstrate the collapse of the stretched out FG-nups and show in further detail the structures of the bundle-based brush-like structure suggested by our simulations.

An array of individually tethered nsp1 segments was constructed and simulated
to sample computationally a representative volume of the nsp1-filled NPC central channel
by combining coarse-grained and all-atom molecular dynamics.

Initial setup The initial setup of an NTF2-brush system; NTF2 dimers are shown in ice blue and the brush segments in orange.

Probing the brush-like structure. The resulted three brush-like structures (two wildtype brushes, one mutant brush) were then probed by a transport receptor (NTF2 dimer) and an inert molecule (exonuclease). The NTF2 dimer was taken from the final state of simulation EX1 in (), where 12 binding spots for FG-repeats were reported for one NTF2 dimer. Two NTF2 dimers were added to each of the three brush-like structures, with one placed on top of the brush and the other one embedded inside. The exonuclease molecule, taken from the protein data bank (PDB code: 1AKO), was first equilibrated in solution for 30 ns. Two equilibrated exonuclease molecules were then added to one of the two wildtype brush-like structures at similar positions as NTF2. Altogether, three NTF2 systems and one exonuclease system were built and simulated (Table 2).

In simulations of the two NTF2-wildtype brush systems (system "NTF2 + Wildtyep brush 1", and system "NTF2 + Wildtype brush 2"), the top-placed NTF2 dimers gradually entered the wildtype brushes. Starting completely outside, the top-placed NTF2 dimer in system "NTF2 + Wildtype brush 1" gradually entered the brush over the course of the 200 ns simulation, reaching a depth of 11 Å inside the brush; in the simulation of system "NTF2 + Wildtype brush 2", the top-placed NTF2 dimer, initially 16 Å inside, continued entering the brush and reached a depth of 25 Å averaged over the last 10 ns. In both simulations, many phenylalanines of the FG-repeats were seen bound to NTF2 dimers. As NTF2 dimers moved around during the simulations, most phenylalanines became unbound from the NTF2 surface, readjusted themseleves, and then became bound again to the same spot on NTF2 or shifted to a nearby spot.

On the contrary, the top-placed NTF2 dimer clearly encountered hindrance when trying to enter the mutant brush, in which all FG-repeats were mutated to SG-repeats. During the 180 ns simulation of system "NTF2 + Mutant brush", the top-placed NTF2 dimer did not enter the brush, fluctuating instead on top of the brush until the end of the simulation. During the 200 ns simulation of system "Exonuclease + Wildtype brush 1", the top-placed inert molecule (exonuclease) did not enter the wildtype brush either. Although placed at similar positions as NTF2 in system "NTF2 + Wildtype brush 1", the top-placed exonuclease molecule barely entered the brush, fluctuating mostly on top of the brush and reaching only a depth of 3 Å averaged over the last 10 ns of the simulation. The exonuclease molecules engaged, nevertheless, in interactions with the FG-repeats; many phenylalanines were actually found to bind to hydrophobic areas on their surface. However, binding to the top-placed exonuclease lasted only for short periods or involved only a small phenylalanine surface area.

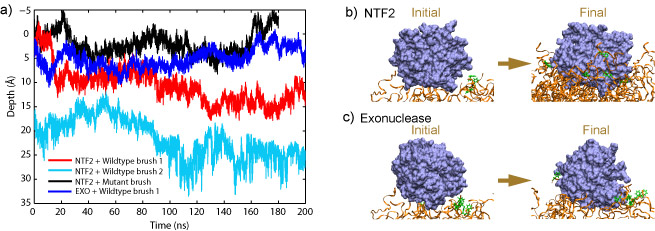

a) Depth of the top-placed molecules in all four simulations. The top surface
of each brush-like structure defines the zero penetration depth with the inside of the brush corresponding to positive and the outside to negative depth.
b) Starting completely outside the brush, about half of the NTF2 dimer has entered the brush at the end of the simulation (System "NTF2 + Wildtype brush 1").
c) Starting at a similar position as NTF2, the exonuclease molecule has barely entered the brush during the simulation (System "Exonuclease + Wildtype brush 1").

In summary, NTF2 dimers were seen to enter the wildtype brush-like structures made of native FG-nups, but not a brush made of mutant SG-nups. Clearly, FG-repeats assisted the NTF2 dimers to enter the brush. More importantly, the wildtype brush was seen to be able to distinguish between the transport receptor NTF2 and the inert molecule exonuclease at its surface. While top-placed NTF2 dimers penetrated significantly into the brush, the top-placed exonuclease hardly did.

Modeling central transport channel with full length FG-nups. Enjoying today in the form of petascale computers tremendously more computer power than was available to us previously we have performed for the present study microsecond-long simulations on various conformational ensembles of the 609-aa-long FG domain of Nsp1 (hence termed Nsp1-FG), a key nup in the NPC central channel. We studied, using CG MD simulations, the dynamics of Nsp1-FGs starting from three different initial states: tethered, straight-chain conformations in a ring-like arrangement (see the figure below (a)); tethered, random-chain conformations in a array-like arrangement (the figure below (b)); and untethered, random-chain conformations (the figure below (c)), simulating each system for 1 microsecond. We observed in all cases the formation of brush-like bundles linked through single Nsp1-FGs crossing between bundles (see Movies 7-12 for the dynamics and final structure of the simulation for the three ensembles respectively) . Nevertheless, the new MD simulations support the structural model as seen in our previous study, in which 100-aa-long fragments of Nsp1-FG form bundles linked through single proteins crossing between bundles, but reveals more physical characteristics and a high degree of heterogeneity of the model. On the other hand, a new finding of the current study is that frequency of crossings between bundles and bundle thickness depend on protein length, on the geometry of the simulated volume, on the degree of tethering, and, particularly, on the initial conformations of the proteins. A further key finding is that the FG motifs distributed in the cross-linking regions have highly accessible side groups that furnish potential binding epitopes for TFs to assist in cargo transport.

a) Initial and final configuration of simulated wild-type Nsp1s grafted to a gold ring.
Initially stretched Nsp1s collapse and form bundle-like structures after 1-microsecond simulation.
b) Initial and final configuration of a simulated array of wild-type Nsp1s grafted to a gold surface.
c) Initial and final configuration of simulated wild-type Nsp1s in a solvent bath.

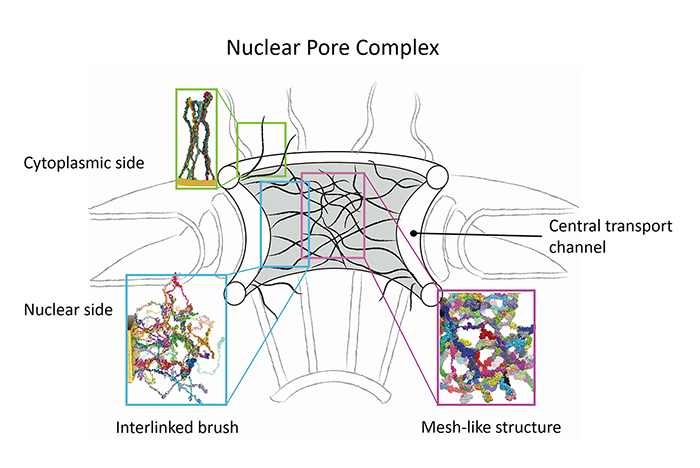

We model the structure of the entire transport channel of the NPC based on our simulation results. In our study, we did not simulate the entire region of the channel interior as this is computationally still too expensive presently. Instead, we simulated systems of Nsp1-FGs starting from different initial states and based on the results suggest a heterogenous model for the NPC central channel: (i) at the periphery, i.e., close to the scaffold, the FG nups are end-tethered to the scaffold through linker proteins; (ii) in the middle region, FG nups adopt natively disordered conformations filling up the central volume. The salient features of nups in a real NPC channel arise in our model through end-tethering of nups, protein density, random conformations for initial states, and a full-length real FG-nup found in the NPC, namely the Nsp1-FG domain. Therefore, we interpret our simulation results then to imply that the nups form different structures in different regions of the central channel (see the figure below). Our simulations suggest that the NPC central channel, near the periphery where tethering of nups is dominant, features brush-like moderately cross-linked bundles, but in the central region, where tethering loses its effect, features a sieve-like structure of bundles and frequent cross-links.

Schematic model for the structural assembly of nups in the NPC channel. The strands
in black represent bundles of two or more Nsp1 chains. The frequency of cross-linking
is higher in the central region and can be identified with the assembly of nups formed in
simulation of floating random structures into a sieve-like mesh; in the periphery brush-like
bundles with less cross-linking arise and the respective structure can be identified with the
ones developed in simulations of Nsp1 arranged in ring and array.

More Movies


Movie 1. The formation of a wild-type brush-like structure (wild-type1 mpg 8.7M).

The initially fully extended segments coiled and shortened quickly coming to a dynamic equilibrium. Each segment is depicted in a different color and the constrained N-termini (tethering points) are represented by red spheres. The formation of another wildtype brush-like structure and a mutant structure can also be found here: (wild-type2 mpg 9.2M), (mutant mpg 9.6M).

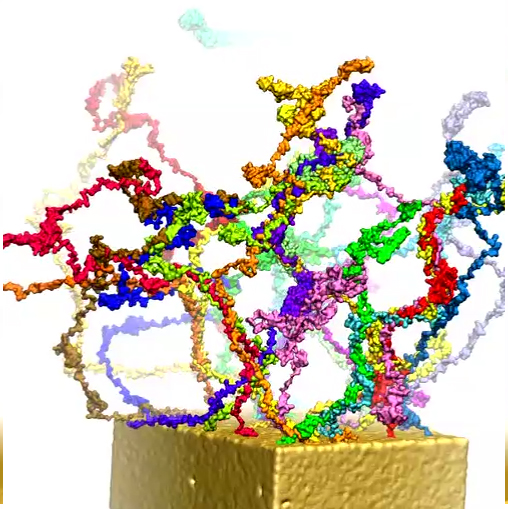

Movie 2. Detailed 360-degree view of the brush-like structure at the end of one wild-type array CG simulation (wild-type1 mpg 4.6M).

Each segment is shown in a different color and the constrained N-termini are depicted as red spheres. The segments form bundles of 2 - 6 individual segments; different bundles exhibit inter-crossing of nsp1 segments. Detailed 360-degree view of another wildtype brush-like structure and a mutant structure can also be found here: (wild-type2 mpg 5.2M), (mutant mpg 5.4M).

Movie 3. Detailed 360-degree view of one final wild-type AA brush-like structure in surface representation (wild-type1 mpg 4.7M).

The FG-repeats are colored with PHE in orange and GLY in green. Many FG-repeats are exposed on the surface of the structure, offering energetically favorable interaction spots to transport receptors. Detailed 360-degree view of another wildtype AA brush-like structure in surface representaion can also be found here: (wild-type2 mpg 5.3M).

Movie 4. Motion of the NTF2 placed on top of wildtype brush 1 (NTF2-wildtype1 mpg 6.88M).

The top-placed NTF2 is shown to gradually enter the wildtype brush. NTF2 is colored ice blue and the brush segments orange; phenylalanines that ever bound to the molecule during the course of the simulation are shown in green. Motion of the NTF2 placed on top of wildtype brush 2 can also be found here: (NTF2-wildtype2 mpg 9.5M).

Movie 5. Motion of the NTF2 placed on top of mutant brush (NTF2-mutant mpg 4.28M).

The top-placed NTF2 dimer did not enter the mutant brush during the course of the simulation. NTF2 is colored ice blue and the brush segments orange.

Movie 6. Motion of the exonuclease molecule placed on top of wildtype brush 1 (exonuclease-wildtype1 mpg 6.78M).

The top-placed exonuclease barely entered the wildtype brush during the course of the simulation. Exonuclease is colored ice blue and the brush segments orange; phenylalanines that ever bound to the molecule during the course of the simulation are shown in green.

Movie 7. (npc-ring-dynamic mp4).

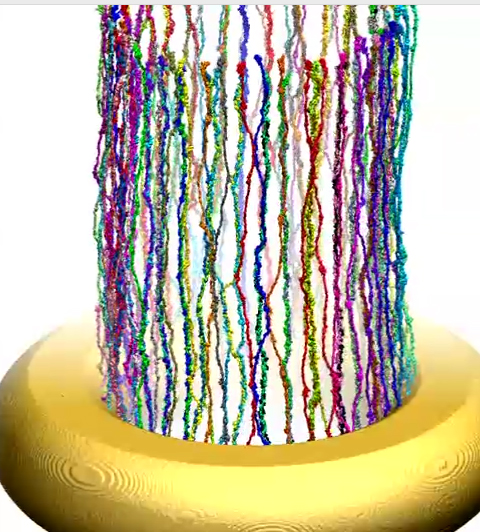

This video presents the dynamics of simulated wild-type Nsp1s grafted to a gold ring . The colors distinguish 120 wild-type Nsp1s grafted on the ring in three concentric rows. The video shows how during the simulation, the end-tethered, fully-extended, wild-type Nsp1s assume quickly random conformations and form brush-like bundles

Movie 8. (npc-ring-final mp4).

This video provides a three-dimensional view of the final conformation reached after 1 microsecond in simulation of ring. The video reveals the brush-like bundles formed by Nsp1 chains. One can also see that few of these bundles cross-link

Movie 9. (npc-array-dynamic mp4).

This video presents the dynamics of an array of wild-type Nsp1s grafted to a gold surface . The colors distinguish the 25 wild-type Nsp1s simulated. The video shows how during the simulation, the chains form brush-like structures. The bundles formed exhibit more cross-linking between themselves than seen in case of simulation of ring

Movie 10. (npc-array-final mp4).

This video provides a three-dimensional view of the final conformation reached after 1 microsecond in simulation of array. The video reveals the brush-like bundles formed by Nsp1 chains. One can also see that the bundles cross-link rather frequently

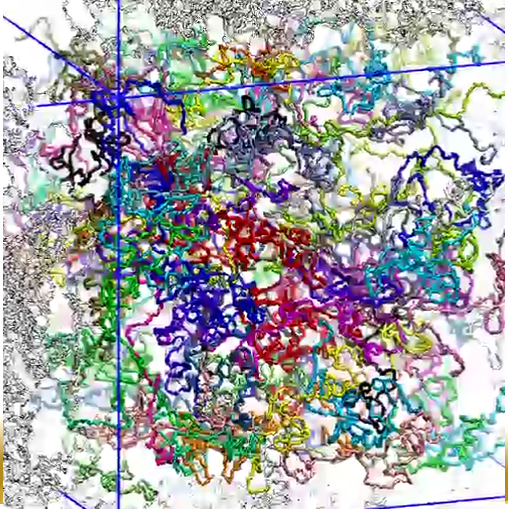

Movie 11. (npc-float-dynamic mp4).

This video shows the dynamics of simulated, initially random, wild-type Nsp1s, freely floating in a solvent bath (water and ions). The colors distinguish the 120 wild-type Nsp1s simulated. The video shows how during the simulations, the untethered, initially random chains form brush-like structures with a degree of cross-linking much higher than in case of simulations of ring and array

Movie 12. (npc-float-final mp4).

This video the three-dimensional view of final conformation reached after 1 microsecond in simulation of floating Nsp1.
