ComputeNonbondedSelf Class Reference

#include <ComputeNonbondedSelf.h>

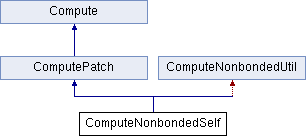

Inheritance diagram for ComputeNonbondedSelf:

ComputePatch ComputeNonbondedUtil Compute List of all members.

Public Member Functions

 ComputeNonbondedSelf (ComputeID c, PatchID pid, ComputeNonbondedWorkArrays *_workArrays, int minPartition=0, int maxPartition=1, int numPartitions=1)
virtual ~ComputeNonbondedSelf ()

Public Attributes

nonbonded params
GBISParamStruct gbisParams
BigReal reductionData [reductionDataSize]

Protected Member Functions

virtual void initialize ()
virtual int noWork ()
virtual void doForce (CompAtom *p, CompAtomExt *pExt, Results *r)

Protected Attributes

Box< Patch, CompAtom > * avgPositionBox
Box< Patch, CompAtom > * velocityBox
RealintRad
Box< Patch, Real > * intRadBox
Box< Patch, GBReal > * psiSumBox
Box< Patch, Real > * bornRadBox
Box< Patch, GBReal > * dEdaSumBox
Box< Patch, Real > * dHdrPrefixBox
Pairlists gbisStepPairlists [numGBISPairlists]
SubmitReductionreduction
SubmitReductionpressureProfileReduction
BigRealpressureProfileData
ComputeNonbondedWorkArrays
*const
workArrays
Pairlists pairlists
int pairlistsValid
BigReal pairlistTolerance
int minPart
int maxPart
int numParts

Static Protected Attributes

static const int numGBISPairlists = 4

Detailed Description

Copyright (c) 1995, 1996, 1997, 1998, 1999, 2000 by The Board of Trustees of the University of Illinois. All rights reserved.

Definition at line 13 of file ComputeNonbondedSelf.h.


Constructor & Destructor Documentation

ComputeNonbondedSelf::ComputeNonbondedSelf ( ComputeID  c,
PatchID  pid,
ComputeNonbondedWorkArrays _workArrays,
int  minPartition = 0,
int  maxPartition = 1,
int  numPartitions = 1
)

Definition at line 20 of file ComputeNonbondedSelf.C.

References Node::Object(), ReductionMgr::Object(), pairlistsValid, pairlistTolerance, Node::parameters, nonbonded::parameters, params, ComputeNonbondedUtil::pressureProfileAtomTypes, pressureProfileData, ComputeNonbondedUtil::pressureProfileOn, pressureProfileReduction, ComputeNonbondedUtil::pressureProfileSlabs, Node::rand, nonbonded::random, reduction, REDUCTIONS_BASIC, REDUCTIONS_PPROF_NONBONDED, Node::simParameters, nonbonded::simParameters, and ReductionMgr::willSubmit().

00023   : ComputePatch(c,pid), workArrays(_workArrays),
00024     minPart(minPartition), maxPart(maxPartition), numParts(numPartitions)
00025 {
00026   reduction = ReductionMgr::Object()->willSubmit(REDUCTIONS_BASIC);
00027   if (pressureProfileOn) {
00028     int n = pressureProfileAtomTypes;
00029     pressureProfileData = new BigReal[3*n*n*pressureProfileSlabs];
00030     pressureProfileReduction = ReductionMgr::Object()->willSubmit(
00031         REDUCTIONS_PPROF_NONBONDED, 3*pressureProfileSlabs*((n*(n+1))/2));
00032   } else {
00033     pressureProfileReduction = NULL;
00034     pressureProfileData = NULL;
00035   }
00036   pairlistsValid = 0;
00037   pairlistTolerance = 0.;
00038   params.simParameters = Node::Object()->simParameters;
00039   params.parameters = Node::Object()->parameters;
00040   params.random = Node::Object()->rand;
00041 }

ComputeNonbondedSelf::~ComputeNonbondedSelf (  )  [virtual]

Definition at line 61 of file ComputeNonbondedSelf.C.

References avgPositionBox, bornRadBox, dEdaSumBox, dHdrPrefixBox, intRadBox, ComputePatch::patch, pressureProfileData, pressureProfileReduction, psiSumBox, reduction, Patch::unregisterAvgPositionPickup(), Patch::unregisterBornRadPickup(), Patch::unregisterDEdaSumDeposit(), Patch::unregisterDHdrPrefixPickup(), Patch::unregisterIntRadPickup(), Patch::unregisterPsiSumDeposit(), Patch::unregisterVelocityPickup(), and velocityBox.

00062 {
00063   delete reduction;
00064   delete pressureProfileReduction;
00065   delete [] pressureProfileData;
00066   if (avgPositionBox != NULL) {
00067     patch->unregisterAvgPositionPickup(this,&avgPositionBox);
00068   }
00069   // BEGIN LA
00070   if (velocityBox != NULL) {
00071       patch->unregisterVelocityPickup(this,&velocityBox);
00072   }
00073   // END LA
00074
00075   if (psiSumBox != NULL)
00076   patch->unregisterPsiSumDeposit(this, &psiSumBox);
00077   if (intRadBox != NULL)
00078   patch->unregisterIntRadPickup(this, &intRadBox);
00079   if (bornRadBox != NULL)
00080   patch->unregisterBornRadPickup(this, &bornRadBox);
00081   if (dEdaSumBox != NULL)
00082   patch->unregisterDEdaSumDeposit(this, &dEdaSumBox);
00083   if (dHdrPrefixBox != NULL)
00084   patch->unregisterDHdrPrefixPickup(this, &dHdrPrefixBox);
00085 }


Member Function Documentation

void ComputeNonbondedSelf::doForce ( CompAtom p,
CompAtomExt pExt,
Results r
) [protected, virtual]

Implements ComputePatch.

Definition at line 142 of file ComputeNonbondedSelf.C.

References GBISParamStruct::a_cut, GBISParamStruct::alpha_max, avgPositionBox, GBISParamStruct::beta, GBISParamStruct::bornRad, bornRadBox, Lattice::c(), ComputeNonbondedUtil::calcFullSelf, ComputeNonbondedUtil::calcFullSelfEnergy, ComputeNonbondedUtil::calcGBIS(), ComputeNonbondedUtil::calcMergeSelf, ComputeNonbondedUtil::calcMergeSelfEnergy, ComputeNonbondedUtil::calcSelf, ComputeNonbondedUtil::calcSelfEnergy, ComputeNonbondedUtil::calcSlowSelf, ComputeNonbondedUtil::calcSlowSelfEnergy, Compute::cid, GBISParamStruct::cid, Box< Owner, Data >::close(), ComputeNonbondedUtil::commOnly, GBISParamStruct::cutoff, ComputeNonbondedUtil::cutoff, DebugM, GBISParamStruct::dEdaSum, dEdaSumBox, GBISParamStruct::delta, GBISParamStruct::dHdrPrefix, dHdrPrefixBox, GBISParamStruct::doEnergy, Flags::doEnergy, GBISParamStruct::doFullElectrostatics, Flags::doFullElectrostatics, GBISParamStruct::doGBIS, Flags::doGBIS, Flags::doLoweAndersen, nonbonded::doLoweAndersen, Flags::doMolly, GBISParamStruct::doSmoothing, GBISParamStruct::epsilon_p, GBISParamStruct::epsilon_s, Results::f, nonbonded::ff, Patch::flags, GBISParamStruct::fsMax, nonbonded::fullf, GBISParamStruct::gamma, GBISParamStruct::gbInterEnergy, gbisParams, GBISParamStruct::gbisPhase, Compute::gbisPhase, gbisStepPairlists, GBISParamStruct::gbisStepPairlists, GBISParamStruct::gbSelfEnergy, Patch::getPatchID(), nonbonded::groupplcutoff, if(), GBISParamStruct::intRad, intRadBox, SubmitReduction::item(), GBISParamStruct::kappa, Patch::lattice, Flags::maxAtomMovement, Flags::maxForceMerged, GBISParamStruct::maxGroupRadius, Flags::maxGroupRadius, maxPart, nonbonded::maxPart, minPart, nonbonded::minPart, NAMD_die(), nonbonded::numAtoms, ComputePatch::numAtoms, numGBISPairlists, numParts, nonbonded::numParts, GBISParamStruct::numPatches, Node::Object(), nonbonded::offset, nonbonded::offset_f, Box< Owner, Data >::open(), Lattice::origin(), ComputePatch::p, nonbonded::p, pairlists, nonbonded::pairlists, pairlistsValid, Flags::pairlistTolerance, pairlistTolerance, ComputeNonbondedUtil::pairlistWarningIndex, params, ComputePatch::patch, GBISParamStruct::patchID, ComputePatch::pExt, nonbonded::pExt, nonbonded::plcutoff, ComputeNonbondedUtil::pressureProfileAtomTypes, pressureProfileData, ComputeNonbondedUtil::pressureProfileMin, ComputeNonbondedUtil::pressureProfileOn, pressureProfileReduction, nonbonded::pressureProfileReduction, ComputeNonbondedUtil::pressureProfileSlabs, ComputeNonbondedUtil::pressureProfileThickness, GBISParamStruct::psiSum, psiSumBox, ComputePatch::r, reduction, nonbonded::reduction, REDUCTION_ELECT_ENERGY, reductionData, ComputeNonbondedUtil::reductionDataSize, GBISParamStruct::rho_0, Flags::savePairlists, nonbonded::savePairlists, Compute::sequence(), GBISParamStruct::sequence, Node::simParameters, simParams, Results::slow, Flags::step, nonbonded::step, SubmitReduction::submit(), ComputeNonbondedUtil::submitPressureProfileData(), ComputeNonbondedUtil::submitReductionData(), TRACE_COMPOBJ_IDOFFSET, Flags::usePairlists, nonbonded::usePairlists, nonbonded::v, velocityBox, workArrays, nonbonded::workArrays, and Vector::z.

00143 {
00144   // Inform load balancer.
00145   // I assume no threads will suspend until endWork is called
00146   //single phase declarations
00147   CompAtom* v;
00148   int doEnergy = patch->flags.doEnergy;
00149
00150
00151 /*******************************************************************************
00152    * Prepare Parameters
00153  ******************************************************************************/
00154   if (!patch->flags.doGBIS || gbisPhase == 1) {
00155
00156 #ifdef TRACE_COMPUTE_OBJECTS
00157   double traceObjStartTime = CmiWallTimer();
00158 #endif
00159
00160   DebugM(2,"doForce() called.\n");
00161   DebugM(1,numAtoms << " patch 1 atoms\n");
00162   DebugM(3, "NUMATOMSxNUMATOMS = " << numAtoms*numAtoms << "\n");
00163
00164   for ( int i = 0; i < reductionDataSize; ++i ) reductionData[i] = 0;
00165   if (pressureProfileOn) {
00166     int n = pressureProfileAtomTypes;
00167     memset(pressureProfileData, 0, 3*n*n*pressureProfileSlabs*sizeof(BigReal));
00168     // adjust lattice dimensions to allow constant pressure
00169     const Lattice &lattice = patch->lattice;
00170     pressureProfileThickness = lattice.c().z / pressureProfileSlabs;
00171     pressureProfileMin = lattice.origin().z - 0.5*lattice.c().z;
00172   }
00173
00174     plint maxa = (plint)(-1);
00175     if ( numAtoms > maxa ) {
00176       char estr[1024];
00177       sprintf(estr,"patch has %d atoms, maximum allowed is %d",numAtoms,maxa);
00178       NAMD_die(estr);
00179     }
00180
00181     params.offset = 0.;
00182     params.offset_f = 0.;
00183     params.p[0] = p;
00184     params.p[1] = p;
00185     params.pExt[0] = pExt;
00186     params.pExt[1] = pExt;
00187 #ifdef NAMD_KNL
00188     CompAtomFlt *pFlt = patch->getCompAtomFlt();
00189     params.pFlt[0] = pFlt;
00190     params.pFlt[1] = pFlt;
00191 #endif
00192     params.step = patch->flags.step;
00193     // BEGIN LA
00194     params.doLoweAndersen = patch->flags.doLoweAndersen;
00195     if (params.doLoweAndersen) {
00196         DebugM(4, "opening velocity box\n");
00197         v = velocityBox->open();
00198         params.v[0] = v;
00199         params.v[1] = v;
00200     }
00201     // END LA
00202 #ifndef NAMD_CUDA
00203     params.ff[0] = r->f[Results::nbond_virial];
00204     params.ff[1] = r->f[Results::nbond_virial];
00205 #endif
00206     params.numAtoms[0] = numAtoms;
00207     params.numAtoms[1] = numAtoms;
00208
00209     // DMK - Atom Separation (water vs. non-water)
00210     #if NAMD_SeparateWaters != 0
00211       params.numWaterAtoms[0] = numWaterAtoms;
00212       params.numWaterAtoms[1] = numWaterAtoms;
00213     #endif
00214
00215     params.reduction = reductionData;
00216     params.pressureProfileReduction = pressureProfileData;
00217
00218     params.minPart = minPart;
00219     params.maxPart = maxPart;
00220     params.numParts = numParts;
00221
00222     params.workArrays = workArrays;
00223
00224     params.pairlists = &pairlists;
00225     params.savePairlists = 0;
00226     params.usePairlists = 0;
00227     if ( patch->flags.savePairlists ) {
00228       params.savePairlists = 1;
00229       params.usePairlists = 1;
00230     } else if ( patch->flags.usePairlists ) {
00231       if ( ! pairlistsValid ||
00232            ( 2. * patch->flags.maxAtomMovement > pairlistTolerance ) ) {
00233         reductionData[pairlistWarningIndex] += 1;
00234       } else {
00235         params.usePairlists = 1;
00236       }
00237     }
00238     if ( ! params.usePairlists ) {
00239       pairlistsValid = 0;
00240     }
00241     params.plcutoff = cutoff;
00242     params.groupplcutoff = cutoff + 2. * patch->flags.maxGroupRadius;
00243     if ( params.savePairlists ) {
00244       pairlistsValid = 1;
00245       pairlistTolerance = 2. * patch->flags.pairlistTolerance;
00246       params.plcutoff += pairlistTolerance;
00247       params.groupplcutoff += pairlistTolerance;
00248     }
00249
00250
00251 /*******************************************************************************
00252  * Call Nonbonded Functions
00253  ******************************************************************************/
00254
00255     if (numAtoms) {
00256     if ( patch->flags.doFullElectrostatics )
00257     {
00258 #ifndef NAMD_CUDA
00259       params.fullf[0] = r->f[Results::slow_virial];
00260       params.fullf[1] = r->f[Results::slow_virial];
00261 #endif
00262       if ( patch->flags.doMolly ) {
00263         if ( doEnergy ) calcSelfEnergy(&params);
00264   else calcSelf(&params);
00265         CompAtom *p_avg = avgPositionBox->open();
00266         params.p[0] = p_avg;
00267         params.p[1] = p_avg;
00268         if ( doEnergy ) calcSlowSelfEnergy(&params);
00269   else calcSlowSelf(&params);
00270         avgPositionBox->close(&p_avg);
00271       } else if ( patch->flags.maxForceMerged == Results::slow ) {
00272         if ( doEnergy ) calcMergeSelfEnergy(&params);
00273   else calcMergeSelf(&params);
00274       } else {
00275         if ( doEnergy ) calcFullSelfEnergy(&params);
00276   else calcFullSelf(&params);
00277       }
00278     }
00279     else
00280       if ( doEnergy ) calcSelfEnergy(&params);
00281       else calcSelf(&params);
00282     }//end if atoms
00283
00284     // BEGIN LA
00285     if (params.doLoweAndersen) {
00286         DebugM(4, "closing velocity box\n");
00287         velocityBox->close(&v);
00288     }
00289     // END LA
00290   }//end if not gbis
00291
00292 /*******************************************************************************
00293  * gbis Loop
00294 *******************************************************************************/
00295 if (patch->flags.doGBIS) {
00296   SimParameters *simParams = Node::Object()->simParameters;
00297   gbisParams.sequence = sequence();
00298   gbisParams.doGBIS = patch->flags.doGBIS;
00299   gbisParams.numPatches = 1;//self
00300   gbisParams.gbisPhase = gbisPhase;
00301   gbisParams.doFullElectrostatics = patch->flags.doFullElectrostatics;
00302   gbisParams.epsilon_s = simParams->solvent_dielectric;
00303   gbisParams.epsilon_p = simParams->dielectric;
00304   gbisParams.rho_0 = simParams->coulomb_radius_offset;
00305   gbisParams.kappa = simParams->kappa;
00306   gbisParams.cutoff = simParams->cutoff;
00307   gbisParams.doSmoothing = simParams->switchingActive;
00308   gbisParams.a_cut = simParams->alpha_cutoff;
00309   gbisParams.delta = simParams->gbis_delta;
00310   gbisParams.beta = simParams->gbis_beta;
00311   gbisParams.gamma = simParams->gbis_gamma;
00312   gbisParams.alpha_max = simParams->alpha_max;
00313   gbisParams.cid = cid;
00314   gbisParams.patchID[0] = patch->getPatchID();
00315   gbisParams.patchID[1] = patch->getPatchID();
00316   gbisParams.maxGroupRadius = patch->flags.maxGroupRadius;
00317   gbisParams.doEnergy = doEnergy;
00318   gbisParams.fsMax = simParams->fsMax;
00319   for (int i = 0; i < numGBISPairlists; i++)
00320     gbisParams.gbisStepPairlists[i] = &gbisStepPairlists[i];
00321
00322   //open boxes
00323   if (gbisPhase == 1) {
00324       gbisParams.intRad[0] = intRadBox->open();
00325       gbisParams.intRad[1] = gbisParams.intRad[0];
00326       gbisParams.psiSum[0] = psiSumBox->open();
00327       gbisParams.psiSum[1] = gbisParams.psiSum[0];
00328       gbisParams.gbInterEnergy=0;
00329       gbisParams.gbSelfEnergy=0;
00330   } else if (gbisPhase == 2) {
00331       gbisParams.bornRad[0] = bornRadBox->open();
00332       gbisParams.bornRad[1] = gbisParams.bornRad[0];
00333       gbisParams.dEdaSum[0] = dEdaSumBox->open();
00334       gbisParams.dEdaSum[1] = gbisParams.dEdaSum[0];
00335   } else if (gbisPhase == 3) {
00336       gbisParams.dHdrPrefix[0] = dHdrPrefixBox->open();
00337       gbisParams.dHdrPrefix[1] = gbisParams.dHdrPrefix[0];
00338   }
00339
00340   //make call to calculate GBIS
00341   if ( !ComputeNonbondedUtil::commOnly ) {
00342     calcGBIS(&params,&gbisParams);
00343   }
00344
00345   //close boxes
00346   if (gbisPhase == 1) {
00347       psiSumBox->close(&(gbisParams.psiSum[0]));
00348   } else if (gbisPhase == 2) {
00349       dEdaSumBox->close(&(gbisParams.dEdaSum[0]));
00350   } else if (gbisPhase == 3) {
00351       bornRadBox->close(&(gbisParams.bornRad[0]));
00352       reduction->item(REDUCTION_ELECT_ENERGY) += gbisParams.gbInterEnergy;
00353       reduction->item(REDUCTION_ELECT_ENERGY) += gbisParams.gbSelfEnergy;
00354       intRadBox->close(&(gbisParams.intRad[0]));
00355       dHdrPrefixBox->close(&(gbisParams.dHdrPrefix[0]));
00356   }
00357
00358 }// end if doGBIS
00359
00360
00361 /*******************************************************************************
00362  * Reduction
00363 *******************************************************************************/
00364   if (!patch->flags.doGBIS || gbisPhase == 3) {
00365   submitReductionData(reductionData,reduction);
00366   if (pressureProfileOn)
00367     submitPressureProfileData(pressureProfileData, pressureProfileReduction);
00368
00369
00370 #ifdef TRACE_COMPUTE_OBJECTS
00371     traceUserBracketEvent(TRACE_COMPOBJ_IDOFFSET+cid, traceObjStartTime, CmiWallTimer());
00372 #endif
00373
00374   reduction->submit();
00375   if (pressureProfileOn)
00376     pressureProfileReduction->submit();
00377   }// end not gbis
00378
00379 }

void ComputeNonbondedSelf::initialize (  )  [protected, virtual]

Reimplemented from ComputePatch.

Definition at line 43 of file ComputeNonbondedSelf.C.

References avgPositionBox, bornRadBox, Compute::cid, dEdaSumBox, dHdrPrefixBox, ComputePatch::initialize(), intRadBox, ComputePatch::patch, ComputePatch::patchID, psiSumBox, register_cuda_compute_self(), Patch::registerAvgPositionPickup(), Patch::registerBornRadPickup(), Patch::registerDEdaSumDeposit(), Patch::registerDHdrPrefixPickup(), Patch::registerIntRadPickup(), Patch::registerPsiSumDeposit(), Patch::registerVelocityPickup(), and velocityBox.

00043                                       {
00044   ComputePatch::initialize();
00045   avgPositionBox = patch->registerAvgPositionPickup(this);
00046   // BEGIN LA
00047   velocityBox = patch->registerVelocityPickup(this);
00048   // END LA
00049
00050   psiSumBox = patch->registerPsiSumDeposit(this);
00051   intRadBox = patch->registerIntRadPickup(this);
00052   bornRadBox = patch->registerBornRadPickup(this);
00053   dEdaSumBox = patch->registerDEdaSumDeposit(this);
00054   dHdrPrefixBox = patch->registerDHdrPrefixPickup(this);
00055
00056 #ifdef NAMD_CUDA
00057   register_cuda_compute_self(cid, patchID);
00058 #endif
00059 }

int ComputeNonbondedSelf::noWork (  )  [protected, virtual]

Reimplemented from Compute.

Definition at line 87 of file ComputeNonbondedSelf.C.

References avgPositionBox, bornRadBox, dEdaSumBox, dHdrPrefixBox, Flags::doGBIS, Flags::doLoweAndersen, Flags::doMolly, Flags::doNonbonded, Patch::flags, ComputePatch::forceBox, Compute::gbisPhase, intRadBox, SubmitReduction::item(), Compute::ldObjHandle, ComputePatch::numAtoms, LdbCoordinator::Object(), ComputePatch::patch, ComputePatch::positionBox, ComputeNonbondedUtil::pressureProfileOn, pressureProfileReduction, psiSumBox, reduction, REDUCTION_COMPUTE_CHECKSUM, Box< Owner, Data >::skip(), LdbCoordinator::skipWork(), SubmitReduction::submit(), and velocityBox.

00087                                  {
00088
00089   if (patch->flags.doGBIS) {
00090     gbisPhase = 1 + (gbisPhase % 3);//1->2->3->1...
00091   }
00092
00093 #ifndef NAMD_CUDA
00094   if ( patch->flags.doNonbonded && numAtoms ) {
00095     return 0;  // work to do, enqueue as usual
00096   } else {
00097 #else
00098   {
00099 #endif
00100
00101     if (patch->flags.doGBIS) {
00102      if (gbisPhase == 1) {
00103       psiSumBox->skip();
00104       intRadBox->skip();
00105       if (patch->flags.doNonbonded) return 1;
00106       else gbisPhase = 2;
00107      }
00108      if (gbisPhase == 2) {
00109       bornRadBox->skip();
00110       dEdaSumBox->skip();
00111       if (patch->flags.doNonbonded) return 1;
00112       else gbisPhase = 3;
00113      }
00114      if (gbisPhase == 3) {
00115       dHdrPrefixBox->skip();
00116      }
00117     }
00118
00119     // skip all boxes
00120     positionBox->skip();
00121     forceBox->skip();
00122     if ( patch->flags.doMolly ) avgPositionBox->skip();
00123     // BEGIN LA
00124     if (patch->flags.doLoweAndersen) velocityBox->skip();
00125     // END LA
00126
00127     reduction->item(REDUCTION_COMPUTE_CHECKSUM) += 1.;
00128     reduction->submit();
00129
00130     if (pressureProfileOn)
00131       pressureProfileReduction->submit();
00132
00133 #ifndef NAMD_CUDA
00134     // Inform load balancer
00135     LdbCoordinator::Object()->skipWork(ldObjHandle);
00136 #endif
00137
00138     return 1;  // no work to do, do not enqueue
00139   }
00140 }


Member Data Documentation

Box<Patch,CompAtom>* ComputeNonbondedSelf::avgPositionBox [protected]

Definition at line 28 of file ComputeNonbondedSelf.h.

Referenced by doForce(), initialize(), noWork(), and ~ComputeNonbondedSelf().

Box<Patch,Real>* ComputeNonbondedSelf::bornRadBox [protected]

Definition at line 36 of file ComputeNonbondedSelf.h.

Referenced by doForce(), initialize(), noWork(), and ~ComputeNonbondedSelf().

Box<Patch,GBReal>* ComputeNonbondedSelf::dEdaSumBox [protected]

Definition at line 37 of file ComputeNonbondedSelf.h.

Referenced by doForce(), initialize(), noWork(), and ~ComputeNonbondedSelf().

Box<Patch,Real>* ComputeNonbondedSelf::dHdrPrefixBox [protected]

Definition at line 38 of file ComputeNonbondedSelf.h.

Referenced by doForce(), initialize(), noWork(), and ~ComputeNonbondedSelf().

GBISParamStruct ComputeNonbondedSelf::gbisParams

Definition at line 17 of file ComputeNonbondedSelf.h.

Referenced by doForce().

Pairlists ComputeNonbondedSelf::gbisStepPairlists[numGBISPairlists] [protected]

Definition at line 40 of file ComputeNonbondedSelf.h.

Referenced by doForce().

Real* ComputeNonbondedSelf::intRad [protected]

Definition at line 33 of file ComputeNonbondedSelf.h.

Box<Patch,Real>* ComputeNonbondedSelf::intRadBox [protected]

Definition at line 34 of file ComputeNonbondedSelf.h.

Referenced by doForce(), initialize(), noWork(), and ~ComputeNonbondedSelf().

int ComputeNonbondedSelf::maxPart [protected]

Definition at line 53 of file ComputeNonbondedSelf.h.

Referenced by doForce().

int ComputeNonbondedSelf::minPart [protected]

Definition at line 53 of file ComputeNonbondedSelf.h.

Referenced by doForce().

const int ComputeNonbondedSelf::numGBISPairlists = 4 [static, protected]

Definition at line 39 of file ComputeNonbondedSelf.h.

Referenced by doForce().

int ComputeNonbondedSelf::numParts [protected]

Definition at line 53 of file ComputeNonbondedSelf.h.

Referenced by doForce().

Pairlists ComputeNonbondedSelf::pairlists [protected]

Definition at line 48 of file ComputeNonbondedSelf.h.

Referenced by doForce().

int ComputeNonbondedSelf::pairlistsValid [protected]

Definition at line 49 of file ComputeNonbondedSelf.h.

Referenced by ComputeNonbondedSelf(), and doForce().

BigReal ComputeNonbondedSelf::pairlistTolerance [protected]

Definition at line 50 of file ComputeNonbondedSelf.h.

Referenced by ComputeNonbondedSelf(), and doForce().

nonbonded ComputeNonbondedSelf::params

Definition at line 16 of file ComputeNonbondedSelf.h.

Referenced by ComputeNonbondedSelf(), and doForce().

BigReal* ComputeNonbondedSelf::pressureProfileData [protected]

Definition at line 44 of file ComputeNonbondedSelf.h.

Referenced by ComputeNonbondedSelf(), doForce(), and ~ComputeNonbondedSelf().

SubmitReduction* ComputeNonbondedSelf::pressureProfileReduction [protected]

Definition at line 43 of file ComputeNonbondedSelf.h.

Referenced by ComputeNonbondedSelf(), doForce(), noWork(), and ~ComputeNonbondedSelf().

Box<Patch,GBReal>* ComputeNonbondedSelf::psiSumBox [protected]

Definition at line 35 of file ComputeNonbondedSelf.h.

Referenced by doForce(), initialize(), noWork(), and ~ComputeNonbondedSelf().

SubmitReduction* ComputeNonbondedSelf::reduction [protected]

Definition at line 42 of file ComputeNonbondedSelf.h.

Referenced by ComputeNonbondedSelf(), doForce(), noWork(), and ~ComputeNonbondedSelf().

BigReal ComputeNonbondedSelf::reductionData[reductionDataSize]

Definition at line 22 of file ComputeNonbondedSelf.h.

Referenced by doForce().

Box<Patch,CompAtom>* ComputeNonbondedSelf::velocityBox [protected]

Definition at line 30 of file ComputeNonbondedSelf.h.

Referenced by doForce(), initialize(), noWork(), and ~ComputeNonbondedSelf().

ComputeNonbondedWorkArrays* const ComputeNonbondedSelf::workArrays [protected]

Definition at line 46 of file ComputeNonbondedSelf.h.

Referenced by doForce().


The documentation for this class was generated from the following files:
Generated on Thu Nov 23 01:17:17 2017 for NAMD by  doxygen 1.4.7
