User interface objects

The following objects are used to implement the user interface modules in VMD, including the text interface, the 2D mouse interface, the GUI interface, and (eventually) the 3D interface. Items which have a specific section listed for them are explained in detail in that section.

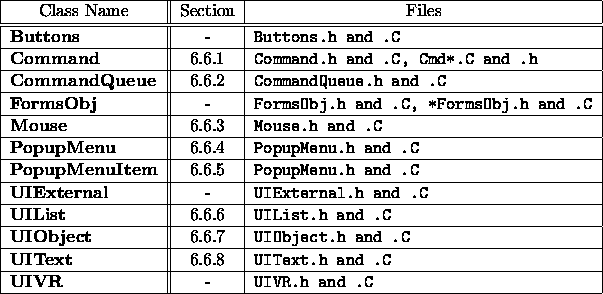

Table 6.6: VMD user interface objects.

Command

Description

This is a base class for all the objects used in VMD to peform actions (commands) on the molecules or program state. Each time a request is to be made to do some command (i.e. rotate the current scene, load a new molecule, change a color, etc), an instance of a class derived from Command is created, and given to a CommandQueue object. The queue will then call virtual routines within Command to perform the action it knows how to do. There are a large number of relatively small classes derived from Command , each one used to perform a particular type of action. These objects are all in the files with names starting with 'Cmd', for example CmdDisplay.h and .C.

Each class derived from Command has these characteristics and abilities:

• A unique integer code, which must be one of the items in the enumeration Cmdtype located at the top of the Command.h file. The code for the particular subclass of Command is passed to the Command constuctor, and available via the gettype() function.

• The data necessary to perform the required action. This data must be given to the object via the constructor when it is created.

• A textual equivalent of the command. This is created after the object is instantiated, based on the particular data given to that instance. This string is used to echo commands to the console or to a file.

• The ability to perform the command itself. The virtual function execute() is used to request the Command object to do its stuff.

The basic philosophy behind the use of Command is that each action that the user may possibly request to do should be encapsulated within a class derived from Command . Each subclass should know also how to create a text equivalent of the command. User interface objects in VMD (those derived from UIObject must use these Command 's to do the actions requested by the user, by creating new Command

instances and giving them to a CommandQueue object to execute.

Constructors

• Command::(Cmdtype, int)
  The first argument specifies the type code for the command, while the second argument is the ID of the user interface object which created this Command instance (see section 6.6.7).

Enumerations, lists or character name arrays

There is one large enumeration Cmdtype in Command , which contains a set of unique ID's for each derived class of Command . This is done as an enumeration here so that other objects in the program (notably UIObject s) .. can be written with explicit codes to allow them to check what type of command they may be working with. When a new Command object is being written, a new value must be added to this list.

Internal data structures

• Cmdtype mytype -- unique code for this derived class.

• int textExists -- whether or not the text equivalent of this command has been created yet. This only needs to be done at most once, and sometimes not at all (if commands are not being logged to a file or the screen, for example).

• int hasTextCmd -- whether or not this command even HAS a text equivalent ... some commands do not, for example Event's.

• char cmdtextbuf[256] -- character buffer to hold the text equivalent string. This can be at most 256 characters.

• ostrstream *cmdText -- character stream used to format the text equivalent.

Nonvirtual member functions

• void check_and_create_text(void) -- when called, this routine will create the text equivalent of the command, if necessary (that is, when the command HAS a text equiv and the string has not yet been created). This will be done by calling the virtual function create_text().

• int execute(void) -- execute the command; this will call the virtual function do_execute(), and return whether the action was successful.

• int has_text(void) -- return whether or not the command has a text equivalent (if not, the text equivalent is an empty string).

• char *text(void) -- return the text equivalent. This will call the routines to create the string if necessary.

• Cmdtype gettype(void) -- return the type code for this object.

• int getUIid(void) -- return the ID number of the UIObject

  which created this Command instance.

• friend ostream& operator<< -- an overload of the << operator to allow a Command to be easily printed to an ostream.

• friend Inform& operator<< -- the same, to send the text equivalent of the Command to an inform object. For example: Command *cmd = new CmdAck(); msgInfo << *cmd;

Virtual member functions

• virtual int do_execute(void) -- the `heart' of each class derived from Command . This function performs the required task (if possible), and returns TRUE if successful, FALSE if there is an error. When errors occur, messages should be printed to msgErr in this function, and preferrably NOT within the lower-level objects (i.e. the Molecule or DisplayDevice objects).

• virtual void create_text(void) -- formats the text equivalent of the command, writing the text to the cmdText stream.

Method of use

Using a Command object:

Once queued, the command will be executed during the main event loop in VMD , and then the instance will be deleted after it is done executing. Do NOT queue a static Command object, it must have been created using new. (But see the description of the runcommand function in CommandQueue , section 6.6.2.)

Developing a new class derived from Command:

1. Identify the `type' of command ... to affect the display, the molecules, the on-screen forms, or whatever. There are several Cmd* files, find one where it belongs, or create a new one of the form CmdXXXX.h and .C

2. Create a text equivalent of the commands. Text commands in VMD \ consist of one or more words separated by whitespace, and terminated by a newline. The first word of the command should be an `identifying' word to indicate the general type of action to be performed, and the other words should be arguments to describe exactly what action to do in the general category.

3. Put a new code in the Cmdtype enumeration in Command.h

4. Create the class definition in CmdXXXX.h. The only functions that are needed are the constructor/destructor, and the virtual functions do_execute and create_text. If the command does not have a text equivalent, you do not need to provide a version of the latter.

5. Put the member functions in the file CmdXXXX.C. The easiest thing to do is to follow the patters in the Cmd*.C files.

6. All commands must be understood by the text parser ( UIText ). The parser reads in new commands, looks at the first word, and calls a text callback function to process that command. If the new command is just a variant of another existing command (i.e. the first word of this new command is the same as some existing command), then it should be put in an existing Cmd* file, and the function 'text_cmd_WWWW' at the top of the respective .C file (where WWWW is the first word of the command) should be updated to understand the new command. Add code to look for the proper strings, to create a new instance of the new command, and to add it to the given CommandQueue . If this command contains instead a new word for the VMD vocabulary, go on the next step, otherwise the next step can be skipped.

7. For commands which contain a new starting word, so that they are placed in new files CmdXXXX.h and .C, two things must be done to allow VMD to be aware of the text versions of these commands and to be able to execute them:
   1. At the beginning of CmdXXX.h and .C, a new function `text_cmd_WWWW(int argc, char **argv, CommandQueue *cq, int id)' must be defined and written. This routine must know how to examine the text command (as provided in token form in argc and argv) and create instances of the proper Command object to be added to the command queue. Other Cmd* files contain examples.

   2. In the file UIText.C, there is a section where all the words that are at the beginning of VMD commands are `registered', with the callback function to call when that word is seen. Add a line similar to the others in this section, to register the new word and to specify the new function `text_cmd_WWWW'.

8. If other user interfaces (other than the text interface) are to have the ability to execute this same command, add this ability to them as well.

9. Finally, update the on-line help file vmd_help.html, and the User's Guide.

Suggestions for future changes/additions

The printing of error message is right now very uneven. Some commands do so in the do_execute routine, others leave it to the objects being operated upon to do the error message printing. It would be best if all error messages were printed (if possible) in do_execute routines, with the underlying objects just returning error codes to allow do_execute to tell what is going wrong.

CommandQueue

Description

CommandQueue maintains a queue of Command 's, and will go through this queue and execute them when requested. The queue is first-in first-out. This object also has the ability to log commands to a file.

There is one global instance of this class in VMD , called commandQueue. It is used by all the user interface objects ( UIObject classes). Each time a new action is requested by the user or some other part of VMD , a new Command instance is created and added to the CommandQueue . Within the main event loop of VMD , after each UIObject is checked for new events, the commands in the queue are all executed until the queue is empty (since the execution of one command may result in the queuing of a new command, this process continues until the queue is empty). Each time the queue is checked, the following occurs:

• The next Command instance at the top of the queue is fetched to be executed.

• If commands are being logged to a file, the text representation of the command is written to that file.

• The command itself is executed, and the return code (success of the command) is stored.

• After it is executed, each UIObject active at that time (which are stored in the UIList object) are informed about the command, and are given both the pointer to the command, and it's success flag. This is done so that user interfaces can update their visual display or internal state to reflect the fact that something has changed. In this way, even though a single user interface component may do some action, ALL user interface's can know when to update their state to reflect the changes in the program.

• After this, the Command instance is deleted. There is one routine which does this differently, `runcommand' (see below).

Constructors

• CommandQueue::(UIList *)
  The UIList pointer is to an object which contains a list of all the user interface objects currently active in VMD . Each UIObject

  in this list is told when a command is executed.

Internal data structures

• ResizeArray<Command *> cmdlist -- the queue of commands.

• int loggingCmds -- flag indicating whether commands are being logged to a file.

• FILE *logfile -- pointer to the FILE strcture for the output log file, if one is being used.

• UIList *uil -- the list of user interface objects to inform when a command is executed.

Nonvirtual member functions

• int do_execute(Command *) -- executes the given command, echoing it to the log file if necessary and informing all the UIObject s. This will NOT delete the Command ; this routine is called by other routines in CommandQueue .

• void delete_current(void) -- deletes the command which is at the top of the queue, and moves all the other commands up. This is called by `execute' after the command has been run.

• int logging(void) -- return TRUE if logging of commands is turned on.

• void log_on(char *) -- turns on logging of commands, to the given file.

• void log_off(void) -- turns off logging, closes the open log file if necessary.

• int num(void) -- return number of commands in the queue.

• int append(Command *) -- puts the given command instance at the end of the queue. This will not execute it; commands are not executed until one of the following three routines are called. This returns TRUE if the command could be added.

• int execute(UIList *UIL = NULL) -- executes just the first command in the queue, by calling do_execute and then delete_command. If a particular UIList is given, that will be used, otherwise the internal one will be used. This will definitel delete the command when it is done. Returns the success code of the command, or FALSE if not command is available.

• void execute_all(UIList *UIL = NULL) -- just calls execute until the queue is empty.

• int runcommand(Command *) -- this routine executes the given command, but without adding it to the queue. It should be used when you definitely know that a command should be done immediately, and can be done out-of-order with respect to the other commands which might be in the queue. When the command is done, it is deleted. This returns the success code of the command.

Method of use

When objects other than UIObject s wish to execute a command, they should use the global object commandQueue, and append the command: commandQueue->append(new CmdReshape()); This command will not actually be run until the main event loop in VMD \ is run. If a command needs to be executed immediately, use runcommand: int success = commandQueue->runcommand(new CmdReshape());

When UIObject s are adding commands, there are special funcions in UIObject to make this faster, `addcommand' and `runcommand'. Each UIObject is given a pointer to a CommandQueue object, and so the `addcommand' routine will take a command and add it to that queue. For example, in UIText there might be: addcommand(new TextEvent("text command", id())); Most commands have as their last argument an id code for the UIObject

which created them. This is that so UIObject s can tell, when they are told that the command has executed, who started it all.

Suggestions for future changes/additions

There should be a version of runcommand that allows for executing a command without 'new'ing it. At least, there should be an argument to runcommand to allow this possibility.

Mouse

Description

The Mouse class provides all the capabilities to provide a 2D pointer for a particular DisplayDevice . Mouse will use virtual functions with DisplayDevice to determine when a mouse button has been pressed, and where it is located. Based on this, the Mouse will rotate, translate, or scale the objects in the current Scene . It can also be used to `pick' items, by clicking one of the mouse buttons while the cursor is positioned over the item. Finally, it is used to activate and choose from a pop up menu. Mouse is derived from UIObject , and is one of the main user interface methods in VMD (along with the text console, the GUI, the 3D pointers, and any external command input programs).

It is assumed the Mouse has three buttons, left, middle, and right. The right button is always used to active the pop-up menu, while the other two are used to apply transformations to the current Scene . The left and middle buttons are also used to select items. For some things, you can only click on them (press button + release) for something useful to happen. For other things, you can select them (press button), pull them (move the mouse while the button is held down), and release. The Mouse will issue commands to do the button presses, mouse motion, and button releases associated with picking objects.

The Mouse is always in one of several modes, which are changed by various means (text commands, pop-up menu options, or keyboard shortcuts). These modes are:

• Rotation mode: When held down, the left button will rotate things about the X or Y axis as the mouse is moved, in a `virtual trackball' method. The middle button is used to rotate about the Z axis (perpendicular to the screen).

• Translation mode: The left button will move the objects in the X-Y plane; the middle button will move things in the Z direction (toward or away from the viewer).

• Scaling mode: The left button, when held down and the mouse moved left-right, will enlarge or shrink the scene. The middle button will do the same thing, but with a larger scaling factor (so the left is for fine tuning, the middle is for coarse-grain scaling).

• Light mode: This acts just like rotation mode, but instead of rotating all the displayed objects, the mouse will only rotate the position of one of the light sources. When setting this mode, you also select which light to rotate (0 ... 3).

• Pick mode: While the mouse can be used to select certain items while it is in the other modes, there are certain special pick-and-drag operations in VMD which can only be done if the pointer is put in a special picking mode. By default there are five picking modes, which are numbered 0 ... N-1, in this order: query, select atom, select bond, select angle, or select dihedral. Picking on an object when in a non-picking mode does not allow you move the mouse around any while the item is selected; in that case, when the button is pressed, if an item is selected it acts just as if the button were immediately released. But if the mouse is in a special picking mode, then when the button is pressed and an item is selected, you can move the mouse around while the button is held down and have extra actions be taken during the motion. For example, there are special modes which are used to add perturbative forces to atoms; to to do this, the mouse must be placed in the atom-tug mode. When setting the mouse into a pick mode, you also must select which mode it is to be.

The Mouse is also used to provide a customizable pop-up menu when the third button is pressed. This menu contains selectable items, separators, and submenus. There are several `standard' selections in the popup menu, and there are text commands available which allow the user to add their own submenus and pop-up menu items. Thus, the user can customize their own user interface. There are Command objects which call routines within the Mouse object to add these items. The entire definition of the pop-up menu is contained within a member object PopupMenu . When the third button is pressed, the definition of this pop-up menu is given to the DisplayDevice specified in the constructor of Mouse (via virtual functions there for handling pop-up menus), and the virtual function ni DisplayDevice which activates the pop-up menu is called to allow an item to be selected.

Finally, the Mouse contains the ability to check the keyboard for special events as well as the 2D pointing device. The Mouse maintains a list of user-customizable keyboard shortcuts, which associate a specific keypress (i.e. 'A' or 'r') with a text command. When that key is pressed while the Mouse is in the graphics display window, the associated text command is executed as if the entire command had been entered at the console prompt.

There is one global instance of the Mouse class, mouse. It is created after the global UIList , DisplayDevice , and CommandQueue objects are created. Note that if a `default' DisplayDevice is created, the Mouse will not be able to check for events, determine a pointer position, etc, and so will do nothing.

Constructors

• Mouse::(UIList *, CommandQueue *, DisplayDevice *)
  The first argument is the UIList with which this object should register itself; the second is the CommandQueue object which this class should use when creating new Command s to be executed, and the third argument is the DisplayDevice which this class should be a 2D pointer for. The DisplayDevice must provide all the device-specific information for the Mouse , such as the X,Y location of the pointer, the state of the mouse buttons, and the ability to post and activate a pop-up menu.

Enumerations, lists or character name arrays

The MoveMode enumeration lists the possible mouse modes. These are:

• ROTATION.
• TRANSLATION.
• SCALING.
• LIGHT.
• PICKING.

Internal data structures

• DisplayDevice *dispDev -- display to use for device-specific functionality, such as checking for events, determining the pointer position, etc.

• MoveMode moveMode -- current mode the mouse is in.

• int activePickMode -- if the current mode is PICKING, this variable indicates which pick mode is active.

• int pickInProgress -- if this is zero, no picking operation is currently in progress (which means that it is NOT that case that a mouse button has been pressed and selected something, with the mouse button still left down). If something is currently being selected with the mouse and the button is still down, this flag indicates which button is being used. In fact, pickInProgress = pick-button + 1.

• int moveObj -- if the current mode is LIGHT, this variable indicates which light to rotate.

• int currX, currY, oldX, oldY -- current and previous positions of the pointer, measured in pixels from the lower-left corner of the global display screen.

• float transInc, rotInc, scaleInc -- the amount of change to apply each time a translation, rotation, or scaling operation is requested.

• float xRotVel, yRotVel, zRotVel -- current angular velocity of the scene; when the system has angular velocity, even if no event is generated by the Mouse , the current scene will be rotated by the angular velocity amount.

• PopupMenu *mouseMenu -- the object which contains the definition of the pop-up menu which is activated when the third button is pressed.

• NameList<NameList<char *> *> userMenuList -- a list of NameList objects which hold the definitions of user menus. Each name in userMenuList is the title of a submenu to be added to the main pop-up menu, with an associated list of names which define the submenu. This is used to store the user-defined pop-up menu commands.

• <NameList<char *> *mainUserMenu -- this is the one user-controlled menu which is always added to the main menu. The user can add two types of items to the main menu:
  • Single commands, which are put into the mainUsermenu list.
  • Submenu commands, which are put into a new submenu with a specified name that is added to the main menu. This allows for grouping of related commands under a separate submenu in the main menu.

• NameList<char *> userKeys -- in a manner very similar to adding new menu items, the user can assocate keyboard shortcuts (or hotkeys) with a specified text command. This list stores the keystrokes, and the text commands associated with those keystrokes.

Nonvirtual member functions

• int mouse_moved(int b1Down, int b2Down) -- performs the necessary action when the mouse is moved while a button is pressed. The arguments indicate which buttons are currently down.

• void create_popup_menu(void) -- goes through the definitions of the pop-up menu, and creates a PopupMenu object to store this data in the proper order and format.

• void create_key_commands(void) -- creates the initial list of keyboard shortcuts; this is only done when the Mouse is initialized.

• void stop_rotation(void) -- sets the current angular velocity to zero.

• int x(void) -- returns the current x position of the Mouse , as measured from the lower-left corner. This just calls a similar (but virtual) function in DisplayDevice .

• int y(void) -- as as x(), but for the vertical position.

• int button_down(int) -- returns the current state of the given button.

• int move_mode(MoveMode, int = 0) -- sets the current mouse mode. If the new mode is PICKING or LIGHT, the second argument must be given to indicate which picking mode or light. Otherwise, the second argument is ignored.

• MoveMode curr_move_mode(void) -- returns current mode.

• char *move_mode_name(MoveMode) -- returns a string describing the specified mode.

• int curr_pick_mode(void) -- returns current picking mode, or -1 if the current mouse mode is not PICKING.

• int picking(void) -- returns TRUE if somthing is being pickied, or FALSE otherwise.

• int create_user_menu(char *label) -- indicates that a new user-customizable submenu should be added to the main menu, with the given label. The new menu will be initially empty.

• int add_user_menu_item(char *text, char *txtcmd) -- adds a new user menu item to the main user submenu ... the name in the menu will be `text', and the command executed when that menu option is chosen is `txtcmd'.

• int add_user_menu_separator(void) -- puts in a separator at the current end of the main user submenu.

• int add_user_submenu_item(char *submenu, char *text, char *txtcmd) -- adds the command `txtcmd' to the submenu `submenu', under the name of `text' in that submenu.

• int add_user_submenu_separator(char *submenu) -- adds a separator to the end of the given submenu.

• int add_user_key_command(char, const char *) -- adds a new keyboard shortcut (or replaces a previous one), for the given key.

Virtual member functions

• virtual void reset(void) -- resets the user interface to the initial state it was in when it was created.

• virtual int act_on_command(int, Commmand *, int) -- this is called each time a Command is executed that the Mouse has expressed interest in hearing about. This will be when a mouse event occurs, such as a mouse button press.

• virtual int check_event(void) -- calls the necessary routines in DisplayDevice to determine if a button has been pressed. If not, then any angular velocity is used to rotate the current scene.

Method of use

Once it is created and given the proper CommandQueue , UIList , and DisplayDevice , Mouse only needs to have its virtual function check_event() called regularly. This is done in the main event loop of VMD , when the UIList is told to have all its UIObject s check for events.

The Command objects which have the word `user' as their first word control the customization of the pop-up menu and keyboard shortcuts.

Suggestions for future changes/additions

When a new DisplayDevice is eventually developed to use X-Windows and OpenGL, there will also need to be included routines there to post and activate the pop-up menu and for all the virtual functions in DisplayDevice which the Mouse uses. If this is done successfully then Mouse should be completely device-independent. It may be necessary (or preferred) to convert to the use of a pull-down menu in the X-Windows case.

PopupMenu

Description

PopupMenu is used by the Mouse class, and perhaps other components. A PopupMenu contains a list of elements, which are used to create a menu of commands. There are two types of elements, `normal' elements which consist of a name and an associated text command, and `special' elements which modify the appearance or behavior of the menu. Each element has these characteristics:

• Name (as it appears in the menu).

• Text command to execute when the item is selected (may be null).

• Return code: this is an integer code which is returned by the windowing system when the item is picked. It is assigned by PopupMenu , and for all regular menu items, it is greater than 0. There are several ``special'' return codes, which indicate the menu item is not a normal menu . These special return codes include:
  • MENU_CODE_SUBMENU: the menu item contains a submenu.
  • MENU_CODE_SEP: the menu item is really a separator.
  • MENU_CODE_NONE: the menu item cannot be selected, it just exists to display text.

• A submenu object, if any (only if the return code indicates the element contains a submenu).

• Flags to indicate if the menu item should be displayed, or if it should be disabled (greyed out) if possible.

A PopupMenu relies on a specific windowing system to provide the methods for creating, posting, and activating a menu. It contains a list of pop-up items, each item containing the characteristics listed above. A menu is a list of these, and has a name associated with the total list as well as with each item.

Constructors

• PopupMenu::(char *)
  The argument is the name of the menu. If this menu is used as a submenu in another menu, this name will appear in the parent menu as the name of the submenu.

Enumerations, lists or character name arrays

The PopupCodes enumeration lists the possible ``special'' return codes for the menu items. Items in a menu with a return code greater than zero are items which when selected result in some command being executed. Items in a menu with one of the following return codes (which are all ) are special menu items:

• MENU_CODE_NONE: Indicates the item does not do anything, it is just a label or a placeholder.

• MENU_CODE_SEP: The item is a separator, which means that a separating line should be drawn (if possible) between the items preceing and following this item.

• MENU_CODE_SUBMENU: The item contains a submenu, so it does not do any action itself, but provides access to a lower level of items.

Internal data structures

• long menuID -- this may be used to store the ID of any window-library-specific menu structure. It is a public variable which is not used for any other reason by PopupMenu .

• int menuExists -- another public variable which may be used by the winding library if necessary, to indicate the presence of a menu structure.

• static int nextReturnCode -- the next return code to assign to an item. This must be unique, and greater than zero. It is static so that all items across all the PopupMenu instances can get unique return codes.

• ResizeArray<PopupMenuItem *> menuItems -- the list of the menu items in the menu. Each PopupMenuItem object contains the name and information for a single item, be it a regular item, a separator, or a submenu.

• char *menuName -- the name of this menu.

Nonvirtual member functions

• char *name(void) -- return the name of this menu.

• int items(void) -- return the number of items in this menu.

• PopupMenuItem *menu_item(int) -- return the Nth item, or NULL if N is not in range.

• PopupMenuItem *menu_item(char *) -- return the first menu item with the given name (label), or NULL if not found.

• PopupMenuItem *find_item(int, PopupMenu * = NULL) -- given a specific return code as the first argument, this searches the menu specified in the second argument until the first item with that return code is found. This returns the item object if found, or NULL if not found or the given return code is . The second argument is used to allow for recursive searching of submenus, and should not be specified by the user when calling this function.

• int add_item(char *name, char *cmd, int disp, int mark, int onoff=0) -- This adds a new item to the end of the current menu. The item will appear in the menu with the given name, and will have the given string `cmd' be associated with this item. The return code of the new item is returned. The other flags in the argument specify the following:
  • int disp: whether to display the item or not (it can be turned on/off later by routines in PopupMenuItem ).
  • int mark: whether to put a check box by the object or not.
  • int onoff: if mark is TRUE, then the check mark can either be shown as an empty box (onoff=FALSE), or as a checked box (onoff=TRUE). If mark is FALSE, this is ignored.

• int add_submenu(PopupMenu *, int disp, int mark, int onoff=0) -- Adds a submenu to the end of the menu. The submenu must have been created previously. The name of the submenu is used as the name shown in the current menu. The other arguments are as described for add_item. Returns success.

• int add_separator(void) -- adds a separator to the end of the menu. Returns success.

• int delete_item(int) -- delete the Nth item from the menu. Returns success.

• PopupMenuItem *activate(DisplayDevice *) -- requests the the menu be given to the specified DisplayDevice to be activated by the windowing system. Virtual functions in DisplayDevice are used to create the menu, and to get the user's choice from the menu. This returns a pointer to the PopupMenuItem object for the item selected, or NULL if no item is selected.

Method of use

PopupMenu objects are used in the following way:

• A PopupMenu instance is created, that is initially empty.

• The user calls PopupMenu->add_item to add commands, until the menu is defined. This will return integer ``return codes'' for the items added, which must be remembered by the caller.

• If there is a hierarchy of menus, first create submenus just as regular menus are created, and then create the parent menu by using the same method and using the add_submenu routine to attach the submenus to the parent menu.

• When the menu is defined, and it is to be used, the menu creator should call PopupMenu->activate(), which returns either a pointer to a PopupMenuItem , or NULL if nothing was selected. The caller can use this item to determine the return code and the text command.

See the source code of the Mouse class for an example of the use of PopupMenu .

Suggestions for future changes/additions

Currently there is no support for doing things like greying out of a menu item, or attaching keyboard shortcuts to menu items. These might be nice in the future.

PopupMenuItem

Description

This class is used by the PopupMenu class to hold the data for each item in the menu. There are several different types of menu items, each different item has a separate constructor in this class. To create a new item of a particular type, a new PopupMenuItem instance is created, using the relevant constructor. The different types of items are described below.

Constructors

• PopupMenuItem::(int rc, char *name, char *cmd)
  Creates a new text command menu item. This item will appear in the menu with the given name, and will have the specified text command associated with it. The first argument specified the return code which this menu item should have.

• PopupMenuItem::(PopupMenu *menu)
  Creates a new submenu menu item. This item will appear in the menu with the name of the specified submenu. When displayed and activated, the specified submenu will be shown as cascading from the parent menu.

• PopupMenuItem::(void)
  Creates a new separator menu item. This will be displayed as a line of some sort between the previous and following menu item.

Internal data structures

• int returnCode -- the return code of this item.

• char *textCmd -- the text command string associated with this item. When this menu item is selected by the user, the Mouse object will get this string and request it to be executed as if it had been typed at the console.

• char *itemName -- the name of the item, as it should appear in the menu.

• PopupMenu *subMenu -- if this is a submenu item, this is the pointer to the submenu. Otherwise, this is NULL.

• int showItem -- whether or not the item should be displayed.

• int showCheck -- whether or not a check box should be shown with the item.

• int checkItem -- whether or not a check mark should be shown with the item.

Nonvirtual member functions

• int is_separator(void) -- return whether this item is a separator item or not.

• int is_submenu(void) -- return whether this item is a submenu item or not.

• int return_code(void) -- return the return code of this item.

• int showing(void) -- return whether the item is being displayed.

• int show_check(void) -- return whether a check box is to be shown with the item.

• int checked(void) -- return whether a check mark is to be shown with the item.

• char *text_command(void) -- return the text command string associated with this item.

• char *name(void) -- the name of the item.

• PopupMenu *sub_menu(void) -- the submenu for this item, or NULL if not present.

• void return_code(int nc) -- change the return code to the given value.

• void showing(int yn) -- change the displayed status.

• void show_check(int yn) -- change whether to display a check box.

• void checked(int yn) -- change whether to display a check mark.

Method of use

The main place where this class is used is in PopupMenu , and also in Mouse . When an item is added to a menu, a new PopupMenuItem

instance is created, of the requested type. The flags specified in the functions in PopupMenu for how to display the item (on/off, checked, etc) are set by calling the proper functions in the newly created item instance. Finally, when an item is selected by the user, the pointer to the item is returned to the Mouse object, which uses that item to find the text command to execute (if any).

Suggestions for future changes/additions

No provision is made here for `greyed-out' items, just for whether an item is to be displayed or not. It might be nice to have greyed-out items in the future.

UIList

Description

VMD contains several user interface components, where each component (a UIObject subclass) can separately issue requested (via Command

ojects) to have particular actions completed. The UIList class is used to maintain the entire collection of these user interface components. There is one global instance of this class, uiList; all user interface components which are active during a VMD run must register themselves with this list.

UIList is used for two main purposes:

• To provide the names and pointers for all the UIObject 's in the program to other parts of the program that need them.

• To perform global operations on all the UIObject 's, such as checking for events, resetting the interfaces, and informing the interfaces when a Command is executed.

When a new UIObject is created, it must register itself with the proper UIList . This is done by specifying a pointer to a UIList in the constructor of all subclasses of UIObject . At present, there is no way to `unregister' from the UIList , it is assumed all UIObject 's will be used for the duration of the program.

Constructors

• UIList::(void)

Internal data structures

• ResizeArray<UIObject *> uilist -- the list of user interface components which this list is managing.

Nonvirtual member functions

• int num(void) -- return the number of UIObject s in the list.

• UIObject *item(char *) -- return the first interface object which has the given name, or NULL if none found.

• UIObject *item(int) -- returns the Nth user interface object.

• int register_UI(UIObject *) -- adds a new user interface object to the current list, and returns its index.

• void reset_UI(void) -- calls the reset() routine for all registered UIObject s.

• void init_UI(void) -- calls the init() routine for all registered UIObject s.

• void update_UI(void) -- calls the update() routine for all registered UIObject s.

• void check_event_UI(void) -- calls the check_event() routine for all registered UIObject s. This will cause them to see if any events are pending, and if so new Command objects will be put in the command queue.

• void act_on_command(Command *) -- this is called after a Command has been executed, in order to inform all the user interface components about the possible change. Each Command has a unique code, and each UIObject will make a note of which command's they are interested in. This routine will call the act_on_command routine for each UIObject which has expressed interest in the command.

Method of use

A global instance of this class is created at the very beginning of the program, before any UIObject 's are created. It is initially empty, but each time a new UIObject is started, the global instance is specified in the UIObject constructor and that UIObject will register itself with the list.

This object is used primarily in the main event loop of VMD to cause all the interface components to check for events, and in the CommandQueue object to inform components when an action occurs. It is also used by parts of the program that need a list of the names of UIObject 's.

UIObject

Description

UIObject is the base class for each object in VMD which provides some form of user interface. There is a UIObject subclass for dealing with the text console, for the 2D pointer interface (the Mouse ), and for the 3D user interface (currently in development). Also, each of the different GUI forms which appear on the screen are a separate UIObject .

VMD contains many different UIObject , each for the most part independent of the others. A UIObject has the ability to get input from the user on what that would like to do, and convert these into particular commands to do that action. These commands (embodied by different subclasses of the Command object) are put in a queue for execution. Each UIObject must also present some form of visual representation of the state of VMD to the user, which changes as different actions are performed. As commands are executed, each UIObject must be informed of what the action was, in order to update its display. No user interface component is capable of executing ALL the commands available in VMD , however, and conversely no user interface component is interested in hearing about all the different possible actions in VMD .

Each UIObject has the following characteristics:

• A list of the particular Command objects which are interesting to the UIObject . When it is initialized, each UIObject must call particular functions which store the list of commands which will require some change to the user interface when they are executed. This is usually done in the specialized constructor for the class derived from UIObject .

• A UIList which will store the UIObject .

• A unique ID code, which is provided by the particular UIList

  object with which the UIObject registers when it is created.

• A CommandQueue variable which is used by the UIObject to have Command s queued and executed.

The main UIObject s in VMD are all created in the routine VMDinitUI, in the file Global.C.

Constructors

• UIObject::(char *, UIList *, CommandQueue *)
  The arguments are the name of the object, the UIList with which this should register, and the CommandQueue which this should use to queue Command objects for execution.

Internal data structures

• char *name -- the name of the object; this is public so that it can be accessed by other objects in VMD .

• int myID -- the ID code for this object, as returned by the UIList .

• int uiOn -- whether this object is active; if not, it will not check for events from the user.

• int maxCmds -- the total number of commands which this object can possibly be interested in.

• char *doCmd -- an array of flags which are used to indicate if a command is wanted or not.

• UIList *uiL -- the UIList object that this object registered with.

• CommandQueue *cmdQueue -- the CommandQueue that this object should use to queue and execute commands.

Nonvirtual member functions

• int addcommand(Command *) -- adds the given Command

  instance to the end of the command queue. Returns success.

• int runcommand(Command *) -- have the command queue execute the given command immediately. Returns the success of the command, or -1 if the command was queued for later execution.

• void command_wanted(int) -- sets the proper flag in the doCmd array to indicate that the given command code is a command the UIObject is interested in.

• void command_not_wanted(int) -- opposite of command_wanted.

• int id(void) -- return the ID of this UIObject .

• int want_command(int) -- return whether the given command is one this object is interested in.

Virtual member functions

• virtual int is_menu(void) -- return whether this object is an on-screen menu form, or another type.

• virtual int is_on(void) -- return whether the object is currently active.

• virtual void On(void) -- turn on the UIObject .

• virtual void Off(void) -- turn off the UIObject .

• virtual void move(int, int) -- moves the UIObject the the given X,Y position on the screen, where X and Y are in pixels measured from the lower-left corner of the display. This may not be applicable to all UIObject 's, if not is is ignorned.

• virtual void where(int &, int &) -- return the position of the UIObject , if applicable.

• virtual void init(void) -- initialize the user interface. This is called once at the beginning of VMD , after all the UIObject s have been created.

• virtual void reset(void) -- resets the user interface object, forcing an update of all the informative displays, etc.

• virtual void update(void) -- updates the display, for example for some visual items which much change each time the scene is redrawn. This is called in the main loop of VMD after all queued Command s have been executed, before the scene is actually rendered.

• virtual int act_on_command(int, Command *, int) -- this is called after a command is executed, and it is seen that this UIObject

  is interested in that command. The first argument is the command code, the second the Command itself, and the third is the success of the command. This routine should check what the code is, and based on that update any visual or other such representation of the program to reflect the change caused by execution of the given command. Returns TRUE if this UIObject actually did something due to this command being executed.

• virtual int check_event(void) -- checks whatever external interface is necessary to see if a new command from the user has been entered. If so, this routine creates a new Command object, and adds it to the queue.

Method of use

To create a new UIObject , you must do the following:

• In the constructor for the new class, call the routine command_wanted to indicate the commands you are interested in.

• Provide versions of at least the routines init, reset, update, act_on_command, and check_event.

• Add code to the VMDinitUI routine to have the UIObject

  created at startup.

UIText

Description

The particular UIObject which is responsible for getting text commands from the user, parsing them, and executing them. Each time it is requested to do so, this object will check to see if the user has entered a line of text at the VMD prompt, and if so, this will read in the command, break it up into the individual words, and determine what action is being requested. Every action in VMD which the user can request to have performed has a corresponding Command object associated with it, and a text command representation.

Each text command consists of N separate words separated by whitespace, with the first word in the command used to distinguish between different types of commands. The UIList maintains a list of these initial words, and with each word there is an associated callback function which is called when a text command is read in and the first word is found in the list.

This object can also be directed to read commands from a file, and to echo text commands to the console.

UIText is able to use the Tcl library, if available, to parse the text commands and to provide sophisticated interpreted script capabilities such as control loops, variable substitution, if-then-else constructs, and user-defined subroutines and functions. If Tcl is not available, this object will still function, but only the basic VMD commands will be understood.

Constructors

• UIText::(UIList *, CommandQueue *)
  The arguments are the UIList object to register with, and the CommandQueue object to use for queuing and executing Command

  objects.

Internal data structures

• NameList<TextCallback *> textProcessors -- a list of all the words which this object understands as the first word in a specific command, and the callback function to call when a command with the starting word is entered. TextCallback is a typedef for the callback function, as defined in the file Command.h.

• int needPrompt -- whether or not the prompt needs to be printed the next time it is possible to do so.

• Stack<FILE *> input_files -- a stack containing the FILE structures for the files to read commands from. When a new file is opened for reading, the currently open file is pushed down on the stack and the new file is put at the top of the stack. When the end of the file is reached, the stack is popped and reading from the new top file is resumed. In this way files may be read in a nested fashion. When the stack is empty, input is read from standard input.

• int doEcho -- flag to indicate if text commands should be echoed back to the console after they have been entered (even if from a file or from the console).

• Inform txtMsgEcho -- the Inform object to use for echoing commands.

• Timer mytimer -- the Timer object is used to measure how long to wait before reading the next message, if the user has requested a waiting period between commands.

• float delay -- the amount of time to wait (in seconds) before attempting to read the next command. Once the waiting period is over, this is set to zero.

Nonvirtual member functions

• int num_commands(void) -- the number of words which this object understands as the first word in a command.

• char *word(int) -- the Nth word that this object understands as the first word in a command.

• void add_command(char *, TextCallback *) -- adds a new word to the UIText vocabulary, and registers the given function as the callback for that word. If the word is already known, this does nothing.

• int process_command(int argc, char **argv) -- given a tokenized text command (one that has been broken up into `argc' individual words, with the words in the `argv' array), this routine checks the first word to see if it is understood, and calls the proper callback function or prints an error message.

• void read_from_file(char *) -- instructs this object to read text commands from the given file until the end-of-file is reached.

• void wait(float) -- instructs this object to wait for the given number of seconds before attempting to read in the next text command.

• int echo(void) -- returns the current echoing status.

• void echo(int yn) -- turns on/off echoing of text commands.

Virtual member functions

• virtual int check_event(void) -- checks to see if a text command has been entered at the console or is available from a file. If so, this reads in the string, and queues a `TextEvent' command (which is a subclass of Command ) containing the string.

• virtual int act_on_command(int, Command *, int) -- called after a text event command is executed. This will take the text command string in the text event, break it into tokens, and if the first word is understood this will call the proper callback function. If this first word is not understood, or the callback function returns an error code, this will print an error message.

Method of use

In the constructor for this object, first the code for the `TextEvent' command is registered as a command this object is interested in, and then all the words this object can understand (with their callback functions) are added to the object's internal list. Each time a new word is added to the VMD vocabulary, a new line must be added in this section to add the callback function (see the discussion of Command , section 6.6.1). The callback functions themselves should be declared in the Cmd*.h files, and defined in the Cmd*.C files.

When a text command is actually to be executed, is it broken into an argc, argv tokenized format, and given to the process_command routine. This searches for the first word in the internal list of known words, and calls the callback function with the argc, argv pair, and also the CommandQueue object to use for queuing new commands as well as the ID of this UIObject .

In the case where Tcl is being used, there is a slightly different order to these events. After a string is read, it is given to the Tcl evaluation routine, which checks it for special Tcl commands or for VMD commands. When VMD commands are seen, Tcl will tokenize the command itself and call a particular Tcl-tailored callback function. This callback function is registered with Tcl for every word in the VMD vocabulary. In this Tcl callback function, the first word is checked, and the regular text callback function is called.

Suggestions for future changes/additions

The reading of commands from files should be converted from the stdio style I/O to the use of the streams library.
