Molecule objects

The following objects are used to store and represent the molecules in VMD, including their static data as well as their dynamic data. Items which have a specific section listed for them are explained in detail in that section.


Table 6.3: VMD molecule objects, part 1.


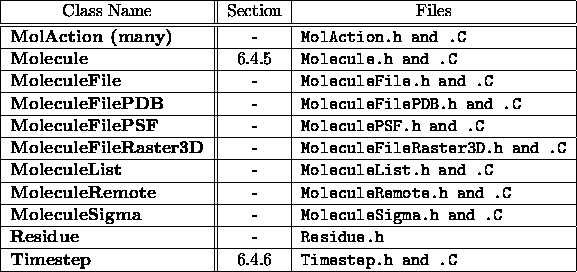

Table 6.4: VMD molecule objects, part 2.

Animation

Description

Animation is a base class for all Molecule objects in VMD . It is responsible for storing the dynamic data for molecule -- those items which vary with time, instead of remaining constant. Animation

stores an animation list, and has controls to add new data to the end of the list, as well as to position a current frame pointer in the list. Each time a Molecule is prepared (by calling it's virtual prepare routine since Molecule is derived from Displayable ), the current position in the animation list is updated.

The Animation consists of basically an array of Timestep

objects. Each Timestep contains the data for the molecule for a single step in the trajectory of the system.

Constructors

• Animation::(void)

Enumerations, lists or character name arrays

The AnimDir enumeration lists the different directions in which the animation can be moving:

• FORWARD: Animation proceeds continually forward each update.
• FORWARD1: Animation goes to the next step, then is PAUSEd.
• REVERSE: Animation proceeds continually backward each update.
• REVERSE1: Animation goes to the prev step, then is PAUSEd.
• PAUSE: Updates to not change the current position in the list.

The AnimPos enumeration lists different positions in the list to which the animation position can jump, or can have new elements inserted or deleted:

• END: The end of the animation list.
• START: The start of the animation list.
• BEFORE: The frame before a specified frame.
• AFTER: The frame after a specified frame.
• DELETE: Unused.
• WRITE: Unused.

The AnimFrames enumeration lists the different ways in which frames can be added or deleted. It is either ALL, or SELECTION.

The AnimStyle enumeration lists the different ways in which animation can be done:

• ONCE: When the animation gets to the end or beginning, it will then pause.
• LOOP: When the animation gets to the end or beginning, loop around to the other end and continue through again in the same direction.
• ROCK: When the animation gets to the end or beginning, reverse direction and continue animating.

Internal data structures

• double lastTime -- the clock time when the last position was determined. This is used to determine if the animation should proceed to a new frame, to control the speed.

• int frameChanged -- whether the animation has changed to a new frame recently.

• int needSetFrameChanged -- when this flag is set, then the frameChanged flag should be changed the next time it is possible to do so.

• ResizeArray<Timestep *> tsList -- the frames themselves.

• int currFrame -- the current frame, an index into tsList.

• int frameSkip -- if we are jumping to a new frame, this indicates the frame to jump to.

• float Speed -- the animation speed, from 0 (slowest) to 1 (fastest).

• AnimPos appendPos -- the method to use the next time a frame is to be appended.

• int appendFrame -- if we are inserting frames, the frame which we are to append before or after.

• AnimDir animDir -- the current animation direction.

• AnimStyle animStyle -- the method for doing animation.

• int moveTo -- if this is not negative, this indicates a frame to which we are to jump the next time the animation position is updated.

• float currTime -- the time which has elapsed since the beginning of the animation.

Nonvirtual member functions

• int num(void) -- returns current number of frames in the list.

• int frame(void) -- returns the current frame number.

• int is_current(void) -- returns whether there is a current frame.

• Timestep *current(void) -- returns the current frame itself, or NULL if there is none.

• Timestep *item(int) -- returns the Nth frame.

• void goto_frame(int) -- jump to the specified frame.

• int has_frame_changed(void) -- returns whether the current frame has been changed recently.

• void delete_animation(void) -- deletes all the currently stored frames.

• void delete_frame(int) -- delete the Nth frame.

• int append_frame(Timestep *) -- adds the given frame to the end of the animation list (or wherever has been previously determined for it to be placed).

• int anim_update(void) -- updates the current position of the animation in the list, based on the current animation mode, and returns the index of the new current frame. Also sets the flags indicating whether the frame has changed. This is called during each call to prepare in the Molecule object.

• void append_end(void) -- indicate to append the next frame at the end of the list.

• void append_start(void) -- indicate to append the next frame at the start of the list.

• void append_after(int) -- indicate to append the next frame after the specified frame.

• void append_before(int) -- indicate to append the next frame before the specified frame.

• void skip(int) -- set the current frame skip rate (the increment by which the current frame pointer is changed).

• int skip(void) -- return the current frame skip rate.

• void anim_dir(AnimDir) -- set the current animation direction.

• AnimDir anim_dir(void) -- return the animation direction.

• void anim_style(AnimStyle) -- set the animation method.

• AnimSTyle anim_style(void) -- return the animation method.

• float speed(float) -- set the speed of the animation.

• float speed(void) -- return the current animation speed.

Method of use

Adding new frames:

1. Set the method for appending, either at the end, or beginning, or before or after some current frame.
2. Call the append routine.

Updating the current position:

Suggestions for future changes/additions

Right now, this is very top-level base class for Molecule , even higher than the BaseMolecule level. The functionality here could probably be rolled into BaseMolecule , so that a single class would have info about the structure and size of the molecule is was storing dynamic data for. Basically, it's backwards to have Animate above BaseMolecule .

Atom

Description

An Atom object stores the data for a single atom in a molecule. Each atom has the following information:

• Mass
• Charge
• Atom name
• Atom type
• Residue name
• Residue ID number
• Chain identifier
• Segment name
• List of bonds

Constructors

• Atom::(int, float *, float *, char *, char *, char *, char *, char *, char *)
  The first argument is the index of the atom; the rest are the names used to distinguish this atom (as mentioned in the list above).

Enumerations, lists or character name arrays

Each atom has a set of `extra' data values, other than it's position. The codes used as indices for these extra data values are:

• ATOMCHARGE
• ATOMMASS
• ATOMBETA
• ATOMOCCUP
• ATOMRAD
• ATOMEXTRA -- the number of `extra' data items.

The BackboneType enumeration lists the different types of backbone bonds which may exist:

• NORMAL -- used if nothing else special about the backbone bond can be determined.
• PROTEINBACK -- used for protein backbone bonds.
• NUCLEICBACK -- used for nucleic acid backbone bonds.

The ResidueType enumeration lists the different classes of residues which this atom may be a part of:

• NOTHING -- not in a residue of any noted special group.
• PROTEIN -- a standard protein residue, i.e. an amino acid.
• NUCLEIC -- a standard nucleic acid resiude, i.e. A,T,G,C, or U.
• WATERS -- a solvent residue, most likely water.

Internal data structures

• int index -- the index of this atom, as provided in the constructor.

• int bonds -- the total number of bonds which this atoms participates in. Note that a bond will be stored twice, once for each of the atoms it connects.

• int uniq_resid -- a unique integer indicating which residue this atom is in. This is not the same as te residue ID, since that is not necessarily unique in a given structure (particularly if the structure contains more than one segment or chain).

• int fragment -- which fragment this atom belongs in.

• int bondTo[MAXATOMBONDS] -- the indices of the other atoms to which this atom is bonded. An atom can bond to a maximum number of other atoms before an error occurs, this maximum is currently 8.

• BackboneType bondType[MAXATOMBONDS] -- lists what type of bond each to the bonds to this atom are.

• BackboneType atomType -- indicates if this atom is part of the backbone, and if so what kind of backbone.

• ResidueType residueType -- what type of residue this atom is a part of.

• float pos[], extra[] -- position and `extra' data values for this atom. These are initial, or `default', values for the atom when no other coordinates or extra values are known.

• char namestr[], int nameindex -- the atom name, and the index of that name in the unique atom name array in the BaseMolecule which created the Atom object.

• char typestr[], int typeindex -- the atom type name, and the index of that name in the unique atomtype name array in the BaseMolecule

  which created the Atom object.

• char resnamestr[], int resnameindex -- the residue name, and the index of that name in the unique residue name array in the BaseMolecule

  which created the Atom object.

• char residstr[], int residindex -- the residue ID, and the index of that name in the unique residue ID array in the BaseMolecule

  which created the Atom object.

• char segnamestr[], int segnameindex -- the segment name, and the index of that name in the unique segment name array in the BaseMolecule which created the Atom object.

• char chainstr[], int chainindex -- the chain ID, and the index of that ID in the unique chain ID array in the BaseMolecule which created the Atom object.

Nonvirtual member functions

• float radius() -- return the atom radius.
• float mass() -- return the atom mass.
• float charge() -- return the atom charge.
• float beta() -- return the atom beta value.
• float occup() -- return the atom occupancy value.

• void add_bond(int, BackboneType) -- add a new bond to this atom, which connects this atom and the specified atom, of the given bond type.

• int bonded(int a) -- return TRUE if this atom is bonded to the specified atom.

Method of use

To create a new Atom , you specify all the names in the constructor, and then add the bonds to the atom one at a time using the add_bond routine. Later, when the molecular structure has been analyzed, the flags indicating the residue type, fragment index, etc. must be set (they are currently public members, so they can be accessed directly).

BaseMolecule

Description

BaseMolecule is the second-highest level in the class hierarchy for Molecule objects; it is derived from Animation , and is used to store the static information for the molecule, which is the basic information about the structure and contents of the system which do not change with time. BaseMolecule has no ability to read in this information itself, instead it provides routines which derived classes call in order to add new molecules, bonds, etc. to the molecule. BaseMolecule has no responsibility for graphically displaying the molecule, either; that is left to the DrawMolecule class, which is derived from BaseMolecule and Displayable .

You do not ever create a BaseMolecule instance directly, instead you create an instance of a class derived from Molecule , for which BaseMolecule is a base class (among others). When initially created, a new BaseMolecule is empty, with zero atoms and zero bonds. The derived classes contain the actual code to read in the molecular structure from a file or from a network connection, and they add the components to the internal storage via routines in BaseMolecule . When all the structure is completely read in, then routine are called in BaseMolecule

to analyze the structure, and calculate such things as what atoms are in what residues, how many residues there are, what are the backbone bonds, etc. In fact, a molecule contains these structural features which are either directly added to BaseMolecule , or calculated by BaseMolecule after the basic structure is read in:

• N atoms, which are added to the system as they are read in from some source. Each atom has associated with it several names, which help to distinguish the atoms and make it possible for the VMD atom selection mechanism to choose subsets of atoms. These names are:
  • The atom name, which is usually a standard chemical nomenclature name. For example, alpha carbons in proteins have the name CA.
  • The atom type, which for some molecular data files is a name from a much smaller set of total names, used to classify atoms into small sets which are more manageable. For example, PSF files use atom types to simplify the parameterization of the atoms for molecular dynamics simulations. If the atom type is not known from the input files, it is just set to be the same as the atom name.
  • The residue name, a three-letter code which is usually quite standard. All glycine amino acids, for example, are in residues with the name GLY.
  • The residue ID, a numeric value assigned to the residues in a molecule, quite often in increasing order from one end of a linear chain to another. Particular useful in proteins, which are unbranched polymers.
  • The chain ID, a single-letter code used to distinguish atoms among different subcomponents of a molecule. If it is unknown for an atom, it is given a default value of `X'.
  • The segment name, similar to the chain ID but allowed to be up to four characters. This is not as standard as the chain ID, and if it is unknown it will be given a default value of MAIN.

• N bonds, which are added to the system as they are read in or calculated by a derived class. The bonds are not stored directly in a list, however; instead, each atom stores a list of the bonds it participates in, which makes it much faster to display the molecule.

• N protein backbone bonds, and N nucleic-acid backbone bonds, which are determined by BaseMolecule after the atoms and bonds are added.

• N residues, where each residue is a collection of atoms and bonds which form some subunit.

• N segments, which each consist of a collection of atoms in a functional substructure within the molecule. For example, quite often a protein is a segment, and surrounding water molecules are another segment.

• N fragments, where each fragment is a collection of connected residues. If a system consists of three disconnected alpha helices, for example, then each helix would be a separate fragment. There are lists of protein fragments as well as nucleic acid fragments.

One other item which BaseMolecule stores is the unique molecule ID number, which is assigned when the molecule is created. Each new molecule in VMD gets assigned an integer ID. The assigned ID values increase by one as each new system is loaded. The commands used to affect the molecules use these ID numbers to determine which molecule the command should affect. The name of the molecule displayed in the Molecule on-screen menu form has this ID number appended to the end of it.

Constructors

• BaseMolecule::(void)

Enumerations, lists or character name arrays

The MoleculeType enumeration lists the different type of molecules which VMD understands. When the structure is analyzed, the type of molecule is determined. The types are:

• UAPROTEIN
• EHPROTEIN
• UAPROTDNA
• EHPROTDNA
• NUCLEIC
• ORGANIC
• INORGANIC

Internal data structures

• MoleculeType type -- type of this molecule (from above list).

• int nAtoms -- number of atoms in this molecule. Can be zero.

• int nBonds -- number of bonds in this molecule.

• int nBackProtein -- number of protein backbone bonds.

• int nBackDNA -- number of nucleic-acid backbone bonds.

• int nResidues -- number of residues.

• int nSegments -- number of segments.

• int ID -- molecule integer ID number.

• int maxAtoms -- maximum storage currently allotted to store the atoms (i.e. size of atomList array, which may be larger than the actual number of atoms stored there).

• Atom **atomList -- array of Atom objects.

• NameList<int> atomNames -- list of unique atom names in this molecule.

• NameList<int> atomTypes -- list of unique atom types in this molecule.

• NameList<int> resNames -- list of unique residue names in this molecule.

• NameList<int> resIds -- list of unique residue ID's in this molecule.

• NameList<int> chainNames -- list of unique chain ID's in this molecule.

• NameList<int> segNames -- list of unique segment names in this molecule.

• ResizeArray<Residue *> residueList -- list of which residues are connected to which.

• ResizeArray<Fragment *> fragList -- list of connected residues, which form fragments.

• ResizeArray<Fragment *> pfragList -- list of connected protein residues which form protein fragments. A protein fragment is a single chain from N to C.

• ResizeArray<Fragment *> nfragList -- list of connected nucleic acid residues, which form nucleic acid fragments. A nucleic acid fragment is a single chain from 5' to 3'.

Nonvirtual member functions

• void init_atoms(int) -- initializes storage to store data for N atoms. This only allocates memory, it does not store anything in that memory. This should be called when constructing a new molecule, when the number of atoms has been determined but before the atom data itself is stored into the BaseMolecule structures.

• int add_atom(char *, char *, char *, char *, char *, char *, float *pos, float *extra) -- add a new atom to the molecule, with the specified names, and given starting x, y, z position ( pos) and given starting extra data (such as beta value and occupancy).

• int add_bond(int, int, Atom::BackboneType = Atom::NORMAL) -- add a new bond between the atoms specified as the first two arguments, where the bond is of the specified type. See the description of Atom for a list of the different bond types.

• int find_backbone(void) -- determines which bonds are backbone bonds, and stores this data in the Atom objects stored in the atomList member. Returns the number of backbone bonds found.

• int find_residues(void) -- find which atoms are in which residues, and store this data. Returns the number of residues found.

• int find_waters(void) -- Find the waters, based on their residue name, and return the number found.

• int find_segments(void) -- Find the segments in the molecule, and store this data. Return the number round.

• int find_fragments(void) -- Find the fragments in the molecule, and store this data. Return the number found.

• int find_atom_in_residue(char *nm, int r) -- find the index of the first atom in the specified residue with the given name, or return -1 if none is found with that name.

• int id(void) -- return the ID of the molecule.

• Atom *atom(int) -- return the Nth Atom for the molecule.

• char *atom_full_name(int, char * = NULL) -- return a string containing the full name specification for the Nth atom. If the second argument is not NULL, the name will be placed in the given character array. Otherwise, an internal static buffer will be used to hold the name. The name is of the form: <mol ID>:<atom index> This name is guaranteed to be unique for each atom.

• char *atom_short_name(int, char * = NULL) -- the same as for the full name, except the name returned is of the form: <residue name><residue ID>:<atom name> This form is nicer to read, but is not generally unique for a given atom.

• float default_charge(char *) -- returns a default partial charge to use for the specified atom name. Used when this information is not supplied by the source of molecular structure. The following routines also supply default data based on a given atom name.

• float default_mass(char *)

• float default_radius(char *)

• float default_occup(char *)

• float default_beta(char *)

Virtual member functions

• virtual int create(void) -- the main virtual routine provided by this class. This is used after a new Molecule subclass has been created (with the required information for reading the molecule given in the constructor). Initially the Molecule is empty; to initialize it, the create() routine is called which will then start the actual process of reading in the data. Each version of create() supplied by the derived classes should, after doing it's own creation, call the create() routine in the parent class. This routine returns the success of the creation operation.

• virtual float scale_factor(void) -- returns (possibly calculating first) the scaling factor required to scale the coordinates for the current timestep to fit in a box from -1 ... 1 in all dimensions.

• virtual void cov(float &, float &, float &) -- return the position of the center of volume of the current coordinate set.

Method of use

A new molecule is first created by using `new' with the proper subclass of Molecule ( Molecule is the `standard' class to use for all molecule objects in VMD ; classes derived from Molecule are specialized to read in data from different sources, while classes above the Molecule

level only deal with some of the information required to store and display and animate a structure.). Then, after the new instance is assigned to a Molecule pointer, then the create() virtual function should be called. This will actually result in all the action being done, for example data files will be read or network connections will be established. The version of create() in BaseMolecule should be called after the molecule has been read in by the derived classes. It analyzes the structure and finds the backbone bonds, fragments, etc. When create() is finished, the molecule is ready to go. If create() does not return TRUE, however, the creation failed (i.e. the files could not be opened), and the new molecule will still be empty.

DrawMolecule

Description

DrawMolecule is derived from BaseMolecule , and is the next level in the Molecule class hierarchy. It embodies the level of control and functionality responsible for creating a graphical image of the molecule. It is derived from Displayable (actually, from Displayable3D), and so will be part of the Scene that will be drawn by a DisplayDevice .

Each DrawMolecule keeps a list of DrawMolItem objects; each DrawMolItem is also a Displayable , and is responsible for a single representation of the molecule. Each representation contains a display list used to draw a single view of the molecule. To define a single representation, each DrawMolItem contains one instance each of the following objects:

• AtomColor -- defines how to color each atom in the representation.
• AtomRep -- defines what shape to draw the components of the representation.
• AtomSel -- determines which atoms out of all the ones in the molecule are to be drawn in that representation.

When a new DrawMolecule is created (i.e. when a new Molecule

is created), it is added as a child Displayable to a global MoleculeList object. Thus, you can rotate just the MoleculeList , and this will rotate all the molecules at the same time. When a molecule is first displayed, it is scaled and translated to fit within a -1 ... 1 size box centered around the origin. In order to have all the molecules be the proper size in relation to each other, and to preserve the spatial position of the molecules, only one molecule is used to determine the scaling and translation positions, and the others then use those same scaling and translation values.

Each DrawMolItem added to this object are added as child Displayable objects of DrawMolecule , and so scaling and rotating the molecule will do so to all the DrawMolItem objects at the same time.

Constructors

• DrawMolecule::(Scene *)
  Specifies the Scene to which to add this object. Should only be used if no MoleculeList is being used.

• DrawMolecule::(Displayable *)
  Specified a parent Displayable to which to add this object as a child. This is the main form used in VMD , as all Molecule objects are added to a global MoleculeList .

Internal data structures

• int active -- is this molecule an active one? This is used by MoleculeList .

• int needRedraw -- a flag indicating whether this item needs to reconstruct its display list during the prepare routine. After the display list is remade, this flag is cleared.

• ResizeArray<DrawMolItem *> repList -- the list of representations.

Nonvirtual member functions

• int atom_displayed(int) -- returns TRUE if any of the representations are currently displaying the given atom.

• int components(void) -- returns the number of representations in the molecule.

• DrawMolItem *component(int) -- return a pointer to the Nth representation.

• int del_rep(int) -- delete the Nth representation, and return the success.

Virtual member functions

• virtual void set_name(char *) -- used to change or set the name of the molecule. Called during the create phase of molecule construction.

• virtual void create_cmdlist(void) -- regenerates the display list, which contains the list of primitive drawing commands necessary to draw the object.

• virtual int create(void) -- the version of create for DrawMolecule ... this is called by derived classes after they have read in and initialized the molecule. The DrawMolecule version of create will then call the BaseMolecule 's create routine, and finally then construct the initial version of the display list.

• virtual void prepare(DisplayDevice *) -- provided since this is a Displayable object. This determines if the display list needs to be reconstructed, and if so it does the reconstruction.

• virtual int add_rep(AtomColor *, AtomRep *, AtomSel *) -- requests for a new representation to be made, using the given objects to describe what the representation should be. Returns success.

• virtual int change_rep(int, AtomColor *, AtomRep *, AtomSel *) -- changes the Nth representation to use the new settings specified in the given objects.

Method of use

The user should never create a DrawMolecule directly; it should instead be used as a base class for Molecule .

Molecule

Description

This is the class used generally throughout VMD to represent and access a molecule. It is derived from several base classes which provide the storage and control over the molecule's structure ( BaseMolecule ), animation list ( Animation ), and graphical display ( DrawMolecule ). It still does not contain the abilities to read in new molecular data from different sources, instead these are in classes derived from Molecule . This class is used as the basic class that all other parts of VMD \ are aware of, since once a molecule is read in from some source, it acts just like any other molecule.

The one level of extra functionality which is provided directly by the Molecule class is the ability to read in new coordinate frames from an external coordinate file, either a PDB or a DCD file.

Constructors

• Molecule::(char *, Scene *)
  The first argument is the source of the data, it is a string indicating either a file, or some remote computer, or perhaps some other source. The second argument is the Scene to which this molecule should be added. This version of the constructor should only be used if no MoleculeList is being used.

• Molecule::(char *, Displayable *)
  Same as above, except a parent Displayable is specified instead of a Scene . This is the version that should be used mainly in VMD , with the global MoleculeList object specified as the parent Displayable for the molecule.

Internal data structures

• char *source -- the source of the molecule structure data.

• ResizeArray<CoorFileData *> coorIOFiles -- data on which files containing atomic coordinates are to be read in by this object. Each CoorFileData instance contains data on which file to read, what type of file it is, and which frames to read from the file. The same data is stored in the case where a file is to be written instead of read.

Nonvirtual member functions

• int read_coor_file(char *, int, int=(-1), int=(-1), int=(-1)) -- request to read in the specified file. The second argument is the type, and the remaining are the beginning frame, ending frame, and frame skip values. If any are not specified or are < 0, default values are used.

• write_coor_file(char *, int, int=(-1), int=(-1), int=(-1)) -- same as above, but requests to write out a file.

Virtual member functions

• virtual void prepare(DisplayDevice *) -- does any preparation necessary before redrawing. If data files are being read, this will read the next frame from them.

Method of use

New molecules are created in VMD in the CmdMolNew object, which is a particular Command -derived object. When a new molecule is to be created, the type of molecule source and necessary data are specified (such as filenames, remote computer names, etc) and given to the constructor of a specialized subclass of Molecule . The resulting (empty) molecule is assigned to a Molecule * pointer variable, and then the virtual create routine is called. After this, the molecule is added to the MoleculeList , and any extra actions are taken such as requesting for more coordinate files to be read, etc.

Timestep

Description

The Timestep class is used to hold the dynamic data for a Molecule

for a single step in a trajectory. It hold the coordinates, velocities, energies, etc. that vary with time. As each new Timestep is read in from some source (a file, or from a network connection) it is added to the animation list for the associated molecule; this list is maintained by the Animation object, from which each Molecule is derived.

Almost all the items in this class are public, so they may be retrieved quickly by other objects in VMD . This is not such a great design, however; see the notes below about future changes.

Constructors

• Timestep::(int n, float DT, float *newdata = NULL)
  The first argument is the number of objects (atoms) for which dynamic data will be stored. The second is the time which has elapsed between generation of this step a previous step (for example, for a molecular dynamics simulation, this would be the integration timestep). The final argument is the data to store in this step, if it has already been allocated. If not, new space will be allocated by Timestep .

Enumerations, lists or character name arrays

There are a number of globally defined macros in this class which are used as indices into the data arrays stored by this object. They are:

1. Energy Data Indices:
   • TSE_BOND -- index to bond energy value.
   • TSE_ANGLE -- index to angle energy value.
   • TSE_DIHE -- index to dihedral energy value.
   • TSE_IMPR -- index to improper dihedral energy value.
   • TSE_VDW -- index to van der Waal energy value.
   • TSE_COUL -- index to Coulomb energy value.
   • TSE_HBOND -- index to hydrogen-bond energy value.
   • TSE_KE -- index to total kinetic energy value.
   • TSE_PE -- index to total potential energy value.
   • TSE_TOTAL -- index to total energy value.
   • TSE_TEMP -- index to temperature value.

2. Per-Atom Data Indices:
   • TSP_X -- x coordinate.
   • TSP_Y -- y coordinate.
   • TSP_Z -- z coordinate.

3. Per-Patch Data Indices:
   • TSP_XLEN -- length of patch in x direction.
   • TSP_YLEN -- length of patch in y direction.
   • TSP_ZLEN -- length of patch in z direction.
   • TSP_LOAD -- computational load on the patch.
   • TSP_ATOMS -- number of atoms in the patch.
   • TSP_NODE -- node which contains the patch.

Internal data structures

• int needDataDelete -- flag for whether we need to delete the storage space for the data array when this object is deleted.

• int num -- number of atoms in this Timestep .

• float *pos -- coordinates of all the atoms. This array has 3 * num elements, arranged as ([x1 y1 z1] [x2 y2 z2] ...).

• float *data -- for each atom, there can be `extra' data, which Timestep does not not know the contents of. This is the data provided as the last argument in the constructor.

• float energy[] -- energy values for this timestep. By default, they are zero unless they are explicitly changed by the creator of this timestep.

• int numPatches -- the number of patches stored in this step. It may be zero (and definitely is zero for data which did not come from a network connection).

• float *patchData -- data stored for each patch (the size, location, atoms per patch, etc.).

• float minpos[], maxpos[], mindata[], maxdata[], etc -- the minimum and maximum values found in this Timestep for the various data quantities. Several parts of VMD need to know the range of data values some quantity takes in a Timestep .

• float COV[] -- the x,y,z position of the center of volume.

• float scale_factor -- the amount by which you would need to scale the coordinates in this step in order to fit them in a box in the range (-1 ... 1) in all dimensions.

• float dt -- the time required to compute this timestep. If this is unknown, it is set to zero.

• int Initialized -- has this been initialized? If so, then all the data items have been placed into the proper arrays, and the max and min values have been calculated.

Nonvirtual member functions

• float *create_patch_storage(int) -- allocates internal storage to store data for the given number of patches. The number of patches is stored internally as well. Returns a pointer to the newly-allocated array.

• void init(void) -- after all the data has been placed into a new Timestep instance, this routine calculate the max/min values for all the quantities, and anything else required based on atom coordinates, etc. Used for scaling and translating purposes.

Method of use

A new Timestep is created each time new coordinate data needs to be added to the end of the animation list. Use the following steps:

1. Create a new instance: Timestep *ts = new Timestep(atoms, dt);

2. Copy coordinate and energy data into the proper arrays, by accessing the public data items described above.

3. If there is patch data, first call create_patch_storage with the number of patches (to allocate storage), and then copy the patch data into the array which is returned by the function.

4. After all data is entered, the last step is to call the init routine. This goes through all the stored quantities (x, y, z position, atoms/patch, etc) and calculates the maximum and minimum values. It also finds the position of the center of volume, and the proper scaling factor.

Suggestions for future changes/additions

This could perhaps benefit from having a NameList store the different quantities, with a specific name associated with each quantity. Then, instead of having to hard-code into Timestep what data is being stored, you could just have a routine to add new items with a given name to the object, and other routines to access data by providing the proper name and index (or maybe just provide the name, and have returned the proper array storing the data).
