Simulation setup and protocols

In this unit you will learn to construct synthetic systems and simulate the passage of ions through a nanopore device.

Building a crystal

In this section, we'll learn how to build a crystalline membrane from its unit cell.

1
Let's take a look at the unit cell in VMD. If you have not already opened VMD, do so now. Open the Tk Console by selecting Extensions $\rightarrow$ Tk Console. Open the directory with the files for this section and load the unit cell by entering the following:

cd ``your working directory''
cd bionano-tutorial-files
cd 1_build
mol new unit_cell_alpha.pdb

Next, select Graphics $\rightarrow$ Representations.... In the Graphical Representations window, set the Drawing Method to CPK. Now we can clearly see the configuration of atoms in the unit cell. This configuration of eight nitrogen atoms and six silicon atoms will form the basis for our extended \ensuremath{\mathrm{Si_{3}N_{4}}} crystal.

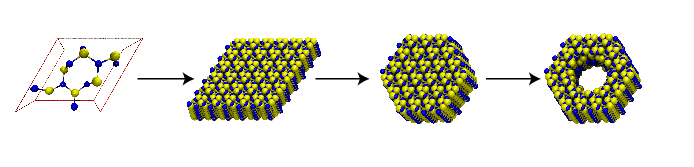

Figure 2: Process of modeling a silicon nitride device. First the unit cell is replicated to form a crystal membrane. This membrane is then cut to a more convenient geometry. Finally, a pore is produced in the membrane by the removal of atoms.
Image silicon

To generate a crystal membrane from the unit cell, we will execute a script included with this tutorial. The main steps in the script are as follows. First, we open an output PDB and write REMARK lines specifying the geometry of the crystal. Next, we read the unit cell PDB, extracting the records for each atom. We then generate the crystal by repeatedly writing the atom records from the unit cell PDB to the output PDB, albeit with new positions that are displaced by periodic lattice vectors. In the following part of the tutorial, the script, replicateCrystal.tcl, we will use to generate the crystal is presented. Each portion of the script is preceded by text describing how it works. If you'd like to move on with the tutorial without examining the details of the script, simply skip ahead to page [*].

As will be common to most of the scripts presented in this tutorial, the first section of the script defines variables that act as the arguments of the script. The names of input and output files will often appear here, as in the case below, where the name of the PDB file containing the crystal's unit cell is stored in unitCellPdb and that of the resultant PDB is stored in outPdb. The variables n1, n2, and n3 determine the number of times that the unit cell will be replicated along the respective crystal axis. The remaining variables describe the geometry of the unit cell. The unit cell is a parallelepiped with sides of lengths l1, l2, and l3 along directions given by the unit vectors basisVector1, basisVector2, and basisVector3. Thus, the set of vectors {$\mathbf{a}_1$, $\mathbf{a}_2$, $\mathbf{a}_3$}, where $\mathbf{a}_i=l_i\,\mathbf{basisVector}_i$, generates the translational symmetry of the lattice.



replicateCrystal.tcl

# Read the unit cell of a pdb and replicate n1 by n2 by n3 times.
# Input:
set unitCellPdb unit_cell_alpha.pdb
# Output:
set outPdb membrane.pdb
# Parameters:
# Choose n1 and n2 even if you wish to use cutHexagon.tcl.
set n1 6
set n2 6
set n3 6
set l1 7.595
set l2 7.595
set l3 2.902
set basisVector1 [list 1.0 0.0 0.0]
set basisVector2 [list 0.5 [expr sqrt(3.)/2.] 0.0]
set basisVector3 [list 0.0 0.0 1.0]

The two following Tcl procedures extract data from the PDB. The first returns a list of 3D vectors corresponding to the {$x$ $y$ $z$} coordinates of each atom in the unit cell. The second simply extracts each line atom record from the PDB and returns it as a list.

# Return a list with atom positions.
proc extractPdbCoords {pdbFile} {
     set r {}

     # Get the coordinates from the pdb file.
     set in [open $pdbFile r]
     foreach line [split [read $in] \n] {
          if {[string equal [string range $line 0 3] "ATOM"]} {
               set x [string trim [string range $line 30 37]]
               set y [string trim [string range $line 38 45]]
               set z [string trim [string range $line 46 53]]

               lappend r [list $x $y $z]
          }
     }
     close $in
     return $r
}

# Extract all atom records from a pdb file.
proc extractPdbRecords {pdbFile} {
     set in [open $pdbFile r]

     set pdbLine {}
     foreach line [split [read $in] \n] {
          if {[string equal [string range $line 0 3] "ATOM"]} {
               lappend pdbLine $line
          }
     }
     close $in

     return $pdbLine
}

Given the coordinates of all atoms in the unit cell, the displaceCell procedure shifts them by a lattice vector. In other words, this procedure is where the crystal is actually replicated--the basis on which the rest of the script rests.

# Shift a list of vectors by a lattice vector.
proc displaceCell {rUnitName i1 i2 i3 a1 a2 a3} {
     upvar $rUnitName rUnit
     # Compute the new lattice vector.
     set rShift [vecadd [vecscale $i1 $a1] [vecscale $i2 $a2]]
     set rShift [vecadd $rShift [vecscale $i3 $a3]]

     set rRep {}
     foreach r $rUnit {
          lappend rRep [vecadd $r $rShift]
     }
     return $rRep
}

The procedure makePdbLine is essential to the correct formation of the output PDB. The lines of the unit cell PDB obtained by extractPdbRecords are altered to reflect the new coordinates of the translated unit cells.

# Construct a pdb line from a template line, index, resId, and coordinates.
proc makePdbLine {template index resId r} {
     foreach {x y z} $r {break}
     set record "ATOM  "
     set si [string range [format "     %5i " $index] end-5 end]
     set temp0 [string range $template 12 21]
     set resId [string range "    $resId"  end-3 end]
     set temp1 [string range $template  26 29]
     set sx [string range [format "       %8.3f" $x] end-7 end]
     set sy [string range [format "       %8.3f" $y] end-7 end]
     set sz [string range [format "       %8.3f" $z] end-7 end]
     set tempEnd [string range $template 54 end]

     # Construct the pdb line.
     return "${record}${si}${temp0}${resId}${temp1}${sx}${sy}${sz}${tempEnd}"
}

The final procedure drives the script. The series of puts commands near the top of the procedure store the geometry of the crystal in REMARK lines in the output PDB. These lines will be needed later when we modify the shape of the crystal. The lattice vectors are defined by

\begin{displaymath}\mathbf{R}(i,j,k) = i \mathbf{a}_1 + j \mathbf{a}_2 + k \mathbf{a}_3,\end{displaymath}

where $i$, $j$, and $k$ are integers. The main loop iterates through all unique ($i$,$j$,$k$) for $0 \leq\ i < n_1$, $0 \leq\ j < n_2$, and $0 \leq\ k < n_3$, producing a crystal.

# Build the crystal.
proc main {} {
     global unitCellPdb outPdb
     global n1 n2 n3 l1 l2 l3 basisVector1 basisVector2 basisVector3

     set out [open $outPdb w]
     puts $out "REMARK Unit cell dimensions:"
     puts $out "REMARK a1 $a1"
     puts $out "REMARK a2 $a2"
     puts $out "REMARK a3 $a3"
     puts $out "REMARK Basis vectors:"
     puts $out "REMARK basisVector1 $basisVector1"
     puts $out "REMARK basisVector2 $basisVector2"
     puts $out "REMARK basisVector3 $basisVector3"
     puts $out "REMARK replicationCount $n1 $n2 $n3"

     set a1 [vecscale $l1 $basisVector1]
     set a2 [vecscale $l2 $basisVector2]
     set a3 [vecscale $l3 $basisVector3]

     set rUnit [extractPdbCoords $unitCellPdb]
     set pdbLine [extractPdbRecords $unitCellPdb]
     puts "\nReplicating unit $unitCellPdb cell $n1 by $n2 by $n3..."

     # Replicate the unit cell.
     set atom 1
     set resId 1
     for {set k 0} {$k < $n3} {incr k} {
          for {set j 0} {$j < $n2} {incr j} {
               for {set i 0} {$i < $n1} {incr i} {
                    set rRep [displaceCell rUnit $i $j $k $a1 $a2 $a3]

                    # Write each atom.
                    foreach r $rRep l $pdbLine {
                         puts $out [makePdbLine $l $atom $resId $r]
                         incr atom
                    }
                    incr resId

                    if {$resId > 9999} {
                         puts "Warning! Residue overflow."
                         set resId 1
                    }
               }
          }
     }
     puts $out "END"
     close $out

     puts "The file $outPdb was written successfully."
}

main

2
To execute the script, enter source replicateCrystal.tcl in the VMD Tk Console.

3
We will now edit the script replicateCrystal.tcl in order to make a thicker \ensuremath{\mathrm{Si_{3}N_{4}}} block. Open the file replicateCrystal.tcl in your text editor of choice, e.g., by typing nedit replicateCrystal.tcl & in the terminal window. First, change the line 8 to set outPdb block.pdb. Next change the value of n3 by altering line 13 to read set n3 16. Save the file and exit the text editor.

4
To generate this thicker block of \ensuremath{\mathrm{Si_{3}N_{4}}}, execute the modified script by entering source replicateCrystal.tcl as before.

5
We've now created two \ensuremath{\mathrm{Si_{3}N_{4}}} crystals. To view the first, type the following in the Tk Console window:

mol delete all
mol new membrane.pdb

This is the membrane that we will use for ionic current measurement and DNA translocation. Notice that the cross section of the system in $xy$-plane is parallelogram.

6
Similarly, open the thicker block, which we'll use in Task 1. Enter the following:

mol delete all
mol new block.pdb

Constructing synthetic nanopores

Now we'll construct a nanopore in our \ensuremath{\mathrm{Si_{3}N_{4}}} membranes.

Our subsequent MD simulations will use periodic boundary conditions, so the shape of our system must be such that the \ensuremath{\mathrm{Si_{3}N_{4}}} lattice matches at the system's boundaries. A hexagonal prism shape can match this lattice and is more convenient than the parallelpiped we just created for housing a nanopore with a roughly circular cross section. In the script for this purpose, we first obtain the crystal geometry from the REMARK lines in the PDB and write a file describing the hexagonal periodic boundary conditions. Next, for convenience, we shift the crystal so that its centroid coincides with the origin of the coordinate system. We finally copy the atom records from the input PDB to the output PDB, skipping those that do not lie within the hexagonal prism. If you'd like to skip the details of this script, move on to page [*].

The first section again contains what serves as arguments to the script. To save time when the script is altered to act on different files, a file name prefix is defined which gives the output files systematic names based on the name of the input file. In addition to cutting the system to a hexagonal prism, the script cutHexagon.tcl also produces a boundary file (with a .bound extension) that contains the periodic simulation cell vectors needed to form bonds between atoms at the boundaries and run simulations in NAMD.



cutHexagon.tcl

# Remove atoms from a pdb outside of a hexagonal prism
# along the z-axis with a vertex along the x-axis.
# Also write a file with NAMD cellBasisVectors.

set fileNamePrefix membrane
# Input:
set pdbIn ${fileNamePrefix}.pdb
# Output:
set pdbOut ${fileNamePrefix}_hex.pdb
set boundaryFile ${fileNamePrefix}_hex.bound
set pdbTemp tmp.pdb

This procedure executes VMD's measure center method to center the system at the origin, which is done for convenience.

# Write a pdb with the system centered.
proc centerPdb {pdbIn pdbOut} {
     mol new $pdbIn
     set all [atomselect top all]
     set cen [measure center $all]
     $all moveby [vecinvert $cen]
     $all writepdb $pdbOut
     $all delete
     mol delete top
}

The procedure readGeometry extracts the crystal geometry from the REMARK lines we added to the PDB in last script and writes the boundary file mentioned above.

# Read the geometry of the system and write the boundary file.
# Return the radius of the hexagon.
proc readGeometry {pdbFile boundaryFile} {
     # Extract the remark lines from the pdb.
     mol new $pdbFile
     set remarkLines [lindex [molinfo top get remarks] 0]
     foreach line [split $remarkLines \n] {
          if {![string equal [string range $line 0 5] "REMARK"]} {continue}
          set tok [concat [string range $line 7 end]]

          set attr [lindex $tok 0]
          set val [lrange $tok 1 end]
          set remark($attr) $val
          puts "$attr = $val"
     }
     mol delete top

     # Deterimine the lattice vectors.
     set vector1 [vecscale $remark(basisVector1) $remark(a1)]
     set vector2 [vecscale $remark(basisVector2) $remark(a2)]
     set vector3 [vecscale $remark(basisVector3) $remark(a3)]

     foreach {n1 n2 n3} $remark(replicationCount) {break}
     set pbcVector1 [vecadd [vecscale $vector1 [expr $n1/2]] \
     [vecscale $vector2 [expr $n2/2]]]
     set pbcVector2 [vecadd [vecscale $vector1 [expr -$n1/2] ] \
     [vecscale $vector2 [expr $n2]]]
     set pbcVector3 [vecscale $vector3 $n3]

     puts ""
     puts "PERIODIC VECTORS FOR NAMD:"
     puts "cellBasisVector1          $pbcVector1"
     puts "cellBasisVector2          $pbcVector2"
     puts "cellBasisVector3          $pbcVector3"
     puts ""

     set radius [expr 2.*[lindex $pbcVector1 0]/3.]
     puts "The radius of the hexagon: $radius"

     # Write the boundary condition file.
     set out [open $boundaryFile w]
     puts $out "radius           $radius"
     puts $out "cellBasisVector1 $pbcVector1"
     puts $out "cellBasisVector2 $pbcVector2"
     puts $out "cellBasisVector3 $pbcVector3"
     close $out

     return $radius
}

Here, in the procedure cutHexagon, we read each atom record from the input PDB and extract the serial number and coordinates. The record is then written to the output PDB if and only if the position of the atom is within a hexagon of radius $R$ in the $xy$-plane, centered at the origin, which has a vertex along the $x$-axis. All three of the following geometric criteria must hold:

\begin{displaymath}\begin{array}{ccccc}
-\frac{\sqrt{3}}{2}R & < & y & < & \frac...
...R),\\
\sqrt{3}(-x-R) & < & y & < & \sqrt{3}(-x+R).
\end{array}\end{displaymath}

proc cutHexagon {r pdbIn pdbOut} {
     set sqrt3 [expr sqrt(3.0)]

     # Open the pdb to extract the atom records.
     set out [open $pdbOut w]
     set in [open $pdbIn r]
     set atom 1
     foreach line [split [read $in] \n] {
          set string0 [string range $line 0 3]

          # Just write any line that isn't an atom record.
          if {![string match $string0 "ATOM"]} {
               puts $out $line
               continue
          }

          # Extract the relevant pdb fields.
          set serial [string range $line 6 10]
          set x [string range $line 30 37]
          set y [string range $line 38 45]
          set z [string range $line 46 53]

          # Check the hexagon bounds.
          set inHor [expr abs($y) < 0.5*$sqrt3*$r]
          set inPos [expr $y < $sqrt3*($x+$r) && $y > $sqrt3*($x-$r)]
          set inNeg [expr $y < $sqrt3*($r-$x) && $y > $sqrt3*(-$x-$r)]

          # If atom is within the hexagon, write it to the output pdb
          if {$inHor && $inPos && $inNeg} {
               # Make the atom serial number accurate if necessary.
               if {[string is integer [string trim $serial]]} {
                    puts -nonewline $out "ATOM  "
                    puts -nonewline $out \
                    [string range [format "     %5i " $atom] end-5 end]
                    puts $out [string range $line 12 end]

               } else {
                    puts $out $line
               }

               incr atom
          }
     }
     close $in
     close $out
}

In the main part of the script, we extract the radius of the hexagon and write the boundary file, center the crystal, and finally cut the crystal into a hexagonal prism.

set radius [readGeometry $pdbIn $boundaryFile]
centerPdb $pdbIn $pdbTemp
cutHexagon $radius $pdbTemp $pdbOut

1
Enter source cutHexagon.tcl in the Tk Console. The script acts on membrane.pdb, producing the file membrane_hex.pdb. We also need to cut block.pdb to a hexagonal prism.

2
Open cutHexagon.tcl in your text editor. Change line 7 to read set fileNamePrefix block and save the file. Execute the script by reentering
source cutHexagon.tcl in the Tk Console.

3
Let's look at our system in VMD to make sure it has been cut into a hexagonal prism correctly. Type:

mol delete all
mol load pdb membrane_hex.pdb

4
Also, look at the second system. Enter mol delete all and mol load pdb block_hex.pdb in the Tk Console.

Now we'll shape our crystals into nanopore devices. The script drillPore.tcl has been designed for this purpose. We'll produce a pore with the shape of two intersecting cones, which has hourglass-like cross sections in the $xz$- or $yz$- planes. First, we read the length of the pore along the $z$-axis from the boundary file. Subsequently, we remove atoms from the PDB file that are within the pore. You can skip the details of this script by turning to page [*].

The parameters radiusMin and radiusMax define the minimum and maximum radius of the double-cone pore.



drillPore.tcl

# Cut a double-cone pore in a membrane.

# Parameters:
set radiusMin 8
set radiusMax 15
# Input:
set pdbIn membrane_hex.pdb
set boundaryFile membrane_hex.bound
# Output:
set pdbOut pore.pdb
set boundaryOut pore.bound

This procedure extracts the length of the pore along the $z$-axis, which is necessary for defining the geometry of the double cone pore.

# Get cellBasisVector3_z from the boundary file.
proc readLz {boundaryFile} {
     set in [open $boundaryFile r]
     foreach line [split [read $in] \n] {
          if {[string match "cellBasisVector3 *" $line]} {
               set lz [lindex $line 3]
               break
          }
     }
     close $in
     return $lz
}

In a membrane of thickness $l_z$, the cylindrical coordinate $s$ that corresponds to the radius of the pore at height $z$ for a double cone with a center radius of $s_{\mathrm{min}}$ and a maximum radius of $s_{\mathrm{max}}$ is given by

\begin{displaymath}s(z) = s_{\mathrm{min}} + 2\frac{s_{\mathrm{max}}-s_{\mathrm{min}}}{l_z}
\left\vert z\right\vert.\end{displaymath}

Whether the point $(x,y,z)$ is within the pore is determined by

\begin{displaymath}x^2 + y^2 < s(z)^2.\end{displaymath}

Later, in Task 1, you will modify a similar procedure to produce a topologically more complicated pore.

# Determine whether the position {x y z} is inside the pore and
# should be deleted.
proc insidePore {x y z sMin sMax} {
     # Get the radius for the double cone at this z-value.
     set s [expr $sMin + 2.0*($sMax-$sMin)/$lz*abs($z)]

     return [expr $x*$x + $y*$y < $s*$s]
}

The final procedure is nearly identical to the cutHexagon procedure in cutHexagon.tcl. It writes only lines satisfying geometrical constraints, this time given by the result of the procedure insidePore.

proc drillPore {sMin sMax lz pdbIn pdbOut} {
     set sqrt3 [expr sqrt(3.0)]

     # Open the pdb to extract the atom records.
     set out [open $pdbOut w]
     set in [open $pdbIn r]
     set atom 1
     foreach line [split [read $in] \n] {
          set string0 [string range $line 0 3]

          # Just write any line that isn't an atom record.
          if {![string match $string0 "ATOM"]} {
               puts $out $line
               continue
          }

          # Extract the relevant pdb fields.
          set serial [string range $line 6 10]
          set x [string range $line 30 37]
          set y [string range $line 38 45]
          set z [string range $line 46 53]

          # If atom is outside the pore, write it to the output pdb.
          # Otherwise, exclude it from the resultant pdb.
          if {![insidePore $x $y $z $sMin $sMax]} {
               # Make the atom serial number accurate if necessary.
               if {[string is integer [string trim $serial]]} {
                    puts -nonewline $out "ATOM  "
                    puts -nonewline $out \
                    [string range [format "     %5i " $atom] end-5 end]
                    puts $out [string range $line 12 end]

               } else {
                    puts $out $line
               }

               incr atom
          }
     }
     close $in
     close $out
}

set lz [readLz $boundaryFile]
drillPore $radiusMin $radiusMax $lz $pdbIn $pdbOut

5
In the Tk Console, enter source drillPore.tcl.

6
Let's examine the pore we just created in VMD. Enter mol delete all and mol load pdb pore.pdb in the Tk Console. Setting the Drawing Method to VDW and the Selected Atoms edit box to abs(y) < 5 should make the double pore cross section apparent.

7
The file produced, pore.pdb, needs an accompanying boundary file. In the Tk Console, enter cp membrane_hex.bound pore.bound.

\fbox{
\begin{minipage}{.2\textwidth}
\end{minipage} \begin{minipage}[r]{.75\te...
...\textit{Biophysical Journal} \textbf{87}, 2905--2911 (2004)).}
\end{minipage} }

\framebox[\textwidth]{
\begin{minipage}[r]{.75\textwidth}
\noindent\small\text...
...udegraphics[width=2.3 cm]{pictures/ypore.png}}
\end{minipage}}
\end{minipage} }

Generating the structure file

We've constructed two crystalline membranes and, from them, two nanopores; however, we have only generated atom coordinates. We have not defined bonds of any sort between the atoms. In this section, we'll construct a PSF file that describes the bonds (connections between two atoms) and angles (connections between three atoms) in our systems as well as other items needed for subsequent MD simulations. To do this we'll use the script siliconNitridePsf.tcl. This script is somewhat longer than those we have seen thus far, so its description has been left to the appendix.

A quick synopsis of the script's operation is as follows. The first step is to find bonds simply by searching for atoms that are within some threshold distance of one another. However, this step misses bonds that exist across the periodic boundaries. To find these, we displace the system by the periodic cell vectors and find bonds between the original system and its periodic image (Fig. 3). Next we determine the angles and then finally write all of the information to a PSF file.

Figure 3: Bonding to periodic images. The periodic image is produced by translating the system by a periodic cell vector. To find bonds across the periodic boundary, a distance search is performed between the original coordinates of the atoms and those in each periodic image.
Image periodic_image

You may be used to calling upon psfgen to produce the structure files for proteins and other biomolecules. This would be possible for \ensuremath{\mathrm{Si_{3}N_{4}}} as well. However, due to the nature of the material, it is somewhat more straightforward to generate the PSF directly as we do with this script.

1
We'll now build the PSF structure file for our membrane. Type source siliconNitridePsf.tcl in the Tk Console. The structure information for our pore is now contained in pore.psf.

2
Let's also build the structure for the pristine membrane. Change line 5 of siliconNitridePsf.tcl to set fileNamePrefix membrane_hex. Since we will use the pristine membrane to calibrate the dielectric constant of the silicon nitride, we do not want any surfaces. Change line 16 to read set zPeriodic 1. Save the script and then execute it.

3
Take a look at the system in VMD by entering mol delete all and mol load psf pore.psf pdb pore.pdb in the Tk Console. Select Graphics $\rightarrow$ Representations.... Notice that there appear to be bonds crisscrossing the pore. This occurs because VMD can't correctly display bonds across the periodic boundaries. Set the drawing method Drawing Method to VDW, which does not illustrate bonds. The pore should now be clearly visible.

\framebox[\textwidth]{
\begin{minipage}{.2\textwidth}
\end{minipage} \begin{min...
...es
its absolute value, which is negligible for most purposes.}
\end{minipage} }

Calibrating the force field

Bionanotechnology enters uncharted territory by placing together biomolecules and synthetic materials that have rarely been studied in contact. In addition, simulations of inorganic solids such as \ensuremath{\mathrm{Si_{3}N_{4}}} usually employ vastly different methods than those used in computational molecular biology. Thus, simulating systems with both synthetic and biomolecular constituents is challenging and, in general, an unsolved problem. Because much research in bionanotechnology involves electrostatic interactions between biomolecules and silicon-based materials, we'll focus on getting our \ensuremath{\mathrm{Si_{3}N_{4}}} model to reproduce experimental data for just one property: the dielectric constant. With this model we can expect to have a realistic electric field within the pore.

To determine the dielectric constant, we will apply an electric field to a block of \ensuremath{\mathrm{Si_{3}N_{4}}} with no free surfaces and measure the electric dipole moment. Hence, we will use the structure membrane_hex.psf that we generated in the last section, for which we generated bonds along all three lattice directions.

1
Type cd ../2_calibrate/ in the Tk Console.

2
Open the parameter file par_silicon_ions_NEW0.1.inp in your text editor. Notice that the file has three sections. The first two give energy function parameters for harmonic bonds and harmonic angle bending between two bonds, respectively. The last gives the parameters for the non-bonded interactions. You may close the file now.

We take the non-bonded parameters, as well as the values for the partial charges on the \ensuremath{\mathrm{Si}} and \ensuremath{\mathrm{N}} atoms in siliconNitridePsf.tcl, from quantum mechanical calculations using the biased Hessian method (John A. Wendell and William A. Goddard III, Journal of Chemical Physics 97, 5048-5062 (1992)). However, the bonded interactions from the same source lead to a dielectric constant that is practically the same as a vacuum (1.0). To overcome this, we set the bonded interaction constants to be much lower than those given in the reference. In this section, we'll set them to 0.1 $\mathrm{kcal/(mol\ \AA)}$. To match the experimental dielectric constant we include in our force field harmonic restraints, which can easily be applied in NAMD, that pull each atom of \ensuremath{\mathrm{Si_{3}N_{4}}} towards its equilibrium position in the \ensuremath{\mathrm{Si_{3}N_{4}}} crystal. It is the spring constant associated with these constraint forces that we will calibrate to reproduce the experimentally-determined dielectric constant of \ensuremath{\mathrm{Si_{3}N_{4}}}.

\framebox[\textwidth]{
\begin{minipage}{.2\textwidth}
\end{minipage} \begin{min...
...e {\tt chargeSi} in the PSF
generating script (See Appendix).}
\end{minipage} }

3
The Tcl script constrainSilicon.tcl produces PDB files where the spring constant is placed in the B (known in VMD as beta) column of the PDB. Open the script in your text editor. A constraint PDB will be produced for each spring constant ( $\mathrm{kcal/(mol\
\AA^2)}$) in the list defined in line 7. We'll determine the dielectric constant for values 1.0 and 10.0. Hence, change line 7 of the script to set betaList {1.0 10.0}. Execute constrainSilicon.tcl, whose contents follow.



constrainSilicon.tcl

# Add harmonic constraints to silicon nitride.

# Parameters:
# Spring constant in kcal/(mol A^2)
set betaList {1.0}
set selText "resname SIN"
set surfText "(name \"SI.*\" and numbonds<=3) \
or (name \"N.*\" and numbonds<=2)"
# Input:
set psf ../1_build/membrane_hex.psf
set pdb ../1_build/membrane_hex.pdb
# Output:
set restFilePrefix siliconRest

mol load psf $psf pdb $pdb
set selAll [atomselect top all]

# Set the spring constants to zero for all atoms.
$selAll set occupancy 0.0
$selAll set beta 0.0

# Select the silicon nitride.
set selSiN [atomselect top $selText]

# Select the surface.
set selSurf [atomselect top "(${selText}) and (${surfText})"]

foreach beta $betaList {
     # Set the spring constant for SiN to this beta value.
     $selSiN set beta $beta
     # Constrain the surface 10 times more than the bulk.
     $selSurf set beta [expr 10.0*$beta]
     # Write the constraint file.
     $selAll writepdb ${restFilePrefix}_${beta}.pdb
}
$selSiN delete
$selSurf delete
$selAll delete
mol delete top

4
Since the silicon atoms are already in their equilibrium positions, we'll forgo the energy minimization step in the usual simulation sequence. Instead, we'll start by raising the temperature gradually to 295 K. During this time, we'll use constraints of 1.0 $\mathrm{kcal/(mol\
\AA^2)}$.

Before we start, however, we need to put the system dimensions in the NAMD configuration file eq1.namd. Open it and 1_build/membrane_hex.bound (if you did not use InorganicBuilder), which we generated in Section 1.2, in your text editor. If you used InorganicBuilder, refer instead to the vectors you recorded. Copy the values of cellBasisVector1, cellBasisVector2, and cellBasisVector3 into lines 8, 9, and 10, respectively, of the configuration file. Also, examine the constraint parameters at the bottom of the file. Save the configuration file and exit the text editor.

5
Enter namd2 eq1.namd > eq1.log to raise the system's temperature. This may take a couple of minutes.

6
To equilibrate the system at constant temperature, enter namd2 eq2.namd > eq2.log.

7
Next we compute the dielectric constant for each constraint value. To do this, we calculate the difference between the dipole moments of identical systems with and without an applied electric field. Open the files field.namd and null.namd in your text editor. Modify line 2 to read set constraint 1.0. First simulate the system without the applied electric field by entering namd2 null.namd >! null1.0.log and then with a field of 16 kcal/(mol Å e) by entering namd2 field.namd >! field1.0.log. Do the same for the other constraint value, i.e., alter the variable constraint in field.namd and null.namd and run NAMD.

8
We'll now compute the electric dipole moment for each run and from these calculate the dielectric constant for the material. Open the script dipoleMomentZDiff.tcl in your text editor. The script operates by loading DCD trajectory files for the system with and without an applied field. We then compute the dipole moment for each frame and write the time (ns) in the first column and the difference in the dipoles (e Å) in the second column of a text file.

The values of dcdFreq and timestep, taken from the NAMD configuration file, allow us to determine the time between the frames of the DCD trajectory file. We'll set the variable startFrame to 4 to give the system 500 fs to equilbrate before computing the dipole moment. The electric dipole moment is computed by VMD's measure dipole command which employs the following formula. For a set of $N$ atoms with partial charges $q_i$ and positions $\mathbf{r}_i$ the electric dipole moment is

\begin{displaymath}\mathbf{p} = \sum_{i=1}^{N}(q_i - q_0) \mathbf{r}_i,\end{displaymath}

where $q_0 = \frac{1}{N}\sum_{i=1}^{N} q_i$. Subtraction of $q_0$, the monopole component, makes the result independent of the choice of the origin. Finally, the script computes the average of the difference in the dipole moments and the associated standard error.



dipoleMomentZDiff.tcl

# Calculate dipole moment of the selection
# for a trajectory.

set constraint 10.0
set dcdFreq 100
set selText "all"
set startFrame 0
set timestep 1.0

# Input:
set psf ../1_build/membrane_hex.psf
set dcd field${constraint}.dcd
set dcd0 null${constraint}.dcd
# Output:
set outFile dipole${constraint}.dat

# Get the time change between frames in femtoseconds.
set dt [expr $timestep*$dcdFreq]

# Load the system.
set traj [mol load psf $psf dcd $dcd]
set sel [atomselect $traj $selText]
set traj0 [mol load psf $psf dcd $dcd0]
set sel0 [atomselect $traj0 $selText]

# Choose nFrames to be the smaller of the two.
set nFrames [molinfo $traj get numframes]
set nFrames0 [molinfo $traj0 get numframes]
if {$nFrames0 < $nFrames} {set nFrames $nFrames}
puts [format "Reading %i frames." $nFrames]

# Open the output file.
set out [open $outFile w]

# Start at "startFrame" and move forward, computing
# the dipole moment at each step.
set sum 0.
set sumSq 0.
set n 1
puts "t (ns)\tp_z (e A)\tp0_z (e A)\tp_z-p0_z (e A)"
for {set f $startFrame} {$f < $nFrames && $n > 0} {incr f} {
     $sel frame $f
     $sel0 frame $f

     # Obtain the dipole moment along z.
     set p [measure dipole $sel]
     set p0 [measure dipole $sel0]
     set z [expr [lindex $p 2] - [lindex $p0 2]]

     # Get the time in nanoseconds for this frame.
     set t [expr ($f+0.5)*$dt*1.e-6]

     puts $out "$t $z"
     puts -nonewline [format "FRAME %i: " $f]
     puts "$t\t[lindex $p 2]\t[lindex $p0 2]\t$z"

     set sum [expr $sum + $z]
     set sumSq [expr $sumSq + $z*$z]
}
close $out

# Compute the mean and standard error.
set mean [expr $sum/$nFrames]
set meanSq [expr $sumSq/$nFrames]
set se [expr sqrt(($meanSq - $mean*$mean)/$nFrames)]

puts ""
puts "********Results: "
puts "mean dipole: $mean"
puts "standard error: $se"
mol delete top
mol delete top

9
Execute the script dipoleMomentZDiff.tcl twice, setting constraint (in line 6 of the script) to each of the values in our simulations. Be sure to write down the mean dipole and standard error for each.

10
Plot the time versus dipole moment data stored the resulting files dipole10.0.dat and dipole1.0.dat. You should see that the dipole moments are changing little with time by the end of the simulation and that the values are significantly different for the two different constraint parameters.

11
To calculate the dielectric constant we apply the formula

\begin{displaymath}\kappa = 1 + \frac{\Delta p}{\epsilon_0 E V},\end{displaymath}

where ${\Delta p}$ is the magnitude of the difference in the dipole moment between identical systems with and without an electric field, $E$ is the magnitude of the applied electric field, and $V$ is the volume of the system dielectric material (See Dong Xu, et al., The Journal of Physical Chemistry 100, 12108-12121 (1996) for further discussion). The permittivity of free space is given in NAMD units by $\epsilon_0 = 2.398 \times 10^{-4}\,
\mathrm{(mol\ e^2)/(kcal\ \AA)}$. We can calculate the volume of our hexagonal prism by

\begin{displaymath}V = \frac{3 \sqrt{3}}{2} R^2 l_z,\end{displaymath}

where $R$ is the radius of the hexagon and $l_z$ is the height of the prism. Obtaining $R$ and $l_z$ from membrane_hex.bound, we find $V = 23485\ \mathrm{\AA^3}$. Given that $E = 16.0\
\mathrm{kcal/(mol\ \AA\ e)}$ calculate the dielectric constants for the two constraint values using the mean dipole values. Note that you can use the form Tk Console as a calculator by typing expr commands. Is the difference in the dielectric constant between the two significant?

This section is only meant to be a demonstration of how the calibration is performed. Sampling the entire parameter space takes a good deal of time, but you should now have a good understanding of how to calibrate the constraints to reproduce the experimental dielectric constant. In subsequent sections, we will use a parameter file with the bond constants set to 5.0 $\mathrm{kcal/(mol\
\AA^2)}$ and a constraint file with constants of 1.0 $\mathrm{kcal/(mol\
\AA^2)}$, which have been found to be optimal by the procedure above.

Solvating the nanopore

Now that we've demonstrated how to calibrate the force field of our \ensuremath{\mathrm{Si_{3}N_{4}}} model, we're ready to prepare our nanopore for simulations.

1
In the Tk Console, type cd ../3_solvate/.

All biological systems rely on water to function. If our synthetic device is to interact with them, it must be immersed in water.

2
Open the system we wish to solvate by entering mol load psf ../1_build/pore.psf pdb ../1_build/pore.pdb in the Tk Console.

3
To open the Solvate plugin, select Extensions $\rightarrow$ Modeling $\rightarrow$ Add Solvation Box from the VMD menu.

4
You should already see ../1_build/pore.psf and ../1_build/pore.pdb in the edit boxes labeled PSF and PDB, respectively. Set Output to pore_solv. Since we wish to have water above and below the membrane, set the minimum and maximum Box Padding in the direction z to 20.

5
Press Solvate.

6
Notice that the Solvate plugin adds the water in a right rectangular prism, which does not conform to our hexagonal prism periodic boundary conditions. Type mol delete all in the Tk Console.

We'll now remove water from outside of the hexagonal boundaries with the script cutWaterHex.tcl. It uses VMD's atom selection interface to obtain the set {segname, resid, name}, which uniquely specifies each atom, for all atoms violating the geometric constraints that we used in Section 1.2 to cut a hexagon from our crystal. Then by applying the psfgen command delatom, violating atoms are deleted. We estimate the radius of the hexagon with the measure minmax command provided by VMD.



cutWaterHex.tcl

# This script will remove water from psf and pdf outside of a
# hexagonal prism along the z-axis.
package require psfgen 1.3

# Input:
set psf pore_solv.psf
set pdb pore_solv.pdb
# Output:
set psfFinal pore_hex.psf
set pdbFinal pore_hex.pdb

# Parameters:
# The radius of the water hexagon is reduced by "radiusMargin"
# from the pore hexagon. The distance is in angstroms.
set radiusMargin 0.5
# This is the stuff that is removed.
set waterText "water or ions"
# This selection forms the basis for the hexagon.
set selText "resname SIN"

# Load the molecule.
mol load psf $psf pdb $pdb

# Find the system dimensions.
set sel [atomselect top $selText]
set minmax [measure minmax $sel]
$sel delete
set size [vecsub [lindex $minmax 1] [lindex $minmax 0]]
foreach {size_x size_y size_z} $size {break}
# This is the hexagon's radius.
if {[expr $size_x > $size_y]} {
     set rad [expr 0.5*$size_x]
} else {
     set rad [expr 0.5*$size_y]
}
set r [expr $rad - $radiusMargin]

# Find water outside of the hexagon.
set sqrt3 [expr sqrt(3.0)]
# Check the middle rectangle.
set check "($waterText) and ((abs(x) < 0.5*$r and abs(y) > 0.5*$sqrt3*$r) or"
# Check the lines forming the nonhorizontal sides.
set check [concat $check "(y > $sqrt3*(x+$r) or y < $sqrt3*(x-$r) or"]
set check [concat $check "y > $sqrt3*($r-x) or y < $sqrt3*(-x-$r)))"]
set w [atomselect top $check]
set violators [lsort -unique [$w get {segname resid}]]
$w delete

# Remove the offending water molecules.
puts "Deleting the offending water molecules..."
resetpsf
readpsf $psf
coordpdb $pdb
foreach waterMol $violators {
     delatom [lindex $waterMol 0] [lindex $waterMol 1]
}

writepsf $psfFinal
writepdb $pdbFinal
mol delete top

7
Enter source cutWaterHex.tcl to remove water outside of the hexagonal boundaries.

8
Open the new structure by entering mol load psf pore_hex.psf pdb pore_hex.pdb. Does the system now conform to a hexagonal prism?

Many biomolecules are sensitive to the ionic strength of the surrounding solvent; therefore, salt is added to the solutions used in experiments to mimic physiological conditions. In addition, ions facilitate measurements of small currents in nanopore systems by substantially increasing the conductivity of the solution.

9
To open the Autoionize plugin, select Extensions $\rightarrow$ Modeling $\rightarrow$ Add Ions from the VMD menu.

10
You should already see pore_hex.psf and pore_hex.pdb in the edit boxes labeled PSF and PDB, respectively. Set Output to pore_all. Since we wish to have a 2 mol/kg KCl concentration, set Concentration to 4. Set both Min. distance from molecule and Min. distance between ions to 2. Also, because we are using a KCl solution instead of NaCl, select the checkbox labeled Switch to KCl instead of NaCl.

11
Execute the Autoionize plugin by pressing Autoionize.

12
For convenience, copy the solvated structure into the directory for the next section by typing cp pore_all.psf ../4_current/ and cp pore_all.pdb ../4_current/.

Measuring ionic current

In experiment, ionic current is a macroscopic quantity that gives insight into nanoscale processes. Ionic current measurements are used to characterize single nanopores and their interactions with biological molecules. In this subsection, we'll learn to simulate our nanopore system with an applied voltage and calculate the ionic current from the trajectory.

1
Enter cd ../4_current/ in the Tk Console to change to the directory for this subsection. Be sure that you have copied the files pore_all.psf and pore_all.pdb into this directory as instructed at the end of the last subsection.

2
First we need to generate the constraint file using the parameters that reproduce the experimental dielectric constant. In the Tk Console, enter
source constrainSilicon.tcl.

3
Now we need to equilibrate our system. We'll start by performing energy minimization. Take a look at the NAMD configuration file eq0.namd in your text editor. The values given for cellBasisVector1 and cellBasisVector2 match those given in ../1_build/membrane_hex.bound. If you used InorganicBuilder to generate the pore, you should replace values with your own. The third basis vector is dependent on the size of the water box we added. To determine it, in the Tk Console window (Extensions $\rightarrow$ Tk Console) type the following commands:

mol delete all
mol load psf pore_all.psf pdb pore_all.pdb
set all [atomselect top all]
set minmax [measure minmax $all]
set lz [expr [lindex $minmax 1 2]-[lindex $minmax 0 2]]
$all delete

The value of lz gives us the size (Å) of the system along the $z$-axis. We don't want to put this value directly into the NAMD configuration file, however.

It is better for a few water molecules to be crowded at the ends at this point than risk introducing a vacuum region at the ends. While the minimization step can easily rearrange water molecules that have been placed too close together due to wrapping at the periodic boundaries, small regions of vacuum can cause inaccuracies in simulations, especially those performed at constant pressure, that can be difficult to catch.

For this reason, we set cellBasisVector3 to lz minus about 5 Å. Since we get about 55.9 Å for lz, line 13 of eq0.namd should read cellBasisVector3 0.0 0.0 51.0.

4
While we have our system open in VMD, let's take a look at it. Select Graphics $\rightarrow$ Representations.... In the Graphical Representations window, set Selected Atoms to resname SIN to see only the \ensuremath{\mathrm{Si_{3}N_{4}}}. Set the drawing method Drawing Method to VDW. Now create a new representation (by pressing Create Rep) with Selected Atoms set to ions. The \ensuremath{\mathrm{K^+}} and \ensuremath{\mathrm{Cl^-}} ions within the pore should be visible. When you are finished examining the system, enter mol delete all in the Tk Console.

5
To perform energy minimization, enter namd2 eq0.namd > eq0.log in the terminal window. This may take a few minutes to execute. During this time you may want to take a look at the next step in the equilibration process eq1.namd. When the minimization completes, check the end of log file eq0.log to be certain that the simulation completed successfully.

NAMD script steps description
eq0.namd 201 energy minimization
eq1.namd 500 raise temperature from 0 to 295 K, constant $V$
eq2.namd 1000 equilibrate, constant $p$ and Langevin thermostat
run0.namd 1000 apply 20 V, constant $V$


The table above summarizes the NAMD runs we will perform in this section. It consists of three equilibration stages and one run with an applied field. Stages such as these are used in most production simulaions.

6
Enter namd2 eq1.namd > eq1.log to gradually raise the system's temperature from 0 K to 295 K at constant volume.

7
Examine the NAMD configuration file eq2.namd in your text editor. Notice the block of commands below the comment # pressure control. These set the parameters for the Langevin piston Nosé-Hoover method implemented in NAMD to maintain atmospheric pressure. Close the text editor and equilibrate the system by entering namd2 eq2.namd > eq2.log.

8
Constant pressure simulations allow the volume of the system to change. As a necessary condition for equilibrium, the volume should fluctuate about a mean value. Select Extensions $\rightarrow$ Analysis $\rightarrow$ NAMD Plot from VMD's menu. In the NAMD Plot window, select File $\rightarrow$ Select NAMD Log File, highlight eq2.log, and press Open. Select for VOLUME for the $y$-axis data. Now, plot the system volume versus time step by selecting File $\rightarrow$ Plot Selected Data. You should notice a significant downward trend in the volume. At equilibrium, the volume fluctuates about a mean value for an $NpT$ system such as this. Hence, we have not equilibrated long enough. Since our time in this tutorial is limited, a system that has been equilibrated for 0.5 ns is included in this directory.

9
We are now ready to apply an electric field and simulate the flow of ionic current. Because the total current is more simply related to voltage than the electric field magnitude, we are going to apply a potential difference of 20 V along the $-z$-axis of our system. The corresponding uniform electric field is calculated by $E_{z} = -U/l_{z}$, where $U$ is the potential difference and $l_{z}$ is the size of the system along the $z$-axis. The NAMD unit for electric field is $\mathrm{kcal/(mol\ \AA\ e)}$; thus, the appropriate conversion factor for $U$ in V and $l_{z}$ in Å is 23.0605492. That is,

\begin{displaymath}\mathtt{eField}_{z}/{\mathrm{ \left(\frac{kcal}{mol\ \AA\ e}\right) }} =
-23.060549 \frac{U/\mathrm{V}}{l_{z}/\mathrm{\AA}}. \end{displaymath}

To obtain the value of $l_{z}$, open the NAMD extended system configuration file sample.xsc in your text editor. Write down c_z, the tenth number in the row of system parameters. Using $V = 20\ \mathrm{V}$ and $l_{z} = -\mathtt{c\_z}\ \AA$, calculate $\mathtt{eField}_{z}$. Note that since the potential difference is applied the along $-z$-axis, $\mathtt{eField}_{z}$ is positive.

10
Now open run0.namd. At the bottom of the file you will see the following lines:

eFieldOn on
eField 0.0 0.0 0.0

Change the third component of eField to the value of $\mathtt{eField}_{z}$ that you calculated. Before you close the run0.namd, note that the pressure control lines are absent. Applying an electric field to a pressure-controlled system will distort it, leading to erroneous results. In addition, note that the Langevin temperature control is only applied to the silicon nitride. Applying Langevin forces to the ions, whose motion due to the electric field we are trying to measure, could lead to a subtle bias in the current.

11
Begin the simulation by entering namd2 run0.namd > run0.log in the terminal window. The simulation may require a couple minutes. Feel free to read ahead while it runs.

12
We are using a very high applied electric field due to the time constraints of this tutorial. If you analyze the temperature of the simulation versus time step using the VMD plugin NAMD Plot (whose use was described during the equilibration phase of this section), you'll see that the temperature rises above 450 K, because of the large ionic current. Such temperatures would render a production simulation invalid. In real simulations, we would be using a much smaller electric field.

Figure 4: Complete silicon nitride nanopore (grey) including water and potassium (red) and chloride (blue) ions.
Image ions

13
Load the VMD save state by selecting File $\rightarrow$ Load State... and then the file current.vmd. Step through your trajectory and you should notice that the \ensuremath{\mathrm{K^+}} ions (in red) move upward, while the \ensuremath{\mathrm{Cl^-}} (in blue) ions move downward. Enter mol delete all in the Tk Console.

14
The parameter dcdFreq is set to 100 in the NAMD configuration file. As you may already know, this means that NAMD writes the coordinates of every atom to a DCD file every 100 simulation steps. To calculate the ionic current, we will execute the Tcl script electricCurrentZ.tcl. It computes the ionic current by

\begin{displaymath}I(t+\Delta t/2) = \frac{1}{\Delta t\,l_{z}}
\sum_{i=1}^{N} q_{i}(z_{i}(t+\Delta t) - z_{i}(t)),\end{displaymath}

where $z_{i}$ and $q_{i}$ are respectively the $z$-coordinate and charge of ion $i$ and $\Delta t$ is the simulation time represented by dcdFreq. Execute the script by entering source electricCurrentZ.tcl.



electricCurrentZ.tcl

# Calculate the current for a trajectory.
# Results are in "time(ns) current(nA)"

set dcdFreq 100
set selText "ions"
set startFrame 0
set timestep 1.0

# Input:
set pdb  sample.pdb
set psf  sample.psf
set dcd  run0.dcd
set xsc run0.restart.xsc
# Output:
set outFile curr_20V.dat

# Get the time change between frames in femtoseconds.
set dt [expr $timestep*$dcdFreq]

# Read the system size from the xsc file.
# Note: This only works for lattice vectors along the axes!
set in [open $xsc r]
foreach line [split [read $in] "\n"] {
     if {![string match "#*" $line]} {
          set param [split $line]
          puts $param
          set lx [lindex $param 1]
          set ly [lindex $param 5]
          set lz [lindex $param 9]
          break
     }
}
puts "NOTE: The system size is $lx $ly $lz.\n"
close $in

# Load the system.
mol load psf $psf pdb $pdb
set sel [atomselect top $selText]

# Load the trajectory.
animate delete all
mol addfile $dcd waitfor all
set nFrames [molinfo top get numframes]
puts [format "Reading %i frames." $nFrames]

# Open the output file.
set out [open $outFile w]
#puts $out "sum of q*v for $psf with trajectory $dcd"
#puts $out "t(ns) I(A)"

for {set i 0} {$i < 1} {incr i} {
     # Get the charge of each atom.
     set q [$sel get charge]

     # Get the position data for the first frame.
     molinfo top set frame $startFrame
     set z0 [$sel get z]
}

# Start at "startFrame" and move forward, computing
# current at each step.
set n 1
for {set f [expr $startFrame+1]} {$f < $nFrames && $n > 0} {incr f} {
     molinfo top set frame $f

     # Get the position data for the current frame.
     set z1 [$sel get z]

     # Find the displacements in the z-direction.
     set dz {}
     foreach r0 $z0 r1 $z1 {
          # Compensate for jumps across the periodic cell.
          set z [expr $r1-$r0]
          if {[expr $z > 0.5*$lz]} {set z [expr $z-$lz]}
          if {[expr $z <-0.5*$lz]} {set z [expr $z+$lz]}

          lappend dz $z
     }

     # Compute the average charge*velocity between the two frames.
     set qvsum [expr [vecdot $dz $q] / $dt]

     # We first scale by the system size to obtain the z-current in e/fs.
     set currentZ [expr $qvsum/$lz]
     # Now we convert to nanoamperes.
     set currentZ [expr $currentZ*1.60217733e5]
     # Get the time in nanoseconds for this frame.
     set t [expr ($f+0.5)*$dt*1.e-6]

     # Write the current.
     puts $out "$t $currentZ"
     puts -nonewline [format "FRAME %i: " $f]
     puts "$t $currentZ"

     # Store the postion data for the next computation.
     set z0 $z1
}
close $out
mol delete top
}

15
The script electricCurrentZ.tcl produces an output file curr_20V.dat, which has two columns that record the time (ns) and the current (nA). Open the file curr_20V.dat in a text editor. Is the current steady? What is its mean value?

\framebox[\textwidth]{
\begin{minipage}[r]{.75\textwidth}
\noindent\small\text...
...s section. How does
the current compare to double-cone pore? }
\end{minipage} }

\fbox{
\begin{minipage}{.2\textwidth}
\end{minipage} \begin{minipage}[r]{.75\te...
... a nanopore can be used to detect
and study single molecules.}
\end{minipage} }


next up previous contents
Next: Simulations of DNA permeation Up: Bionanotechnology Tutorial Previous: Introduction   Contents
www.ks.uiuc.edu/Training/Tutorials
