TclForces

In this unit, you will learn about NAMD's TclForces functionality. Although many user needs were anticipated in the development of NAMD, to anticipate them all specifically would be impossible. TclForces allows users to easily supplement the built-in constraint and force functionality with script-based forces.

Introduction

The basic idea of tclForces is very simple: we provide NAMD with a Tcl script which tells NAMD to apply certain forces to certain atoms. The only special requirement of this script is that it define a command named calcforces. This command is called by NAMD each timestep. Within the script, we can access atomic positions and masses, as well as parameters set in the NAMD configuration file. In this unit, we will see how to use tclForces through four examples of increasing complexity.

Example 1: Constant Forces

For our first exposure to tclForces, we will do one of the simplest thing one could imagine: apply a constant net force to a system.

1

First, let's look at the NAMD configuration file. Go to the directory forces-tutorial-files/tclForcesFiles/push and open the file push.namd. Everything is standard about it until the end, where we see some unfamiliar lines:

tclforces on
set linaccel "30 0 0"
tclforcesscript push.tcl

The first line simply turns tclForces on. The second sets a parameter for the acceleration that we'll use in the script, as we'll soon see. The last line is the name of the script which actually does the work.

2

Now let's look at the script. Open the file push.tcl, in the same directory.

3

First, we select the atoms we're interested in:

set numatoms 1231

set atoms {}
for { set i 1 } { $i <= $numatoms } { incr i } {
lappend atoms $i
}

foreach atom $atoms {
addatom $atom
}

The structure we're using is ubiquitin, the same protein as that used in the VMD and NAMD Tutorials. Here, we're using the protein alone, in vacuum, and so the structure contains just 1231 atoms. We first build a list of the atomic indices (NAMD atom indices, unlike VMD atom indices, start at 1.) For each atom, we then call the addatom command. This tells NAMD that we want access to this atom's coordinates. Forces may be applied to an atom without this call.

4

We next convert from the natural acceleration units Å$\cdot$ps$^{-2}$ to the NAMD units kcal/mol$\cdot$Å$\cdot$amu, and print some information:

set linaccel_namd [vecscale [expr 1.0/418.68] $linaccel]
print "Linear acceleration imparted: ($linaccel) Ang*ps^ -2"

Note that to print messages, we must use the print command, instead of the normal Tcl command puts.

5

The only thing left is the calcforces command:

proc calcforces { } {
global atoms numatoms linaccel_namd
loadcoords coords
loadmasses masses
set comsum "0 0 0"
set totalmass 0
foreach atom $atoms {
set force [vecscale $masses($atom) $linaccel_namd]
addforce $atom $force
set comsum [vecadd $comsum $\backslash$
[vecscale $masses($atom) $coords($atom)]]
set totalmass [expr $totalmass + $masses($atom)]
}
print "Center of mass = [vecscale [expr 1.0/$totalmass] $\backslash$
$comsum]"
}

The first line of the command is very important. It basically imports the variables named, so that they can be accessed in the calcforces command.

Next we call the command loadcoords. This sets the variable coords to a Tcl array of coordinates of the atoms that have been added using addatom. In this case, of course, that is all the atoms of the system. Array elements in Tcl are accessed using parentheses. Similarly, loadmasses retrieves the atomic masses, putting them in an array named masses.

Then we loop through the atoms, applying the specified force to each using the addforce command. Along the way, we also calculate the center of mass of the protein. We see two more Tcl commands in actions here: vecadd and vecscale. These add two vectors and multiply a vector by a scalar, respectively. There is a third vector command, vecsub, which we will see a bit later.

6

Because the system is so small, you can run it on your desktop or laptop without trouble, and see the protein move. Run the file push.namd. With a normal installation, you would do this with the command

namd2 push.namd > push.log

7

After this finishes, we want to see how the protein was affected. We will now use VMD's MultiPlot plugin to view the results. Open the file plot.tcl in your favorite text editor, and change the first line to be the location of the log file you just created, e.g.

set log push.log

if you named the log file push.log. To run the script, either type

vmd -e plot.tcl

from the command line, or open VMD and source the script file in the Tk Console:

source plot.tcl

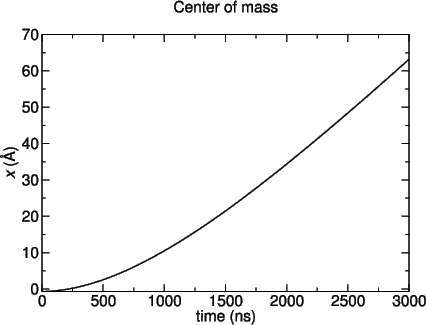

Figure 2: Center of mass position plotted versus time.

8

You should see something like Fig. 2. The beginning of the graph is quadratic, as we expect. However, the velocity saturates at some value because of the Langevin dynamics used in the simulation. Langevin dynamics involve a damping factor, which creates a terminal velocity.

9

Now open the trajectory in VMD. First launch VMD, then open the Tk Console. Make sure you're in the tclForcesFiles directory, then type the command

mol load psf common/ubiquitin.psf dcd push/push.dcd

If you could not produce the trajectory, there is a sample one in the example-output directory. Notice that the Langevin dynamics prevent the protein from moving too quickly.

Example 2: Rotation

We will now add a layer of complexity: we will force atoms differently based on their coordinates. In this example, we will force atoms in such a way that, in addition to a linear force, the protein also rotates about an axis parallel to the z-axis and through the protein's center of mass. Note that this represents a perturbation which cannot be achieved using NAMD's built-in constant force and rotating constraint functionalities.

1

Change to the directory forces-tutorial-files/tclForcesFiles/rot-a.

2

Look at the NAMD configuration file. Open the file rot-a.namd. At the end, we see the following:

tclforces on
set linaccel "30 0 0"
set angaccel 1
tclforcesscript rot-a.tcl

This is very similar to the previous example, but here we provide an additional scalar to describe the angular acceleration.

3

Now let's look at the script itself. Open the file rot-a.tcl. The atom selection part at the beginning is identical to the last case, so we will not repeat the discussion. The next part of the file is again similar, but also processes the angular acceleration, and sets a constant for $\pi$.

set linaccel_namd [vecscale [expr 1.0/418.68] $linaccel]
set angaccel_namd [expr double($angaccel)/418.68]
set PI 3.1415926535898

print "Linear acceleration imparted: ($linaccel) Ang*ps^ -2"
print "Angular acceleration imparted: (0 0 $angaccel) Rad*ps^ -2"

We convert from natural units to NAMD units, just like before. Then we print some informational text using the print command.

4

Now we'll look at the calcforces command. The first part is nearly the same as in the previous example. The differences are the change of one of the global variables, and the fact that we no longer apply forces in the first loop.

proc calcforces { } {
global atoms numatoms linaccel_namd angaccel_namd
global PI

loadcoords coords
loadmasses masses

set comsum "0 0 0"
set totalmass 0
foreach atom $atoms {
set comsum [vecadd $comsum [vecscale $masses($atom) $\backslash$
$coords($atom)]]
set totalmass [expr $totalmass + $masses($atom)]
}
set com [vecscale [expr 1.0/$totalmass] $comsum]
print "Center of mass = $com"

5

The last part of the script is where the real differences lie:

foreach atom $atoms {
set linforce [vecscale $masses($atom) $linaccel_namd]
set r [vecsub $coords($atom) $com]
set x [lindex $r 0]
set y [lindex $r 1]
set rho [expr sqrt(pow($x, 2) + pow($y, 2))]
set phi [expr atan2($y, $x) + $PI/2]

if { $atom == 1 } {
print "atom $atom: phi = $phi"
}

set angdir "[expr cos($phi)] [expr sin($phi)] 0.0"
set angforce [vecscale [expr $masses($atom) * $\backslash$
$angaccel_namd * $rho] $angdir]
set force [vecadd $linforce $angforce]
addforce $atom $force
}
}

The first section above calculates the distance from the rotation axis, rho, and the angle from the x-axis at which the force should be applied, phi ($90^\circ$ from the angle of the position vector, hence the addition of $\pi/2$ radians.) Fig. 3 shows how these variables are related.

Figure 3: Relationships among variables in the script rot-a.tcl

After printing the force angle associated with one atom so we can monitor the rotation, we find a unit vector (i.e. a vector with length one) pointing in the phi direction. We then multiply this by the mass of the atom and its distance from our rotation axis, giving us the correct angular force for the angular acceleration requested in the NAMD configuration file. Finally, we add the linear and angular forces to get the total force.

6

Now run the simulation:

namd2 rot-a.namd > rot-a.log

This should again take just a few minutes.

7

Plot the angle phi by using the script plot.tcl just as you did before (there is a different copy in the current directory.)

You should see something like Fig. 4. Plot the center of mass as well, by opening plot.tcl and changing the var variable to "Center of mass". This can be accomplished by simply commenting the first set var line, and uncommenting the other:

#set var "atom 1: phi"
set var "Center of mass"

Figure 4: Rotation angle plotted versus time.

8

We again see a roughly quadratic time dependence at the beginning of the trajectory give way to a linear one, again a consequence of the Langevin damping.

9

Open the trajectory in VMD. With VMD open, go to the main tclForcesFiles directory, then type the following in the Tk Console:

mol load psf common/ubiquitin.psf dcd rot-a/rot-a.dcd

Challenge: Find the dependence of the terminal linear and angular velocities on the langevinDamping parameter of the simulation, set in the configuration file, as well as the dependence on the applied force.

Example 3: Forcing a Subset of Atoms

This example deals with the important ability to force a subset of your atoms. In practice, you almost never want to apply force to all atoms in the system. In this section, we will apply forces only to the backbone atoms of the protein. We accomplish this by making a special ``target atom'' PDB file, using the beta column to mark the atoms we want to apply force to. In addition, we will use the occupancy column to tell our script the atomic masses, in order to demonstrate how to provide the script with additional information.

1

Change to the directory forces-tutorial-files/tclForcesFiles/rot-b.

2

As usual, we will first examine the NAMD configuration file. Open the file rot-b-short.namd. First, note that we are now using a different system, one in which the ubiquitin has been solvated. This is a more natural environment for the protein, and we can use it now that we are not applying forces to all atoms.

Look at the end of the file, where we set up tclForces. We see a new line:

set targetAtomPdb ../common/ubiquitin_solvate_backbone.pdb

With this line, we specify the aforementioned target atom PDB file. Thus, our first task is to produce that file. We will use a VMD script to accomplish this.

3

Open the file ../makeTargetAtomPdb.tcl. The first section sets a few variables. First, the relevant file names:

set pdb common/ubiquitin_solvate.pdb
set psf common/ubiquitin_solvate.psf
set targetPdb common/ubiquitin_solvate_backbone.pdb

Next, we set the selection text we will use to select our atoms, and the beta value that these atoms will receive:

set selection "protein and backbone"
set targetMark "1.00"

4

Next, we load the structure into VMD, and set both the beta and occupancy columns to zero:

mol load psf $psf pdb $pdb
set all [atomselect top all]
$all set beta 0
$all set occupancy 0

5

Now we make a selection of the target atoms, set their beta and occupancy columns to the appropriate values, and write the output PDB. Note the ease with which the list of masses are used to set the occupancy:

set target [atomselect top $selection]
set masses [$target get mass]
$target set beta $targetMark
$target set occupancy $masses

$all writepdb $targetPdb
exit

6

Now run the script:

vmd -dispdev text -e ../makeTargetAtomPdb.tcl

(Note: For Windows users, open the VMD GUI and source the script file in the Tk Console.)

If you were unable to run the script, copy the file example-output/
ubiquitin_solvate_backbone.pdb into the common directory.

7

Next, take a look at the tclForces script. Open the file rot-b.tcl. Right from the beginning, we notice many differences. It first sets a targetMark variable so that the script can recognize the marks we've set in the target PDB:

set targetMark "1.00"

8

Now we have to process the PDB. There are no built-in routines for accomplishing this, so the following code is quite low-level, but it is conceptually simple. The columns of a PDB file have a fixed character width, so we must simply read each line, and break it into fixed-sized pieces:

set targets {}
set masses {}
set inStream [open $targetAtomPdb r]
foreach line [split [read $inStream] $\backslash$n] {
set string1 [string range $line 0 3]
set string2 [string range $line 6 10]
set string3 [string range $line 17 20]
set string4 [string range $line 12 15]
set string5 [string range $line 46 53]
set string6 [string range $line 72 75]
set string673 [string range $line 73 75]
set string7 [string range $line 22 25]
set string8 [string range $line 62 65]
set string9 [string range $line 55 60]

9

These pieces are then parsed according to the PDB format. We first make sure that this line corresponds to an atom record and not a comment line or some other entry. Then, if the atom has a beta value matching the target value, we form a triple consisting of the atom's segname, resid, and name. This is necessary for finding the index of the atom:

if { ([string equal $string1 {ATOM}] || $\backslash$
[string equal $string1 {HETA}] ) &&
[string equal $targetMark $string8] } {
lappend targets "[string trim $string6] $\backslash$
[string trim $string7] [string trim $string4]"
lappend masses "[string trim $string9]"
}
}
close $inStream

10

The next step is to use the atom triples to find its index, and form a list of these, using the atomindex command. addatom is then called for each of these atoms:

set atoms {}
foreach target $targets {
foreach {segname resid atom} $target { break }
set atomindex [atomid $segname $resid $atom]
lappend atoms $atomindex
addatom $atomindex
}

Notice the third line. This is a common trick in Tcl for succinctly extracting the elements of a list into individual scalar variables.

11

Next we find the number of target atoms. We also set a boolean flag, applyforces, telling the rest of the script whether any atoms have been selected to force, allowing us to skip the calculation code if it's unnecessary:

set numatoms [llength $atoms]
if { $numatoms > 0 } {
set applyforce 1
} else {
print "WARNING: no target atoms have been detected"
set applyforce 0
}

set linaccel_namd [vecscale [expr 1.0/418.68] $linaccel]
set angaccel_namd [expr double($angaccel)/418.68]
set PI 3.1415926535898
print "Linear acceleration imparted: ($linaccel) Ang*ps^ -2"
print "Angular acceleration imparted: (0 0 $angaccel) Rad*ps^ -2"

12

Now we get to the main part of the script, the calcforces definition. It is essentially identical to the last example, except for the test of applyforce:

proc calcforces { } {
global atoms numatoms masses linaccel_namd angaccel_namd
global applyforce
global PI

if { $applyforce } {
loadcoords coords
set comsum "0 0 0"
set totalmass 0
foreach atom $atoms mass $masses {
set comsum [vecadd $comsum [vecscale $mass $coords($atom)]]
set totalmass [expr $totalmass + $mass]
}
set com [vecscale [expr 1.0/$totalmass] $coordsum]
print "Center = $com"

foreach atom $atoms mass $masses {
set linforce [vecscale $mass $linaccel_namd]
set r [vecsub $coords($atom) $com]
set x [lindex $r 0]
set y [lindex $r 1]
set rho [expr sqrt(pow($x, 2) + pow($y, 2))]
set phi [expr atan2($y, $x) + $PI/2]

if { $atom == 1 } {
print "atom $atom: phi = $phi"
}

set angdir "[expr cos($phi)] [expr sin($phi)] 0.0"
set angforce [vecscale [expr $angaccel_namd * $rho * $\backslash$
$mass] $angdir]
set force [vecadd $linforce $angforce]
addforce $atom $force
}
}
}

13

Now run the simulation, just as you have in previous examples:

namd2 rot-b-short.namd > rot-b-short.log

If you have access to a cluster, run it on the cluster--refer to local instructions for how this is done. This simulation will run for just 100 steps, so that the benchmark times are printed. In the next section, we will see how to improve this performance.

If you are interested, examine the files rot-b-long.log and rot-b-long.dcd in the example-output directory, which were produced with a slightly longer simulation. When loading the trajectory in VMD, use the PSF common/ubiquitin_solvate.psf

Example 4: Improving Efficiency

In most cases, it's unnecessary to recalculate the force values applied at each time step. Depending on the situation, one may be able to recalculate every 1000 steps, saving a lot of computational effort and therefore increasing the speed of the simulation. In this section, we will see how to do that.

1

Change to the directory forces-tutorial-files/tclForcesFiles/rot-c.

2

Open the NAMD configuration file, rot-c-short.namd. The new line this time is

set forcesRecalcFreq 10

As its name implies, this parameter sets how often our forces will be recalculated.

3

Now open the script rot-c.tcl. The first differences start at line 58:

set forces {}
foreach index $atoms {
lappend forces "0.0 0.0 0.0"
}

set forcecount $forcesRecalcFreq
set printcount 0

We first set up a forces list. This is the variable which holds the values of the forces we will apply to the atoms. We also set up some counter variables: forcecount and printcount are both incremented each timestep. When forcecount equals forcesRecalcFreq, the forces are recalculated, and forcecount is reset to zero; otherwise, the forces are not recalculated.

4

Now we begin the calcforces command. First, as usual, we declare our global variables. We then apply the forces that are saved in the forces list.

proc calcforces { } {
global atoms numatoms forcemult masses avgmass forces
global applyforce forcesRecalcFreq
global forcecount printcount
global PI

if { $applyforce } {
foreach atom $atoms force $forces {
addforce $atom $force
}

5

Next, we test whether the forces will be recalculated next timestep, and if so, tell NAMD that we will want atomic coordinates for the target atoms by calling addatom:

if { $forcecount == [expr $forcesRecalcFreq - 1] } {
print "Adding atoms prior to reconfiguring forces at $\backslash$
$printcount"
foreach atom $atoms {
addatom $atom
}
}

As we will see shortly, we call clearconfig after the forces are recalculated. This call erases all addatom records; without it, the coordinates of the atoms added will be available every timestep, independently of whether we call loadcoords, and therefore much of the potential speed gain will be lost. However, this means that addatom must be called again each time we want to recalculate forces, and because of technical details it has to be done at least one step before the coordinates will be used.

6

Next we have the code that recalculates the force. As alluded to above, the recalculation happens when forcecount equals forcesRecalcFreq. The rest of the force calculation code is identical to the code we had in the last example, except that instead of calling addforce with each force vector, we now put the vector in the forces list variable:

if { $forcecount == $forcesRecalcFreq } {
print "Recalculating forces at $printcount"

loadcoords coords
set comsum "0 0 0"
set totalmass 0
foreach atom $atoms mass $masses {
set comsum [vecadd $comsum [vecscale $mass $coords($atom)]]
set totalmass [expr $totalmass + $mass]
}
set com [vecscale [expr 1.0/$totalmass] $comsum]
print "Center of mass = $com"

set forces {}
foreach atom $atoms mass $masses {
set linforce [vecscale $mass $linaccel_namd]
set r [vecsub $coords($atom) $com]
set x [lindex $r 0]
set y [lindex $r 1]
set rho [expr sqrt(pow($x, 2) + pow($y, 2))]
set phi [expr atan2($y, $x) + $PI/2]

if { $atom == 1 } {
print "atom $atom: phi = $phi"
}

set angdir "[expr cos($phi)] [expr sin($phi)] 0.0"
set angforce [vecscale [expr $angaccel_namd * $rho * $\backslash$
$mass] $angdir]
set force [vecadd $linforce $angforce]
lappend forces $force
}

7

Finally, we print some information, call clearconfig, and reset forcecount.

print "Step ${printcount}: Recalculated $\backslash$
[llength $forces] forces"
set forcecount 0
clearconfig
}
incr forcecount
}
incr printcount
return
}

8

Now run the simulation:

namd2 rot-c-short.namd > rot-c-short.log

Again, this is a short simulation, running 100 steps, just long enough for benchmark timing information to be printed. Compare the speed of this simulation to the last. There should be a significant difference--comparing the example files rot-b-short.log and rot-c-short.log, which were run on just a single CPU, there is nearly a 15% speed increase. As the size of the system and the number of CPUs increase, applying tclForces efficiently becomes even more important: comparing rot-c-long.log with rot-b-long.log, both run on 20 processors, rot-c is almost 60% faster!

Once again, there are sample output files, rot-c-long.dcd and rot-c-long.log in the example-output directory, and should again be loaded together with the PSF file common/ubiquitin_solvate.psf.

Challenge: Take the provided file kcsa_closed.pdb, and use the partial structure kcsa_open.pdb as a target to open the channel using tclForces.

You now know the basics of tclForces. In the next section, you will learn about a similar feature of NAMD called tclBC, which is suitable for different circumstances.
