Trajectories, Macros and Labels

In unit 3, you will learn how to load trajectories, create macros, place labels on atoms and bonds, and calculate the RMSD of a trajectory using a simple tcl scripts. At the end, you should determine if the ubiquitin system is equilibrated by looking at RMSD plots.

Loading trajectories

You will now learn to load the time evolving coordinates of a system, called trajectories. You will be able to see a movie of your system.

Trajectory files are normally binary files that contain several sets of coordinates for the system. Each set of coordinates corresponds to one frame in time. An example of a trajectory file is a DCD file. The trajectory files do not contain information of the system contained in the protein structure files (PSF). So we first need to load the parameter file, and then add the trajectory data to this file, as explained in Unit 2.

1: Start a new VMD session.

2: Load the PSF file of the system ubiquitin.psf, as done in Unit 2.

3: In the Molecule File Browser window, click on the Browse button. Make sure that ubiquitin.psf is selected on the menu. Browse for pulling.dcd in vmd-tutorial-files, click OK, and click on the Load button again. You will be able to see the frames as they are loaded into the molecule.

4: After the trajectory finishes loading, you will be will be looking at the last frame of your trajectory. To go to the beginning of the trajectory, you will use one of the Animation Tools that will be explained extensively later in the tutorial. In the Main menu, click on the button in the lower left.

5: Choose Graphics $\rightarrow$ Representations menu item. In Drawing Method, select NewCartoon, and in the Selected Atoms window, type protein.

6: In the same menu item, create another representation by clicking on the Create Rep button. In Drawing Method, choose Lines, and in the Selected Atoms window, type water. For now, turn off this representation by double-clicking on it.

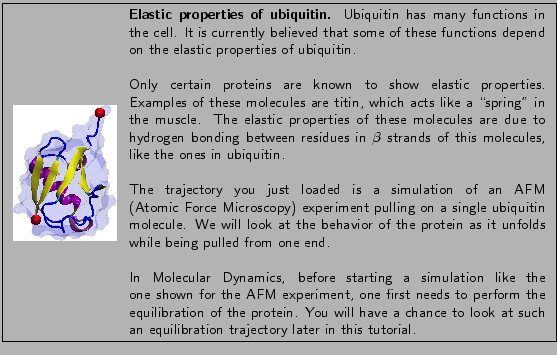

$\fbox{ \begin{minipage}{.2\textwidth} \includegraphics[width=2.3 cm]{pictures/... ... at such an equilibration trajectory later in this tutorial. } \end{minipage} }$

In the next section, you will learn how to create representations with a useful feature called macros. Once you create some representations relevant to this trajectory, the following section will teach you how to use the Animation Tools to look at trajectories.

Macros

You will now create similar representations to the ones you generated in Unit 1. While creating these representations, you will learn macros. A macro is text that represents a selection. It is useful to create macros when you use certain selections often. Macros are created with the atomselect command you learned in unit 2.

$\framebox[0.9\textwidth]{ \par \begin{tabular}{ll} {\tt atomselect macro }... ...e} {\it selection} & -- creates a macro for {\it selection} \end{tabular} }$

Ubiquitin has a mixed $\beta$ sheet with five strands. The $\beta$ sheet play a major role in the unfolding of the protein. To create a macro for these strands:

1: Open the Tk Console window by choosing the Main $\rightarrow$ Extensions $\rightarrow$ Tk Console.

2

In the Tk Console window, type:

atomselect macro bstrand1 {protein and resid 2 to 6 }

This will create a macro for the first $\beta$ strand, which includes residues 2 to 6.

For the other strands, you will find out which residues belong to them by using the sequence viewer introduced in Unit 1, and then create similar macros:

3: Make sure you are in the first frame of the trajectory, as STRIDE (the program that calculates secondary structure in VMD) will determine the structure on that frame.

4: Choose the Extensions $\rightarrow$ Analysis $\rightarrow$ Sequence Viewer menu item.

As you learned in Unit 1, the second color column corresponds to structural features of the protein. The sections in yellow correspond to the $\beta$ strands.

5: With the mouse, click and drag to highlight the second $\beta$ strand. This action will create a representation in the Graphical Representations window.

6: In the Graphical Representations window, click on the new representation. The text corresponding to the selection is displayed on the Selected Atoms window. You should have ( chain U and resid 12 13 14 15 16 ).

7

Use this text to create a new macro by typing in the Tk Console:

atomselect macro bstrand2 { chain U and resid 12 to 16 }

This will create a macro called bstrand2 that will contain residues 12 to 16 of chain U, which corresponds to the protein.

8: Note that the sequence viewer extension locates five $\beta$ strands. You have created macros for the first two; create similar macros for the other three $\beta$ strands using the sequence extension as done for bstrand2.

Once a macro is created, you can refer to it both in the Tk Console, and in the Representations selections.

Macros you have created and other macros that come with VMD can be seen in the Selections tab of the Graphical Representations window. The macros are listed in the Singlewords window. Clicking on a macro will show its definition in the Macro Definition window. Double-clicking on it will select it and put its definition on the Selected Atoms form.

9: Delete the representation created by the sequence viewer.

You will now create a representation with the third and fifth $\beta$ strands:

10: In the Graphics $\rightarrow$ Representations menu item, click on the Create Rep button.

11: In the Selected Atoms window, erase the text that appears there.

12: Click in the Selections tab. Browse in the Singlewords form until you find your newly created macros.

13: Double-click on bstrand3, click the button or and then double-click on bstrand5 (Fig. 17). Then, click on the Apply button.

14: In the Draw Style tab, choose a NewCartoon representation for this selection and color it yellow. You should now see the $\beta$ sheet.

15: Now, create a similar representation with the other three $\beta$ strands. Do this by clicking on the Create Rep button. Now, in the Selected Atoms form, type: bstrand1 or bstrand2 or bstrand4. Typing them directly works too!

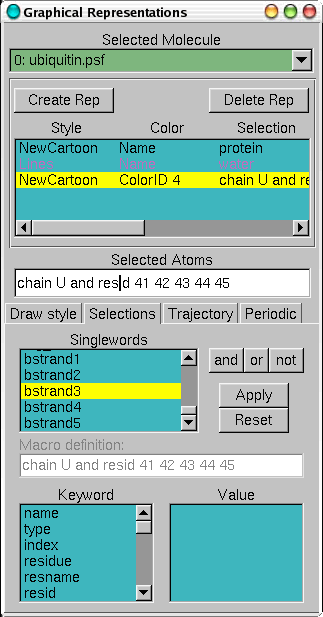

**Figure 17:** Macros are listed in the Selections tab of the Graphical Representations Menu.
$\begin{figure}\begin{center} \includegraphics[scale=0.5]{pictures/tut_macros_guib} \end{center} \end{figure}$

As you can see, macros can be very useful. When saving your work in a saved state, macros are included in the saved state file.

$\framebox[\textwidth]{ \begin{minipage}{.2\textwidth} \includegraphics[width=2... ...tion of the VMD startup files, refer to the VMD user's guide.} \end{minipage} }$

To finish this section, you will create a very interesting representation, that shows a key feature of the trajectory we are looking at. This is an H-bonds representation.

$\fbox{ \begin{minipage}{.2\textwidth} \includegraphics[width=2.3 cm]{pictures/... ...der mechanical stress confers them their elastic properties. } \end{minipage} }$

16: Create a representation with the selection betasheet and backbone, choose Drawing Method $\rightarrow$ Hbonds, and color it red selecting Coloring Method $\rightarrow$ Color ID. In the options, set Distance Cutoff to 3.2, Angle Cutoff to 30 and Line Thickness to 5.

You can now appreciate the most important features of ubiquitin for this unfolding trajectory. Your protein should now look similar to the one in Fig. 18.

17: Save a VMD state of this session, so if you want to come back and keep on working in this tutorial, you don't have to work through those representations again. Do this with the File $\rightarrow$ Save State... menu item, as done in Unit 1.

$\framebox[\textwidth]{ \begin{minipage}{.2\textwidth} \includegraphics[width=2... ... File~$\rightarrow$~Load Data Into Molecule}. \end{itemize} } \end{minipage} }$

**Figure 18:** Ubiquitin with key secondary structure features highlighted
$\begin{figure}\begin{center} \par \par \latex{ \includegraphics[scale=0.5]{pictures/tut_traj_niceb} } \end{center} \end{figure}$

Main Menu Animation Tools

Now that you have nice representations, you will be able to observe features of your trajectory. The Animation Tools help you do that. The Main Menu includes all the Animation Tools you need for navigating through your trajectories. They are located at the bottom of the Menu (Fig. 19).

1: Try using the button to jump to the end of the trajectory and go back to the beginning with the button. You can see the final and initial states of the trajectory, that correspond to the unfolded and folded states of the protein.

**Figure 19:** Animation Tools
$\begin{figure}\begin{center} \par \par \latex{ \includegraphics[scale=0.5]{pictures/tut_animate} } \end{center} \end{figure}$

2: Turn on again the water representation. Go to the VMD Main window and choose Graphics $\rightarrow$ Representations menu item. Double-clicking on the representation with the text water will turn it on.

You can click on the slider and drag it back and forth to navigate through your trajectory. You can stop at anytime you want, or go at the speed you need. This is helpful when you are looking at a trajectory and want to spot the time when something interesting happens.

3: Using the slider, observe the behavior of the water around the protein at the beginning of the trajectory.

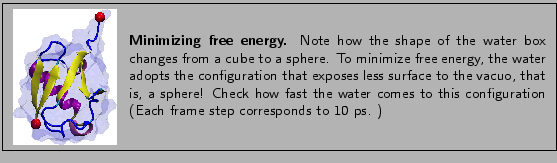

$\fbox{ \begin{minipage}{.2\textwidth} \includegraphics[width=2.3 cm]{pictures/... ...o this configuration (Each frame step corresponds to 10 ps. )} \end{minipage} }$

4: Now, remove the Water Representation from the Graphical Representations window by double clicking on it to be able to give the protein a closer look. Slide through the trajectory to look at the protein unfold. Do you notice any features?

$\fbox{ \begin{minipage}{.2\textwidth} \includegraphics[width=2.3 cm]{pictures/... ... talk some more about the relevance of this phenomenon later.} \end{minipage} }$

On the lower part of the Animation tools, you will find all the tools necessary to play an animation without using the slider. This is done with the Play buttons, that go forward and backward.

5: Play the trajectory backward. Do you think this is the way the protein would fold in nature?

There are two ways to change the speed of your animation. You can adjust the speed of the play using the Speed Slider. You can also adjust the step size. This is done using the Step Window. If this step is set to 3, the animation will show every 3rd frame, so it will make it faster.

6: Set the step to 5, and play the trajectory. Note that it plays faster, but it also looks less smooth than before. However, this can come handy if you are looking at long trajectories.

$\framebox[\textwidth]{ \begin{minipage}{.2\textwidth} \includegraphics[width=2... ...ter than clicking on the {\sf Start} and {\sf End} buttons.} \end{minipage} }$

You can also jump to a frame in your trajectory, by entering the frame number in the window at the left of the Animation Tools.

$% latex2html id marker 5693 \framebox[\textwidth]{ \begin{minipage}{.2\textwid... ... {\tt mol ssrecalc top} in the Tk Console, while in frame 28.} \end{minipage} }$

NOTE: The Animation Tools you learned cycle through the frames of the Top molecule, but apply to all Active molecules.

Labels

In VMD, you can place labels to get information on a particular selection. We will now make use of those labels for fun and profit. Labels are selected with the mouse. In this example, we will cover labels that can be placed on atoms and bonds, although angle and dihedral labeling are also possible.

1: Choose the Mouse $\rightarrow$ Labels $\rightarrow$ Atoms menu item. The mouse is now set to ``Display Label for Atom'' mode. You can now click on any atom on your molecule and a label will be placed into this atom. Clicking again on it will erase the label.

We will now try the same for bonds.

2: Choose the Mouse $\rightarrow$ Label $\rightarrow$ Bonds menu item. This selects the ``Display Label for Bond'' mode.

You will make a VDW Representation for the $\alpha$ carbon of Lysine 48 and of the C terminus. In the pulling simulation, the former is kept fixed, and the latter is pulled at constant force of 500 pN.

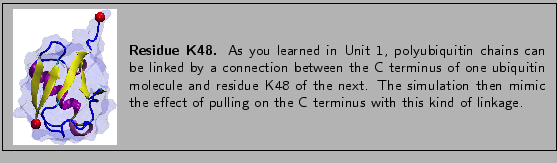

$\fbox{ \begin{minipage}{.2\textwidth} \includegraphics[width=2.3 cm]{pictures/... ...ffect of pulling on the C terminus with this kind of linkage.} \end{minipage} }$

To find out the index of these atoms:

3: Make a selection including these two atoms, by typing in the Tk Console:
set sel [atomselect top "resid 48 76 and name CA"]

4: Get the indices:
$sel get index

This command should give the indices 770 1242.

$\framebox[\textwidth]{ \begin{minipage}{.2\textwidth} \includegraphics[width=2... ... keywords, such as residue, are consistent with the PDB file.} \end{minipage} }$

5: Create a VDW Representation with selection index 770 1242.

6: Now that you can see them, click on both atoms (one after the other). You should get a line connecting the two atoms. The number appearing next to the line is the distance between the two atoms in angstroms (Fig. 20).

**Figure 20:** Bond selection of fixed and pulled atom in simulation. Both atoms selected display labels in black. The bond is shown in blue, with the value of the distance between the atoms in angstroms displayed.
$\begin{figure}\begin{center} \par \par \latex{ \includegraphics[scale=0.5]{pictures/tut_bond_distb} } \end{center} \end{figure}$

The value of the distance corresponds to the current frame.

$\framebox[\textwidth]{ \begin{minipage}{.2\textwidth} \includegraphics[width=2... ...Open GL display window is active when using these shortcuts. } \end{minipage} }$

7: There are more things you can do with labels, in the Graphics $\rightarrow$ Labels menu item. In the left side of the window (Fig. 21), there is a pull-down menu where you can choose the type of label (Atoms, Bonds, Angles, Dihedrals). For now, keep it in Atoms. You can see the list of atoms for which you made a label.

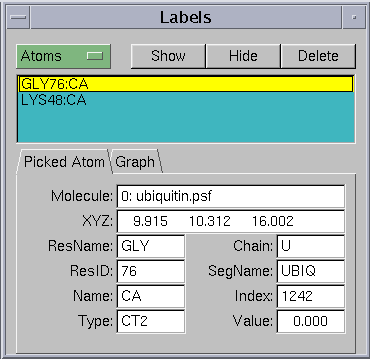

**Figure 21:** Label window.
$\begin{figure}\begin{center} \par \par \latex{ \includegraphics[scale=0.5]{pictures/tut_label_window} } \end{center} \end{figure}$

8: Click on one of the atoms. You can see all the information of the atom displayed. You can delete, hide, or show the label by clicking on these buttons.

Note that this information is useful to make selections. The information about the atom corresponds to the current frame, and is updated as the frame is changed.

9: Now, in the Label window, choose the label type Bonds, and select the bond you labeled. Note that the information given corresponds to only the first atom in the bond, but the number in the Value field corresponds to the length of the bond in angstroms. Click on the Graph tab. Select the bond you labeled between atoms 770 and 1242. Click on the Graph button. This will create the plot of the distance between these two atoms over time. You can also save this data to a file by clicking on the Save button.

$\framebox[\textwidth]{ \begin{minipage}{.2\textwidth} \includegraphics[width=2... ...nt. Make sure X11 is running in order for xmgrace to start. } \end{minipage} }$

10: You can now close xmgrace.

**Figure 22:** Label window Plot of selected bond over time created with the Graph button.
$\begin{figure}\begin{center} \par \par \latex{ \includegraphics[scale=0.5]{pictures/tut_bond_plot} } \end{center} \end{figure}$

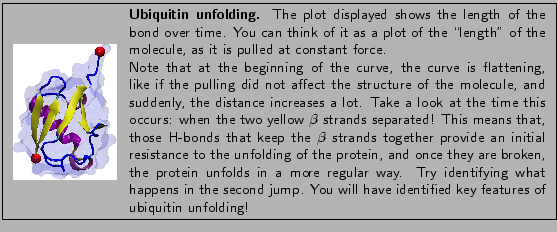

$\fbox{ \begin{minipage}{.2\textwidth} \includegraphics[width=2.3 cm]{pictures/... ...You will have identified key features of ubiquitin unfolding!} \end{minipage} }$

An Example Tcl Script: Calculating the RMSD of a trajectory

VMD is a powerful tool for MD analysis. In this section you will use tcl scripts to perform analysis of trajectories. You will load a new trajectory, the equilibration of the ubiquitin system. You will use a short script to calculate the RMSD of the protein during the MD run, and determine if the system is equilibrated and ready to simulate.

$\fbox{ \begin{minipage}{.2\textwidth} \includegraphics[width=2.3 cm]{pictures/... ...ng two molecules, like in Unit 2, $t$\ labels the molecules).} \end{minipage} }$

1: Delete the current trajectory. Select the only molecule by clicking it on the Main window. Go to Molecule $\rightarrow$ Delete Frames.... The default values on this window will delete the whole trajectory. Click on the Delete button.

2: Load the equilibration trajectory into the psf file by going to the File $\rightarrow$ Load Data Into Molecule. The file is equilibration.dcd.

3: Turn on the water representation and take a look at the trajectory with the Animation tools that you learned before.

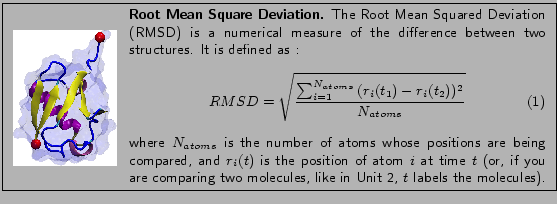

$\fbox{ \begin{minipage}{.2\textwidth} \includegraphics[width=2.3 cm]{pictures/... ...f the water box decreases to obtain the right water density. } \end{minipage} }$

Now you will find out how to determine if the protein is equilibrated. One important factor to determine this is looking at the RMSD of a protein in a trajectory.

4

The script we are going to use is called rmsd.tcl. This is the script content:

set outfile [open rmsd.dat w]

set nf [molinfo top get numframes]

set frame0 [atomselect top "protein and backbone and noh" frame 0]

set sel [atomselect top "protein and backbone and noh"]

set all [atomselect top all]

# rmsd calculation loop

for { set i 1 } { $i <= $nf } { incr i } {

$sel frame $i

$all frame $i

$all move [measure fit $sel $frame0]

puts $outfile "[measure rmsd $sel $frame0]"

close $outfile

5

The script does the following:

Open file rmsd.dat for writing

set outfile [open rmsd.dat w]
Get the number of frames in the trajectory and assign this value to the variable nf

set nf [molinfo top get numframes]
Select the first frame of the molecule to be the one other frames will compare to. The selection contains the atoms in the backbone of the protein, excluding hydrogens:

set frame0 [atomselect top "protein and backbone and noh" frame 0]
Make the same selection as before for an undetermined frame.

set sel [atomselect top "protein and backbone and noh"]
Make a selection with all atoms.

set all [atomselect top all]
Text after # denotes comment.

# rmsd calculation loop
Loop over all frames in the trajectory:

for { set i 1 } { $i <= $nf } { incr i } {
Change the selection $sel to the frame to be compared. (Note that the content of the selection must be identical in every frame, otherwise a $sel update command needs to be added)

$sel frame $i
Change the selection $all to the current frame.

$all frame $i
Calculate the matrix that will fit both selections. Apply this matrix to the second selection to align the molecules:

$all move [measure fit $sel $frame0]
Calculate the RMSD value between these two selections, and write it to file:

puts $outfile "[measure rmsd $sel $frame0]"

You can use the script for the system to test for equilibration.

6: Type source rmsd.tcl in the Tk Console. This will perform all the commands in the script. The script will write a file rmsd.dat that will contain the value of the RMSD of the protein backbone against time.

Outside of VMD, you can use some plotting program to see this data. Examples of these are gnuplot, xmgrace, excel, Mathematica.

7: Use one of the above programs to plot the file rmsd.dat (For example, in Unix, you can type xmgrace rmsd.dat in a terminal). Can you see the RMSD curve flattening? This means your system is equilibrated!

$% latex2html id marker 6057 \framebox[\textwidth]{ \begin{minipage}{.2\textwid... ... according to their RMSD similarly that in Unit \ref{unit2}.} \end{minipage} }$

This ends the VMD tutorial. We hope that you learned a lot with it, and that you will make a great use of all the capabilities VMD has to offer.
