Aligning the molecules

Now that we have opened MultiSeq and made sure the STAMP parameters are correct, we can align the four molecules loaded into VMD.

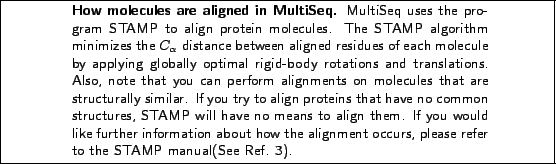

$\framebox[\textwidth]{ \begin{minipage}{.2\textwidth} \includegraphics[width=2... ...gnment occurs, please refer to the STAMP manual(See Ref. 3). } \end{minipage} }$

To align the molecules:

1 In the main MultiSeq window go to the top pull-down menu and select Alignment.

2 Then select Run Structural Alignment.

**Figure 6:** Structural alignment showing superposed AARSs.

Once this step is completed, you will be able to view the aligned molecule in the OpenGL Display window.
