Protein Structure
In order to better understand the structural conservation between
aligned
molecules, certain tools involving the coloring of

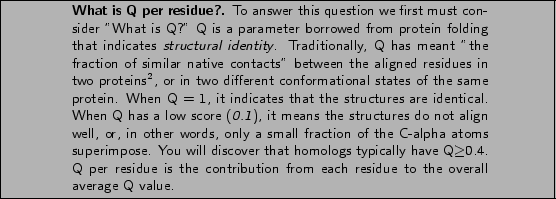

molecules are used within MultiSeq. In particular, Q per residue
measures structure conservation. Structure conservation occurs when the
structures between aligned proteins are similar.
Q per residue, is accessed by:
- 1 Click on the View menu on the MultiSeq window.
- 2 Select Molecule Coloring.
Figure 7:
Molecule Coloring
|
When you select Molecule Coloring another side menu should
appear with
the following options: Q per residue and Sequence Identity
per residue.
Select Q per residue to visualize structural conservation.
Look at the OpenGL Display window to see the impact this selection has
made on the molecules.
Figure 8:
Structure Conservation
|
You will probably notice that several portions within the interior of
the
aligned molecules have turned blue. Rotate the molecule to see how much
of it has turned blue. The blue areas indicate that the molecules are

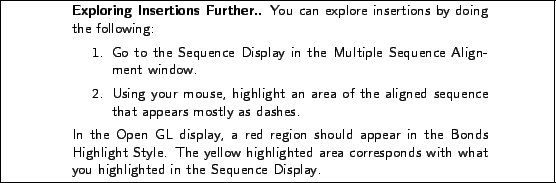

structurally conserved at those points. The red regions are not
structurally conserved, and these correspond to insertions, which are
typically found on the
periphery of the molecule as shown in Figure 7 of O'Donoghue et al.
